Solution:
Basic course G3/Upgrade course

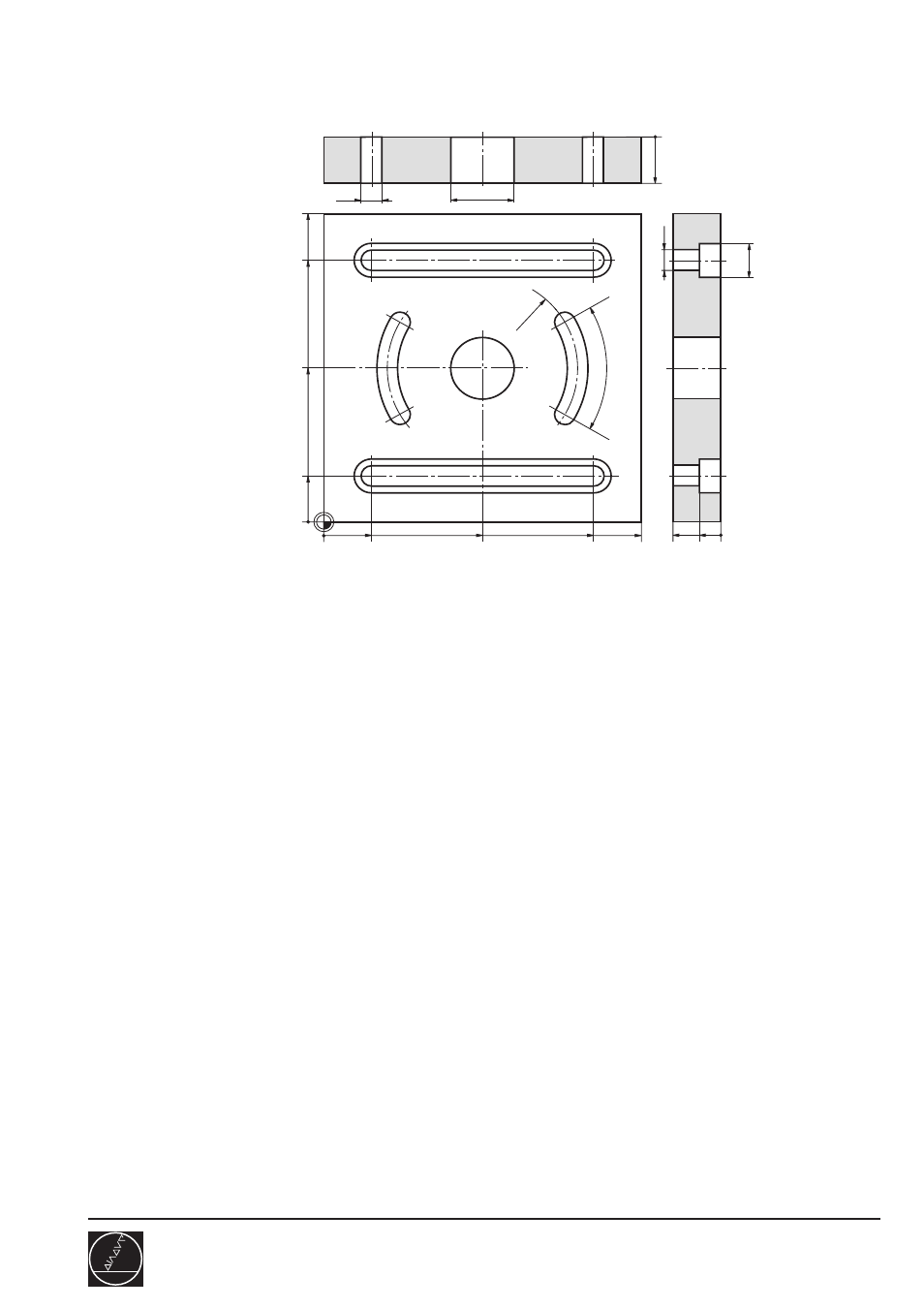

Bushing plate
262/3
D02
100
100
0
0
15
0
15
6,8
50 85
15
85
50
60°
R30
6,6
11
15
0
6,5 20 +0,05
Complete program
0 BEGIN PGM 262 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-15
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 6 Z S1500 DR+0,5 ................................ R3
4 L Z+100 R0 F9999
5 L X+50 Y+50 M3
6 CYCL DEF 5.0 CIRCULAR POCKET
7 CYCL DEF 5.1 SET UP2
8 CYCL DEF 5.2 DEPTH -15
9 CYCL DEF 5.3 PECKG 5 F100
10 CYCL DEF 5.4 RADIUS 10
11 CYCL DEF 5.5 F200 DR+
12 L Z+2 M99
13 CYCL DEF 210 SLOT RECIP. PLNG
Q200=2 ..................................................................... SET UP CLEARANCE
Q201=-6 .................................................................... DEPTH
Q207=200 ................................................................. FEEDRATE FOR MILNG
Q202=6 ..................................................................... PLUNGING DEPTH
Q215=0 ..................................................................... MACHINING OPERATION
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=20 ................................................................... 2ND SET UP CLEARANCE
Q216=+50 ................................................................. CENTER IN 1ST AXIS
Q217=+15 ................................................................. CENTER IN 2ND AXIS
Q218=81 ................................................................... FIRST SIDE LENGTH
Q219=11 ................................................................... SECOND SIDE LENGTH
Q224=+0 ................................................................... ANGLE OF ROTATION
14 CYCL CALL
15 FN 0: Q217 = +85
16 CYCL CALL
17 L Z+100 M6
