Basic course G3/Upgrade course

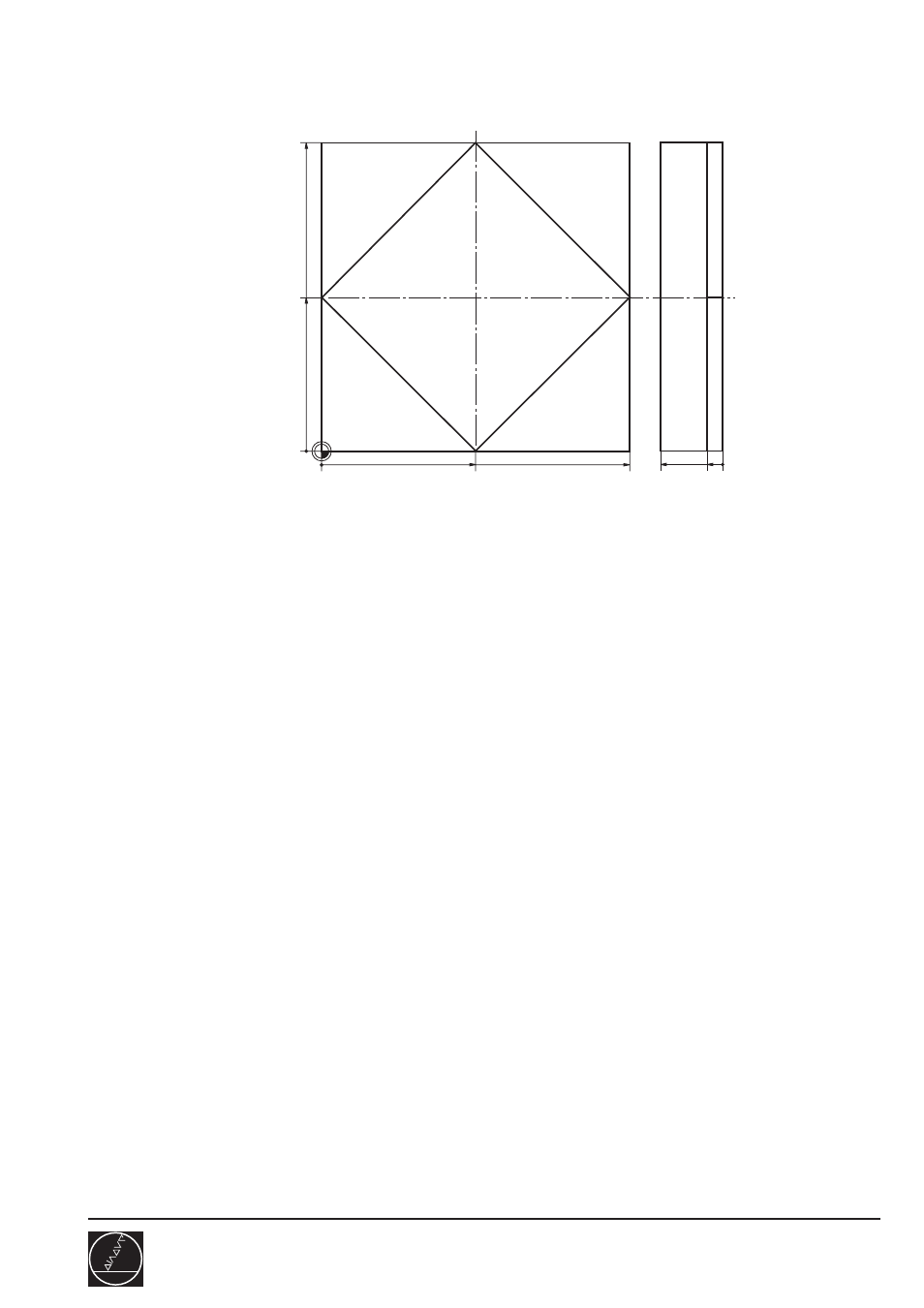

Solution: Square
Complete program
152/2
C01
100
100
0
50
0
50
20
0 5
0 BEGIN PGM 152 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0 ............................ WORKPIECE BLANK DEFINITION
3 TOOL DEF 1 L+0 R+8 ............................................... DEFINE TOOL
4 TOOL CALL 1 Z S4000 ............................................. CALL TOOL DATA
5 L Z+100 R0 F MAX ................................................... CLEARANCE HEIGHT
6 L X-30 Y+50 R0 F MAX ............................................ AUXILIARY POINT (R0)
7 L Z-5 R0 F MAX M3 ................................................. PLUNGING DEPTH
8 L X+0 Y+50 RL F400 ................................................ CONTOUR START. POINT (RL/RR)
9 L X+50 Y+100
10 L X+100 Y+50
11 L X+50 Y+0
12 L X+0 Y+50 RL ......................................................... LAST CONTOUR POINT
13 L X-30 R0 F MAX M5 ............................................... AUXILIARY POINT
14 L Z+100 R0 F MAX M2 ............................................ RETRACT TOOL/PGM END
15 END PGM 152 MM
