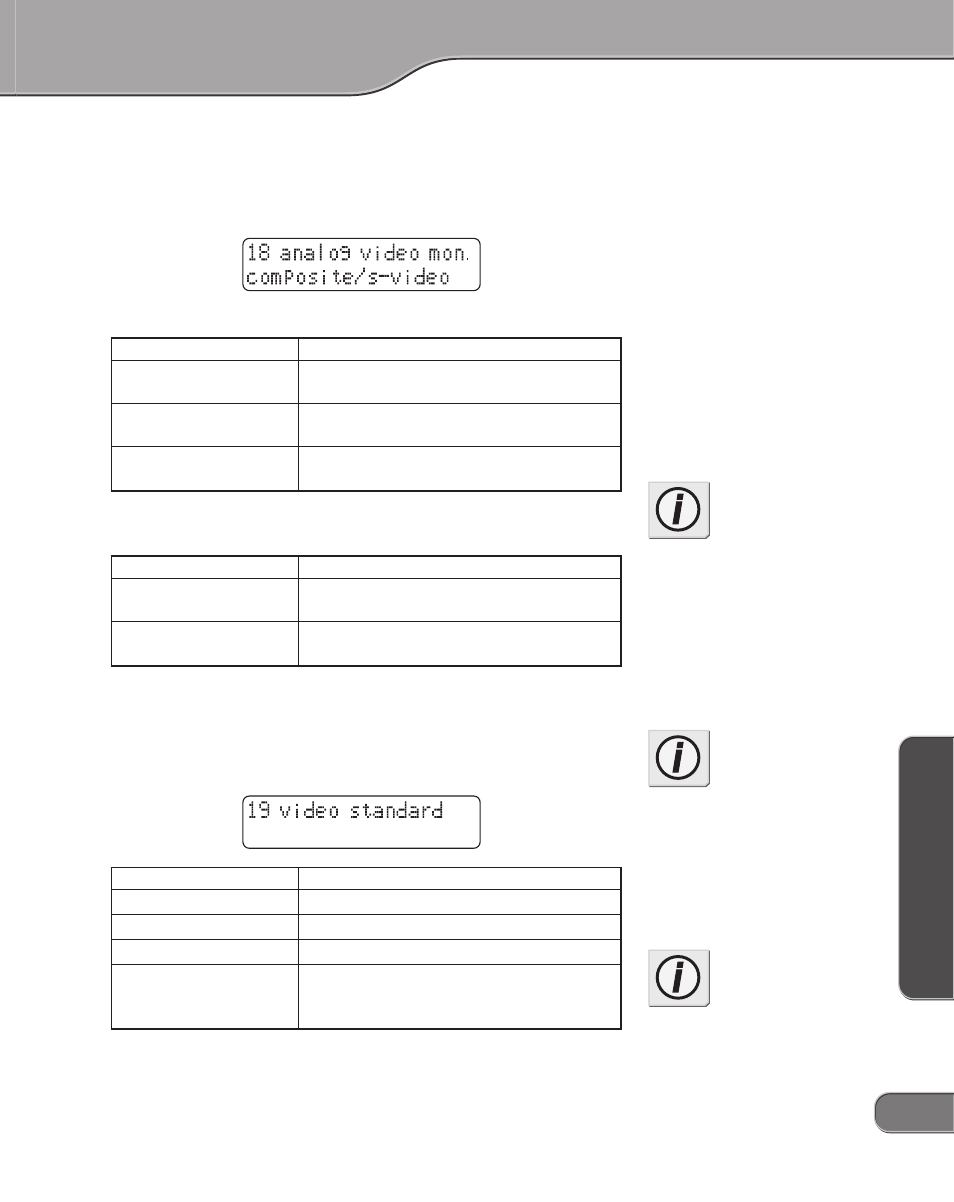

18 analog video mon.
Sets the type of the signal output from the analog monitor video
out connector.
LCD Display
For NTSC
Setting Description
composite/ s-video Outputs Composite signal and S-video
signal. (Factory default)
component (Betacam) Outputs Component signal with the signal
level of the Betacam.
component (SMPTE) Outputs Component signal with the signal
level compliant to SMPTE.
For PAL
Setting Description
composite/s-video Outputs Composite signal and S-video
signal. (Factory default)
component (EBU) Outputs Component signal with the signal
level compliant to EBU.
19 video standard
This item contains a sub-menu letting you select the video
standard.
LCD Display
Setting Description
NTSC(525)/0 IRE Sets to NTSC with the setup level of 0 IRE.
NTSC(525)/7.5 IRE Sets to NTSC with the setup level of 7.5 IRE.
PAL(625) Sets to PAL.
Set by DIP switch Adopts the DIP switch settings specified by
SW4 and SW3.
(Factory default)
Info
See the "Outputting component
signals (p. 33) on how to connect
ADVC-1000 to output component
signal.
Info
Once you have changed the video
standard settings (or the setup
level) , you need to turn the power
off to make the new setting take
effect.
Info
When the SW4 is set to "on", the
video standard is always set to
PAL. To utilize this setting menu,
the DIP switch SW4 must be set
to "off".
