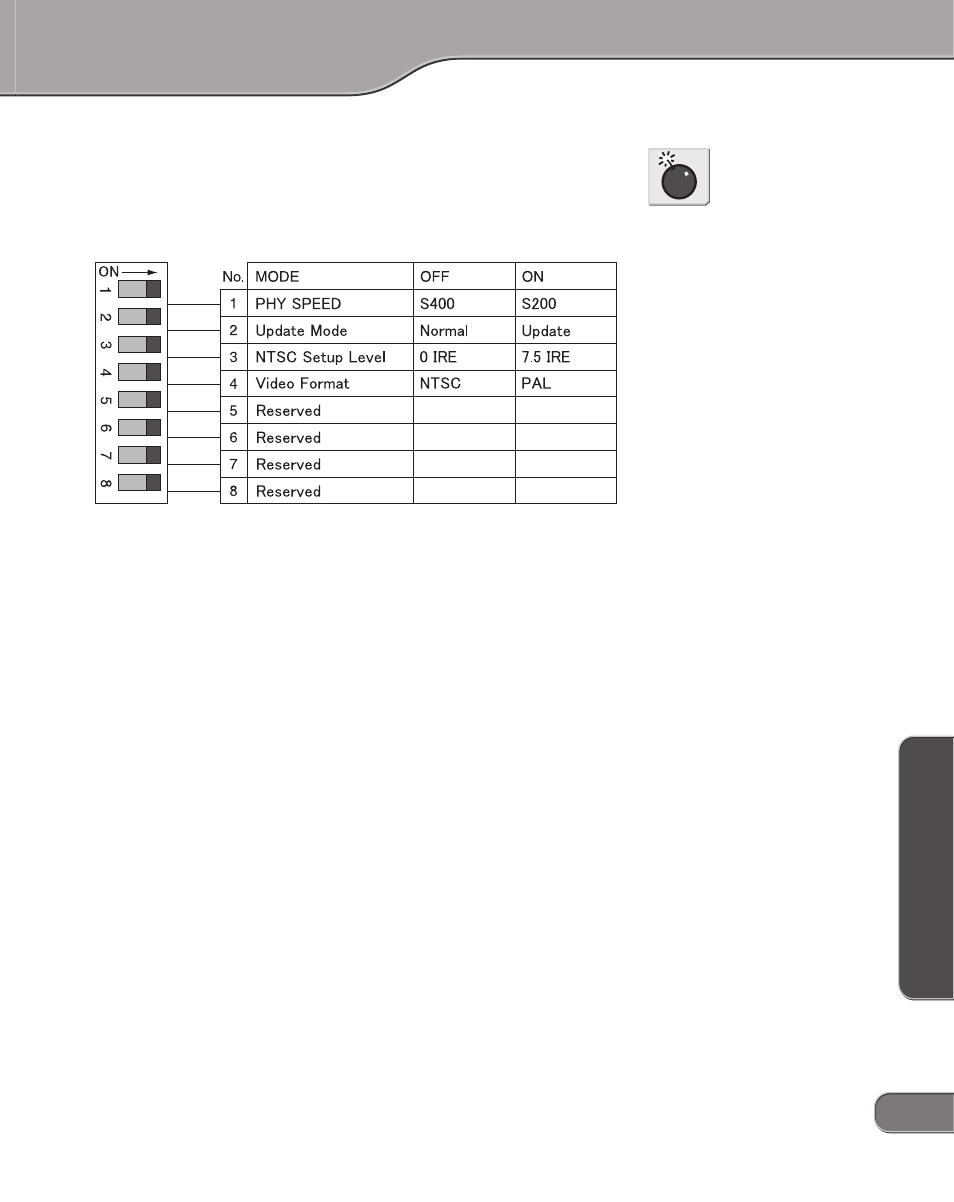

DIP switch settings
Allow you to set various modes. SW3, SW4 may differ depending on
your point of purchase.
SW1: PHY Speed
Designates the PHY speed.
* If the setting menu "66 data rate cap." is set to "S400", please DO
NOT turn this switch to ON. (See p.31)
OFF: S400 ON: S200
SW2: Update Mode
Used to update the internal software. (Set this switch to the off
position for normal operations.)
OFF: Normal
ON: Update
SW3: NTSC Setup Level
Designates the black (setup) level. Enabled only when the video
format (standard) is NTSC.
* This switch is ignored, unless the menu option "19 video standard
(see p.23)" is set to "set by DIP switch".
OFF: 0 IRE (Japan) ON: 7.5 IRE (North America)
SW4: Video Format
Designates the video signal format.
* The settings in the menu option "19 video standard (see p.23)" is
adopted when this switch is set to OFF.
OFF: NTSC ON: PAL
SW5: Reserved
Not used. (Set this switch to the off position for normal operations.)
SW6: Reserved
Not used. (Set this switch to the off position for normal operations.)
SW7: Reserved
Not used. (Set this switch to the off position for normal operations.)
SW8: Reserved
Not used. (Set this switch to the off position for normal operations.)
CAUTION
Make sure to turn off the power
of the ADVC-1000 unit before
making any changes for DIP
switch settings.
DIP switches 5, 6, 7 and 8 should
be set to OFF.
