8985FSP/FS — Instruction Manual 63
Configuration
Video Out Web Page
Use
this
link
Use the Video Out web page ( Figure 32 ) to enable or disable the SFP Fiber
Optic submodule outputs when present and disable EDH insertion if
desired.
Note Fiber optic outputs will be present when either a Dual Transmitter or Trans-
ceiver Fiber Optic submodule is installed.
Output Enables
This section provides the following for the video output signal:
• Fiber TX1 – check the Enabled checkbox to enable the output (Dual Trans-
mitter SFP submodule installed).
• Fiber TX2 – check the Enabled checkbox to enable the output (Transceiver
or Dual Transmitter SFP submodule installed).

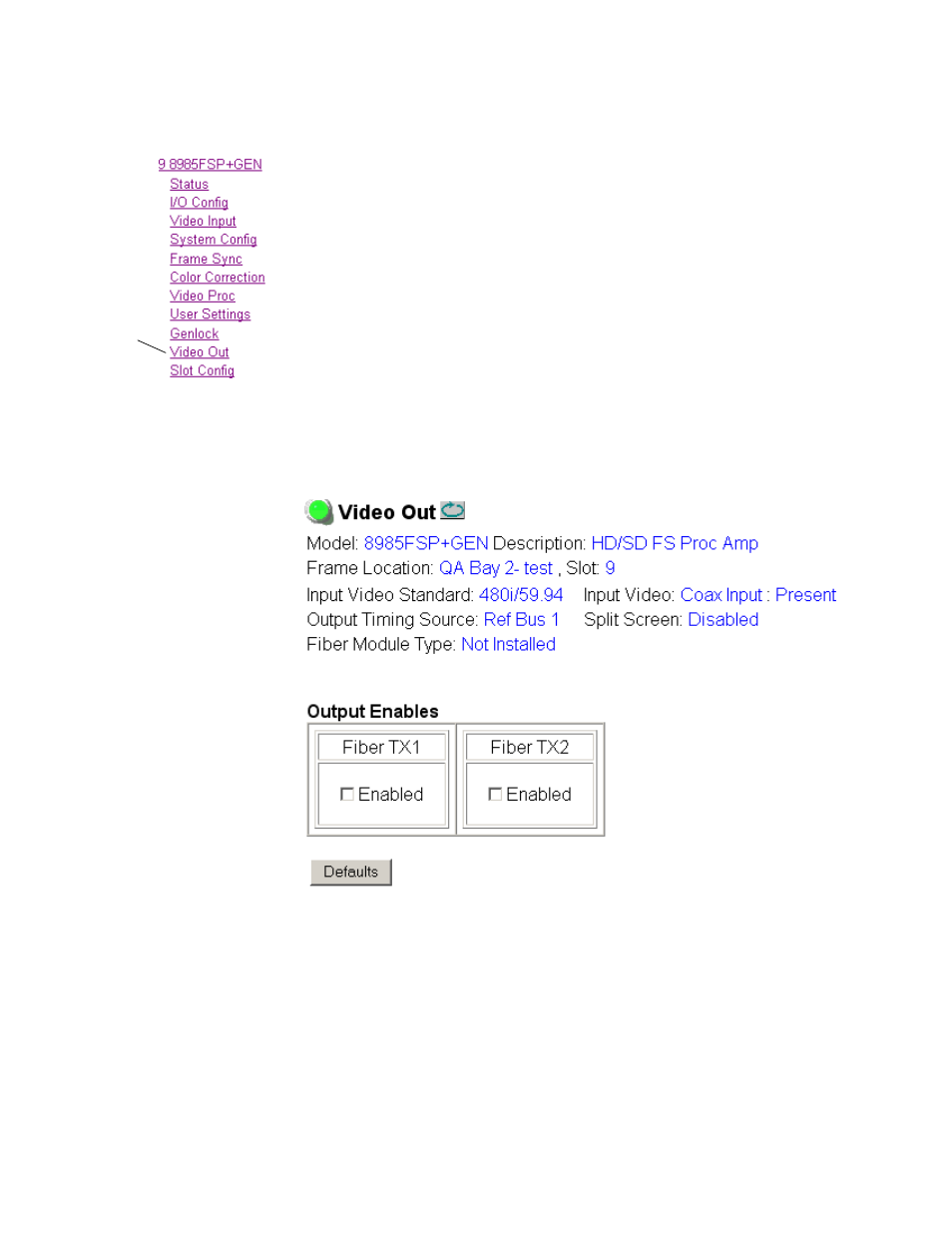

Figure 32. Video Out Web Page
