8 2031RDA-SM/-MM Instruction Manual
Installation
Installation
Installation of the 2031RDA-SM/-MM module is a process of:
• Placing the module in a rear frame slot, and
• Cabling signal ports.
The 2031RDA-SM/-MM module can be plugged in and removed from a
Kameleon 2000 Series frame with power on. When power is applied to the
module, LED indicators reflect the initialization process (see
Power Up on
page 11 ).
Module Placement in the Kameleon Frame
There are twelve slot locations in the both the front and rear of a 3 RU frame
and four slot locations in a 1 RU frame to accommodate 2000 and Kameleon
Series media modules (audio/video signal handling modules).
The 2031RDA-SM/-MM rear module plugs into any one of the rear slots of
the Kameleon 2000 frame.
To install a 2031RDA-SM/-MM rear module in a 2000 Series frame:
1. Locate a vacant slot in the rear of the 3 RU frame ( Figure 1 ) or the
2000T1DNG frame ( Figure 2 on page 9 ).

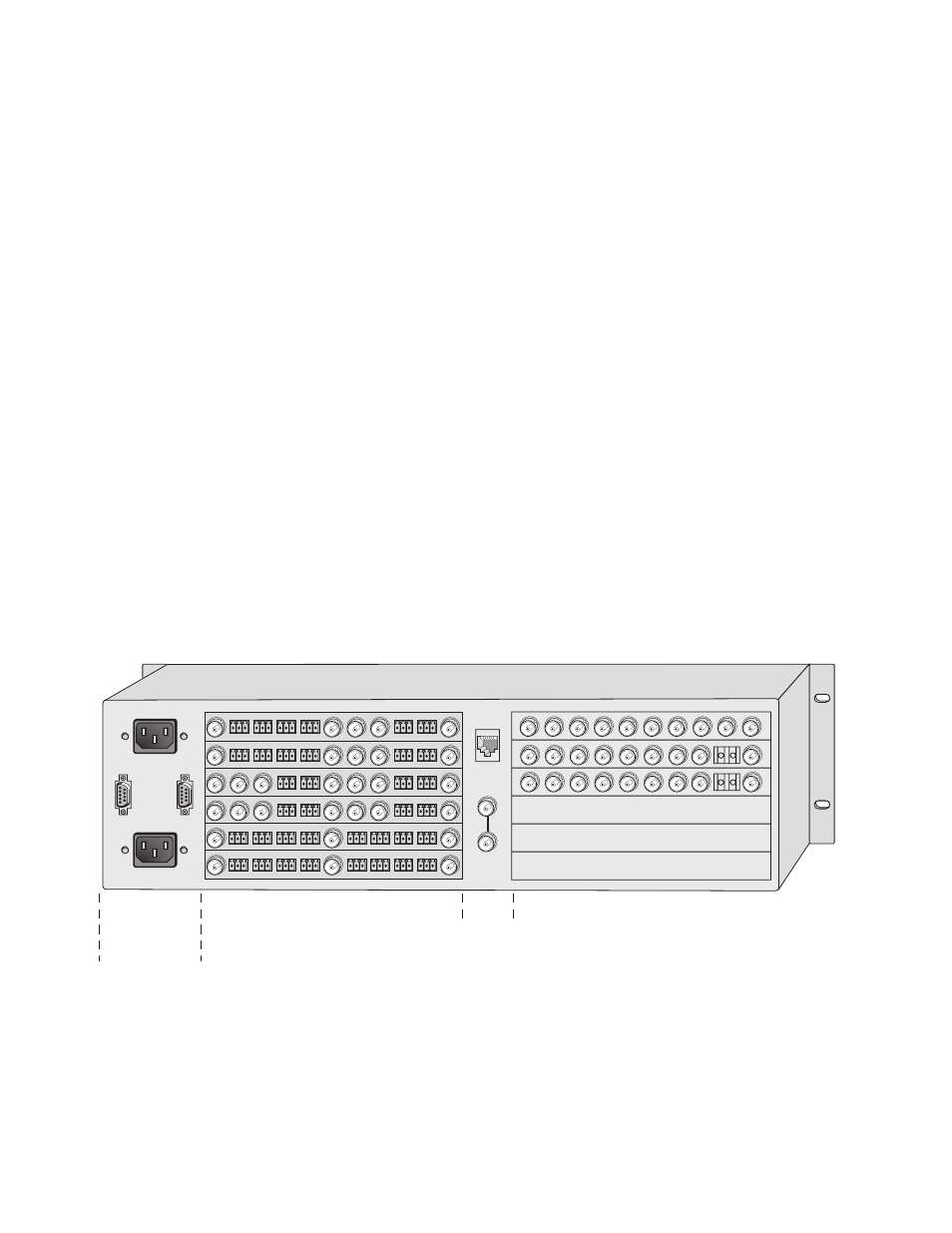

Figure 1. 2000T3NG Frame, Rear View
Media section
rear slots 1-6
(with three 2000EMI blanks)
Media section
rear slots 7-12
Network
and reference
input connections
Power, frame
configuration,
& frame health
connections
8318_08
