2000NET Instruction Manual 83
2000NET Software Update From FTP Server
b. Select PROGRAMS , then INTERNET TOOLS , and click on Xitami Web Server
– 32 bit console ( Figure 57 on page 82 ).
The Xitami Console will open as a DOS window. There will be a log
of events, at least one of which will indicate it is accepting connec-
tions (see
Figure 58 ).

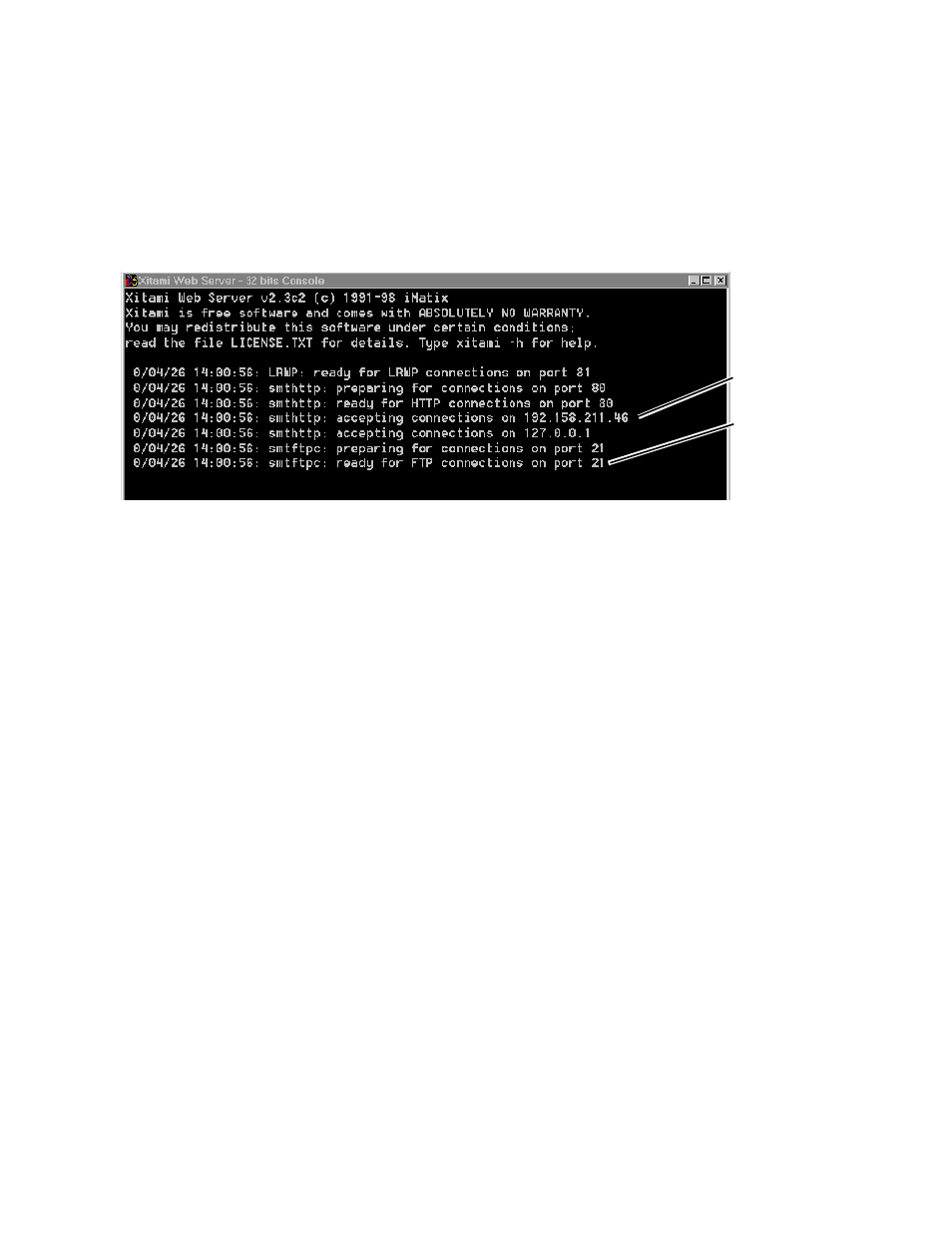

Figure 58. Typical FTPD Console Screen
The IP Address line should actually indicate the IP address of the
PC you are using for the FTP server. This is the IP Address that will
be used to initiate the software update.
The line that verifies that the FTPD is running reads:
ready for FTP connections on port 21
Example: Actual
IP Address will be
the one assigned to
your FTP Server PC.
Ready message verifies
the FTPD is running.
