∇ VCA
The network cameras provide basic and advanced VCA(Video Content Analysis) functions
depend on models. The basic VCA has ”Line Detector” and ”Field Detector,” and the ad-
vances VCA has additional ’Absent” detection and Tracking functions.

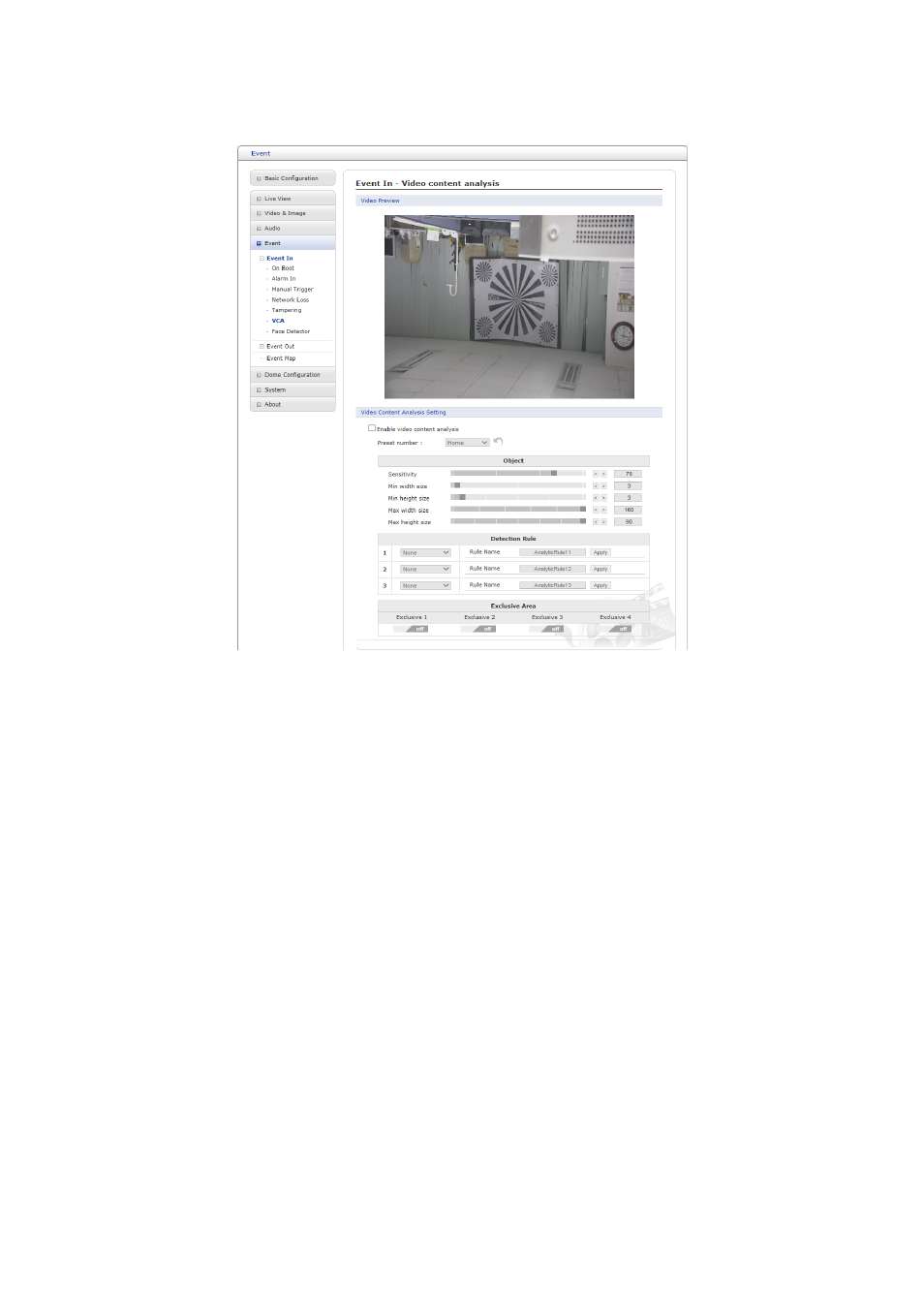

• Video Content Analysis Setting
Check Enable video content analysis box to use a VCA function.
– Preset number: User can assign different rules for each preset position. Select
the preset position to set the VCA rules.
– Object: Determines detection sensitivity.
∗ Sensitivity: As the value becomes bigger, the detection sensitivity increases.
∗ Min width size: Minimum horizontal pixel size for detections in a 1920x1080
format.
∗ Min height size: fMinimum vertical pixel size for detections in a 1920x1080
format.
∗ Max width size: Maximum horizontal pixel size for detections in a 1920x1080
format.
∗ Max height size: Maximum vertical pixel size for detections in a 1920x1080
format.
42
