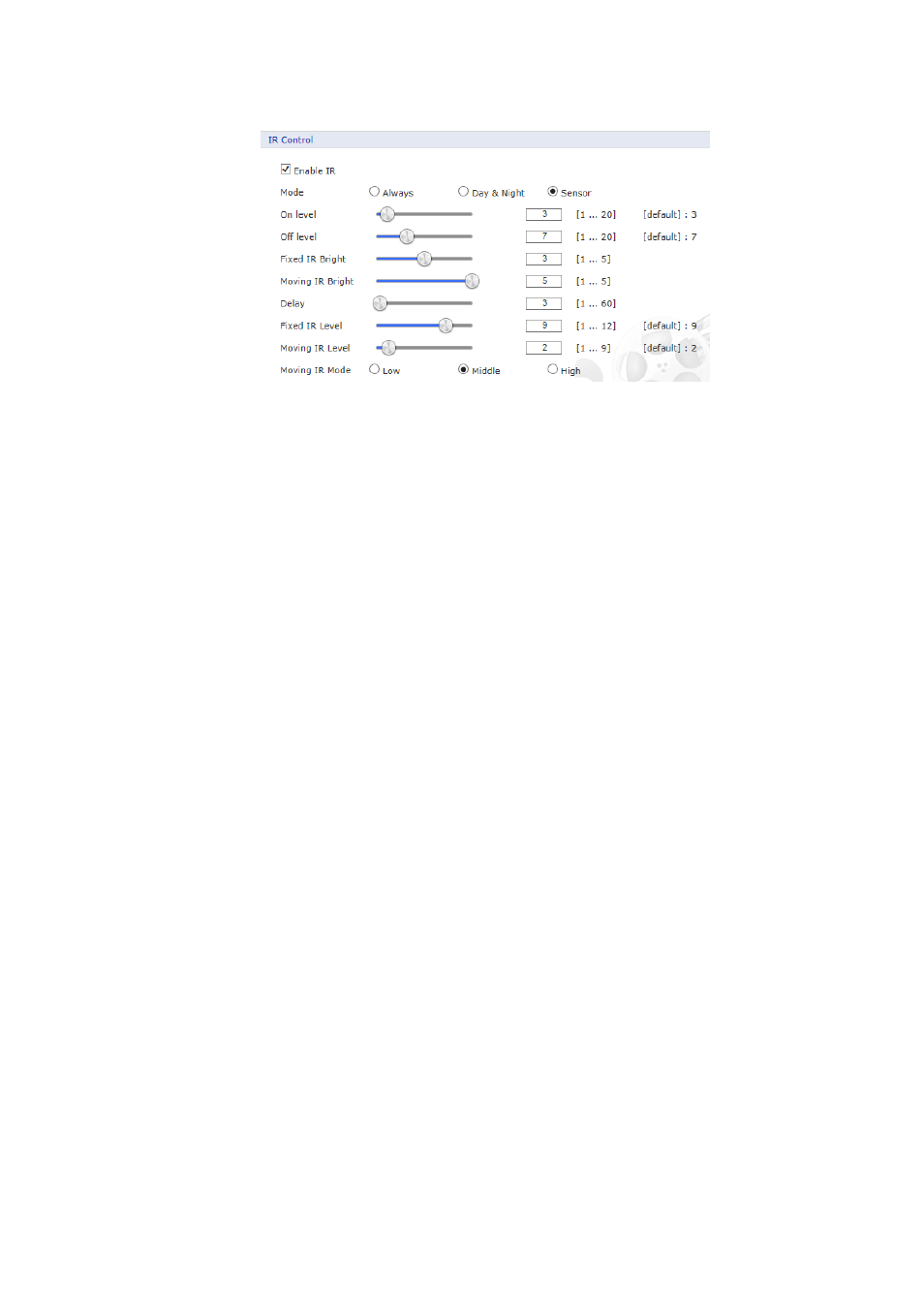

• IR Control
This camera is equipped with fixed and moving IR illuminators. The moving IR illumi-
nator is synchronized with optical zoom. User can setup IR illuminator related controls
in this part.
– Enable IR: If the box is unchecked, the IR illuminators are off, otherwise the
following controls are applied.
– Mode:
∗ Always: Activates the IR illuminators. Always displays black & white image.
∗ Day & Night: Synchronizes the IR illuminator with Day & Night mode of the
camera. Set the Day & Night mode so that the product uses the IR illuminator
in the night but does not use the illuminator during the day.
∗ SENSOR: It will be syncronized with the built-in brightness sensor of the cam-
era. The IR mode will be controlled according to the illumination.
– On level: Specify the illumination level that activates the IR mode. If the illumina-
tion is below the specified level, the indicator will turn on. (1 ∼ 20)
– Off level: Specify the illumination level that deactivates the IR mode. If the illumi-
nation is above the specified level, the indicator will turn off. (1 ∼ 20)
– Fixed IR Bright: Specify the brightness of the Fixed IR illuminator. (1 ∼ 5)
– Moving IR Bright: Specify the brightness of the Moving IR illuminator. (1 ∼ 5)
– Delay: The time duration for both of the lighting conditions can be customized to
let the IR illuminators divert between activation and deactivation. (1 ∼ 60)
– Fixed IR Level: Fixed IR illuminator automatically turns off at specified level in
zoom-in operation. This specifies the Fixed IR illuminator off level. (1 ∼ 12)
– Moving IR Level: Moving IR illuminator automatically turns off at specified level
in zoom-out operation. This specifies the Moving IR illuminator off level. (1 ∼ 9)
– Moving IR Mode: This decide the moving IR illuminator size in the image. If the
size is small, the illumination is focused and bright in center but the edge area
become dark.
Note1: On level, Off level, and Delay are activated at Sensor Mode only.
Note2: User can either use slide bar or type in number for items in any controls.
NOTE: The change in this page immediately affects video stream.
