Optical Distance
Multi-Mode:
Up to 50 meters with Type OM1
Up to 350 meters with Type OM2
Up to 750 meters with Type OM3
Up to 1000 meters with Type OM4
Single Mode: Up to 80km with Type OS2 9/125 for all distances
Supply Voltage 100-240 VAC, 47-63 Hz, Universal AC power supply
Operating Temp
and Humidity
0° to 50°C (32° to 122 °F), 5% to 95% RH, non-condensing
Compliance Approvals for US, Canada, and European Union
Warranty
12 months from date of purchase. Extended warranties
available.
4.8 Status Indicator LEDs
The LED Status Indicators on the Q-Series modules are provided as troubleshooting aides in diagnosing
and resolving technical problems so that a technician can easily assess the status of the module.
The LEDs on most devices monitor the status of the fibers at L1-L4 and are labeled as such. The
functions of the fiber LEDs are described on page 25.
4.8.1. Scaler Receiver Status LEDs

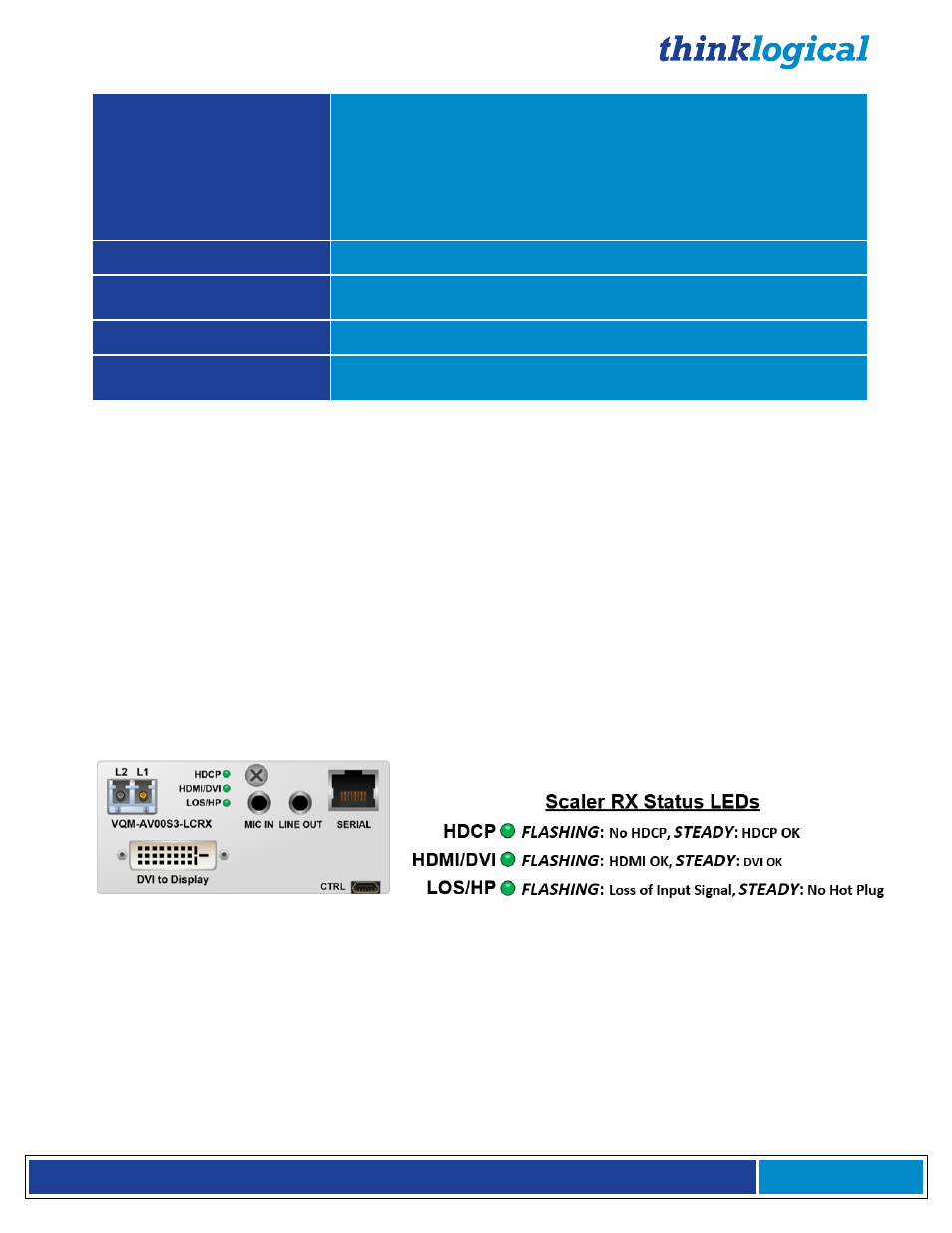

The LEDs on the Scaler Receiver indicate whether the device is receiving HDCP, HDMI or DVI video
signals and if the unit detects an input signal or Hot Plug
(a monitor’s output signal that lets the video
source know if a new monitor has been connected so it can read the DDC table). The Scaler Receiver
LED functions are described below.
