Q - S e r i e s V i d e o M o d u l e s P r o d u c t M a n u a l , R e v . I Page 12
4. The Q-Series Video Modules
This section lists the various DVI and RGB/DVI Modules designed to work with the Q- Series
Video and Audio Extension System. Supported video formats include DVI and RGB/DVI single-
link and dual-link and a line of HDCP compliant models. Models are also available with Audio
(AV+, AH), Network (AN+, NH) and video format scaler options. See page 23 for audio
specifications and page 52, Appendix F: EDID and DDC for Standard and HDCP Modules.
4.1 Single-Link and Dual-Link DVI & RGB/DVI Modules:
VQM-3, VQM-3R, VQM-3AV+, VQM-3RAV+, VQM-3AN+ & VQM-3RAN+ module features:

Supports all Single-Link DVI video resolutions

MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI

Signal transmission via fiber optic cable; no RF interference

Requires one or two fiber optic cables depending on application

Flawless image quality with no frame dropping

Local video port on the transmitter

Additional video output on the receiver

Redundant Fiber Path (VQM-00R003 models only)

Audio and RS-232 serial port (on AV + models only)

Audio and Network port (on AN + models only)

DDC2B/EDID compliant

Simple plug and play
VQM-3V, VQM-3V AV+ and VQM-3V AN+ module features:

Up to 8 independent Single-Link DVI video signals can be extended in 1 RU

Supports all Single-Link DVI video resolutions

Two DVI-D signals can be extended with one module

MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI

Signal transmission via fiber optic cable; no RF interference

Requires two or four fiber optic cables depending on application

Flawless image quality with no frame dropping

Audio and RS-232 serial ports (on AV + models only)

Audio and Network ports (on AN + models only)

DDC2B/EDID compliant

Simple plug and play

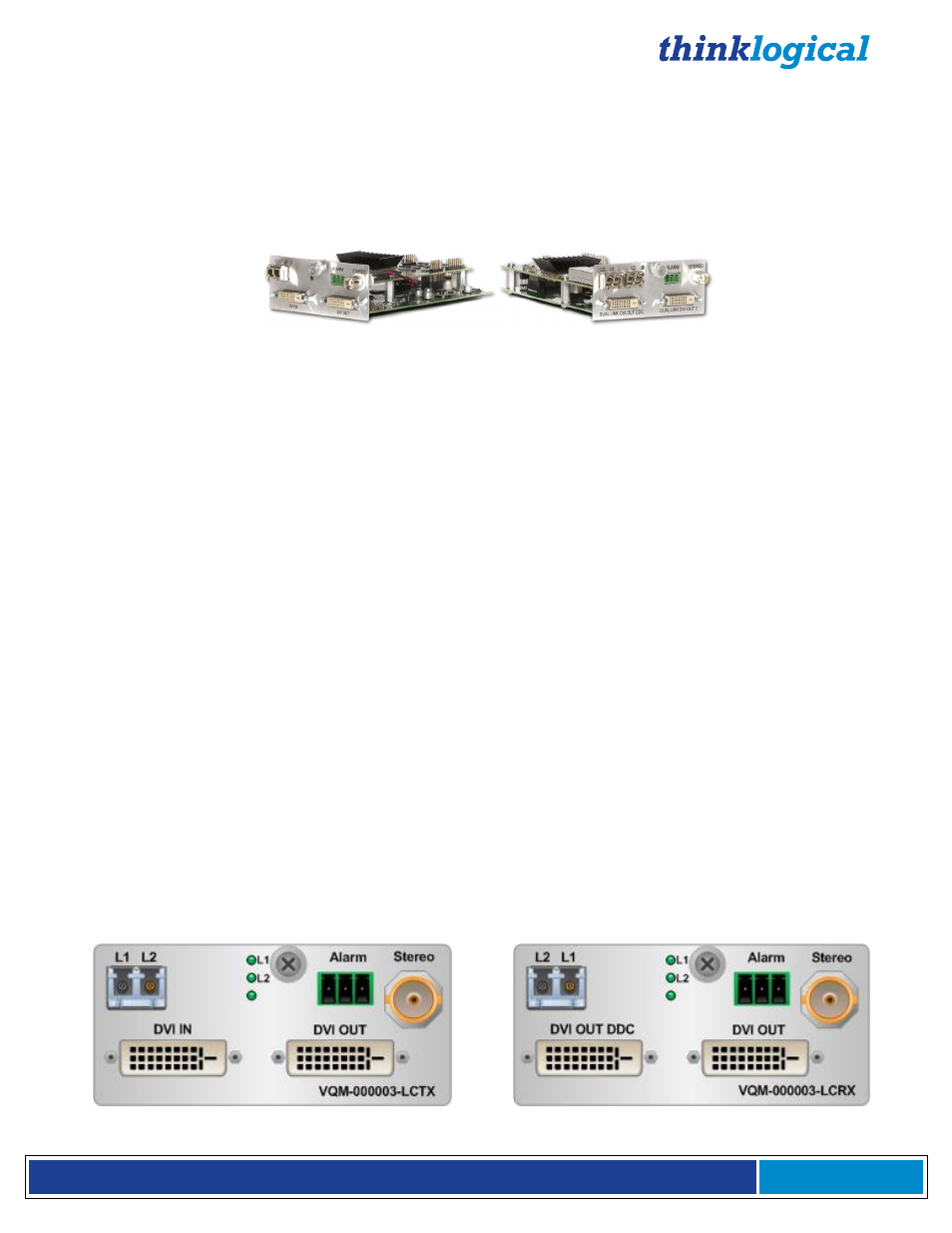

VQM-3, VQM-3V and VQM-3R Tx and Rx DVI Modules:
VQM-3, TX Single Video VQM-3, RX Single Video
