Teo E911 Response Server 9145 Installation Instructions
Page 18
13-280133 Rev. C
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
t
t
h
h
e
e
C
C
h
h
a
a
s
s
s
s
i
i
s
s
i
i
n
n
t
t
o
o
a
a
R
R
a
a
c
c
k
k
1.

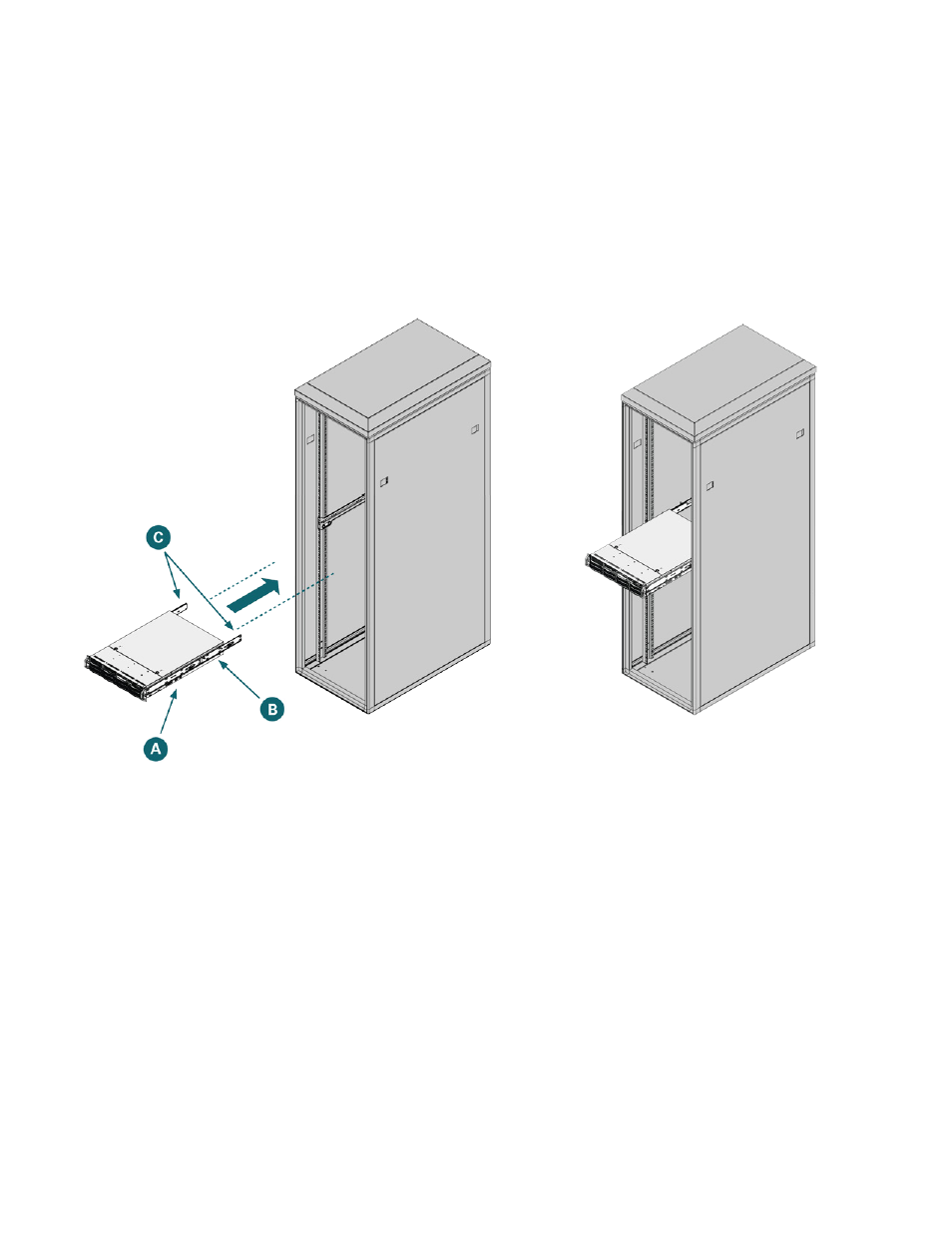

Confirm that chassis includes the inner rails (A) and rail extensions (B). Also, confirm
that the outer rails (C) are installed on the rack.
2.
Line chassis rails (A and B) with the front of the rack rails (C).
3.
Slide the chassis rails into the rack rails, keeping the pressure even on both sides
(you may have to depress the locking tabs when inserting). When the server has
been pushed completely into the rack, you should hear the locking tabs "click".
4.
(Optional) Insert and tighten the thumbscrews that hold the front of the server to the
rack.
