Installation
13-280133 Rev. C
Page 17
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
t
t
h
h
e
e
O
O
u
u
t
t
e
e
r
r
R
R
a
a
i
i
l
l
s
s
t
t
o
o
t
t
h
h
e
e
R
R
a
a
c
c
k
k

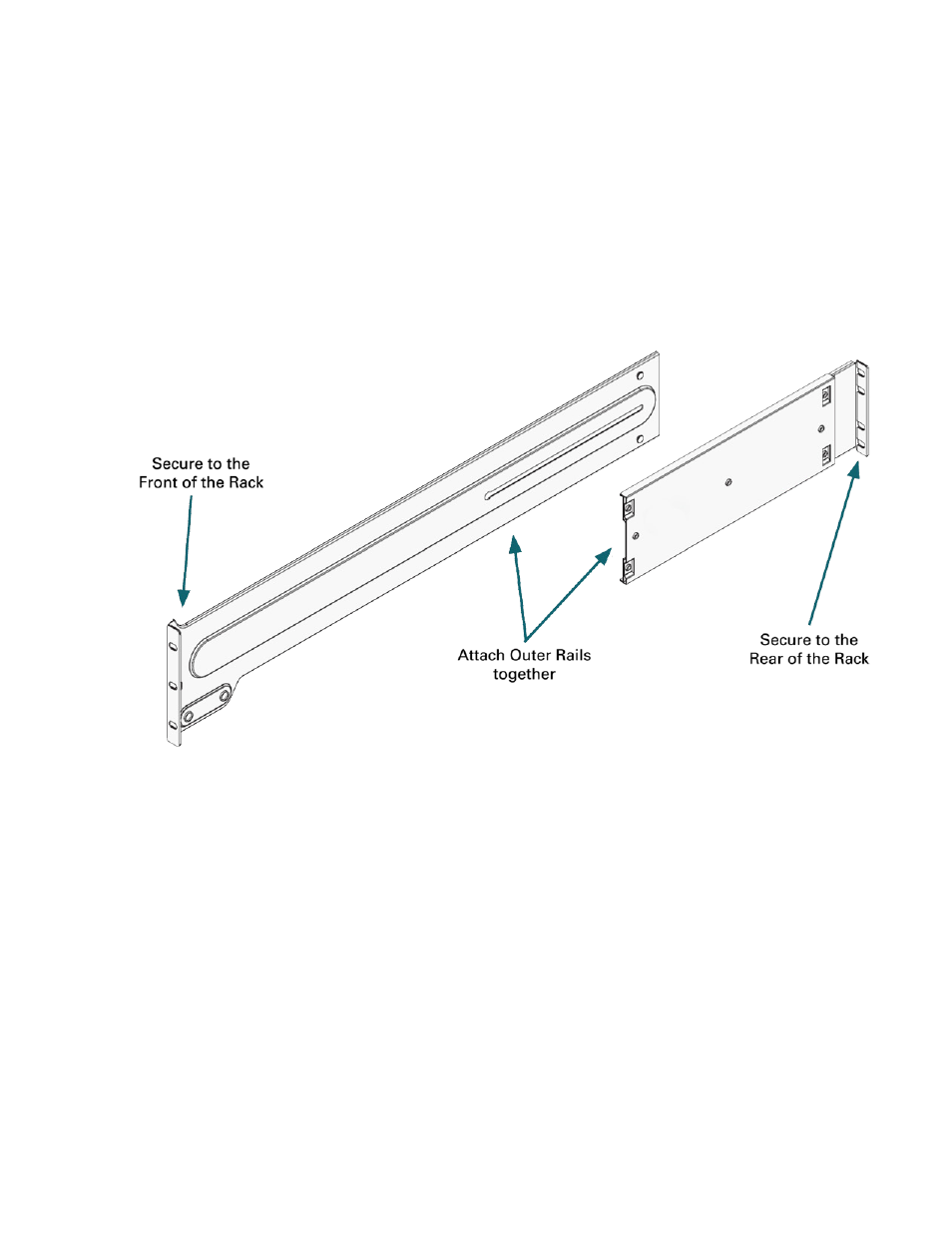

Outer rails attach to the server rack and hold the server in place. The outer rails extend
between 30 inches and 33 inches.
1.
Attach the short bracket to the outside of the long bracket. You must align the pins
with the slides. Also, both bracket ends must face the same direction.
2.
Adjust both the short and long brackets to the proper distance so that the rail fits
snugly into the rack.
3.
Secure the long bracket to the front side of the outer rail with two M5 screws and the
short bracket to the rear side of the outer rail with three M5 screws.
4.
Repeat steps 1-4 for the left outer rail.
