Wiring diagrams: refrigerators – Delfield Refrigerators and Freezers User Manual
Page 8
ColdPro Service and Installation Manual
For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfi eld.com
8

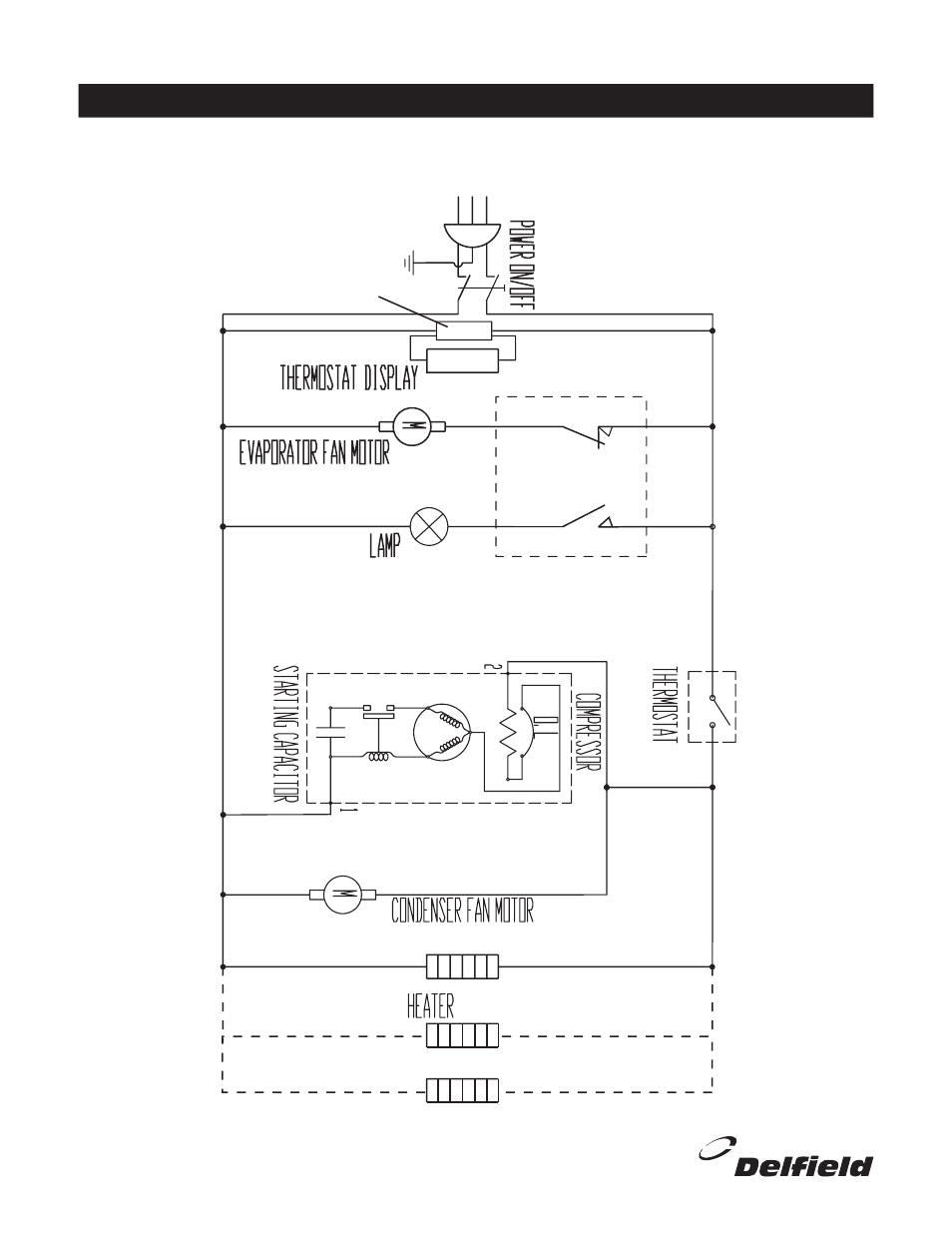

WIRING DIAGRAMS: REFRIGERATORS
Models: R1FR, R1FL, R1HR, R1HL, R2FH, R2HH, R3FH
115 VOLT 60 CYCLE 1 PHASE
�����������
�����������
����
�
�
�
�����������
�����������
�����������������
�������������
