Delfield SMRRT3-S User Manual

Specification line, Delfield, Models

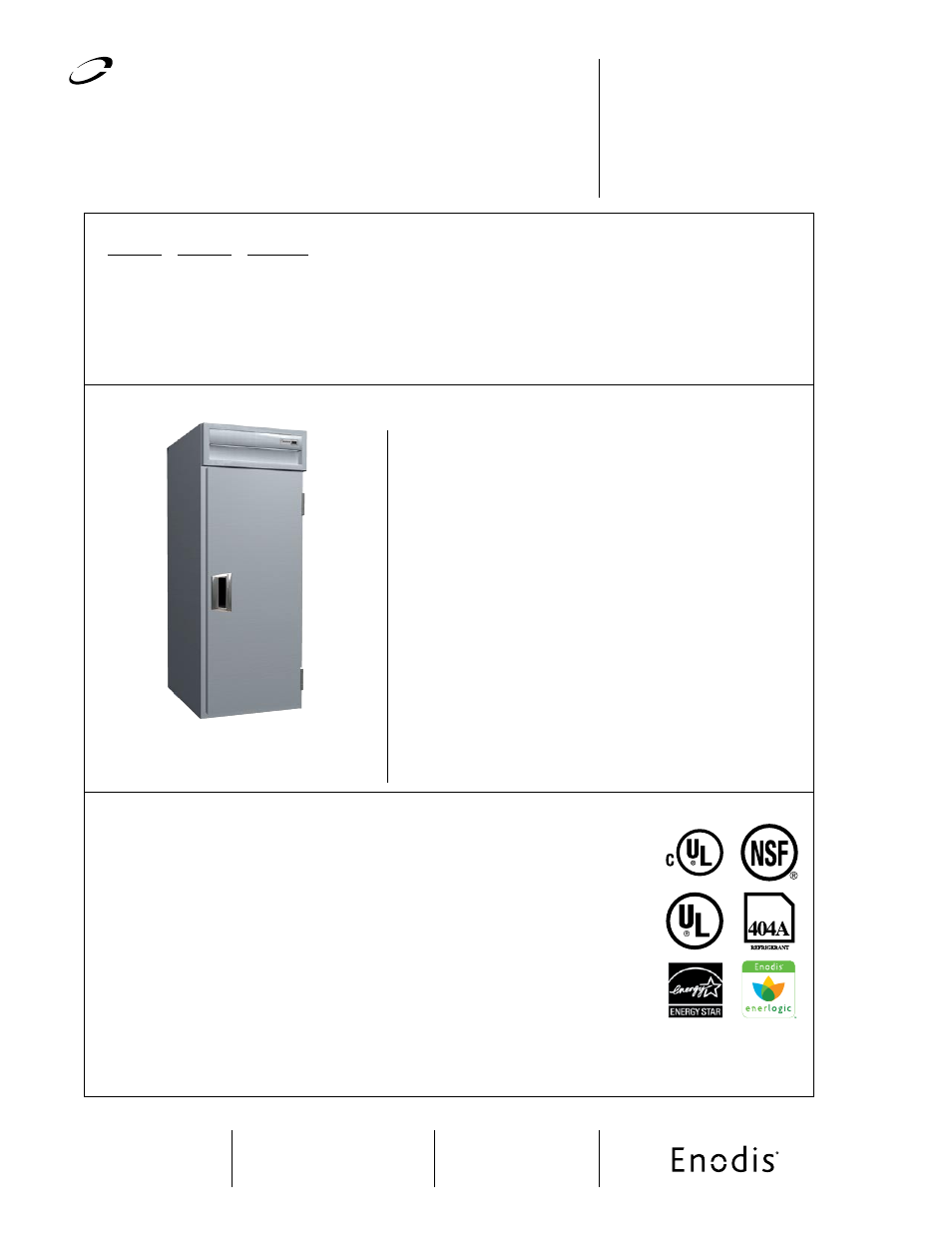

background image

Project __________________________________

Item ____________________________________

Quantity ________________________________

CSI Section 11400

Approved _______________________________

Date ____________________________________

980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619

www.delfield.com

Delfield

®

Exterior: SS and SA models shall have corrosion resistant stainless

steel exterior cabinet sides, front and shroud. SM models shall have

corrosion resistant aluminum on exterior cabinet sides and will have

stainless front and shroud. All units shall have the upper shroud

hinged with a gas assist stay open feature to provide easy access to

the refrigeration system.

Interior: Cabinet interior shall be corrosion resistant stainless steel

(SS models) or heavy gauge aluminum (SA and SM models). Bottom

and top surfaces shall be die stamped to provide radius corners

and recessed floor. Mounted to the interior ceiling, the interior

incandescent light is controlled automatically through a switch

mounted in the hinge assembly to protect against breakage. Door

openings are protected with heavy gauge stainless steel breaker

strips. An air duct shall be mounted to the ceiling assuring low

velocity, even air movement throughout the cabinet interior.

Each section can accommodate a 28 1/2” x 27 1/4” x 72” cart.

Doors: Exterior shall be corrosion resistant stainless steel. Interior

liner shall be resilient high impact ABS material formed to protrude

beyond the door gasket to protect the gasket from tearing. Each

door has two edge mount, self closing, cam lift style hinges. Doors

can be removed from the cabinet without the use of tools. Metal

door handle shall be recessed into the door for easy grip without

impacting aisle space. Keyed door lock is mounted in the door next

to the handle. Lock engages into a heavy duty strike mounted to

the cabinet face. Door gaskets are magnetic and mount to the door

snapping in place and are removable without tools.

Refrigeration system: All components are mounted to the exterior

of the cabinet ceiling, outside the food zone and are assembled

as one piece and can be removed as one piece. Environmentally

friendly R404A refrigerant is used. The system has the capability

of maintaining between 27ºF and 40ºF in heavy use food service

operations. Refrigerant is metered using a highly responsive

thermostatic expansion valve. System is controlled using Delfield’s

ACT-Advanced Control Technology electronic temperature control,

which provides improved pull down times, reduces compressor

cycling and longer compressor life with lower energy consumption.

Control system uses adaptive defrost to assure evaporator coil is free

of ice and is operating at optimum efficiency. Evaporator condensate

is eliminated using an energy efficient hot gas system.

Electrical: Standard electrical on one and two section units shall

be 115V, 60 Hz single phase. A 10’ cord and plug is supplied and

attached to a junction box mounted on the exterior top of the

cabinet. Three section units shall be 115/208-230 and will require

hardwire connections.

Specifications

Standard Features

Options &
Accessories

Stainless steel interior and exterior (SS)

Stainless steel exterior, aluminum

interior (SA)

Aluminum interior and exterior, stainless

front (SM)

Built in door locks with heavy duty

strikes

Recessed metal door handle

Pressure relief valve is standard to

prevent door vapor lock

Exterior digital thermometer with high/

low temperature alarm

Easy to use electronic control

Easy access “flip up” shroud

Tough ABS interior door liners

10’ attached cord and plug on 115V units

Stainless steel breaker strips

High density foamed in place

environmentally friendly, Kyoto Protocol

Compliant, Non ODP (Ozone Depletion

Potential), Non GWP (Global Warming

Potential) polyurethane keeps energy

costs low

Energy savings door heater switch

Two year parts & labor warranty

Five year compressor warranty

One section

Two section

Three section

SSRRT1-S

SSRRT2-S

SSRRT3-S

Stainless exterior and interior full door

SARRT1-S

SARRT2-S

SARRT3-S

Stainless exterior and aluminum interior full door

SMRRT1-S

SMRRT2-S

SMRRT3-S

Stainless front aluminum exterior and interior full door

Models

Specification Line®

Self-Contained Solid Door Refrigerated Roll-Thru

Sp

ec

ifi

ca

tio

n L

in

: S

olid

D

oo

r R

efr

ig

era

te

d R

oll

-T

hru

Security (prison) package

Door field rehingability

Laminate on front, sides and

back

Bottom mount electrical

Stainless steel banking strip

Heat shield end

230-50-1 electrical

220-60-1 electrical

SSRRT1-S
