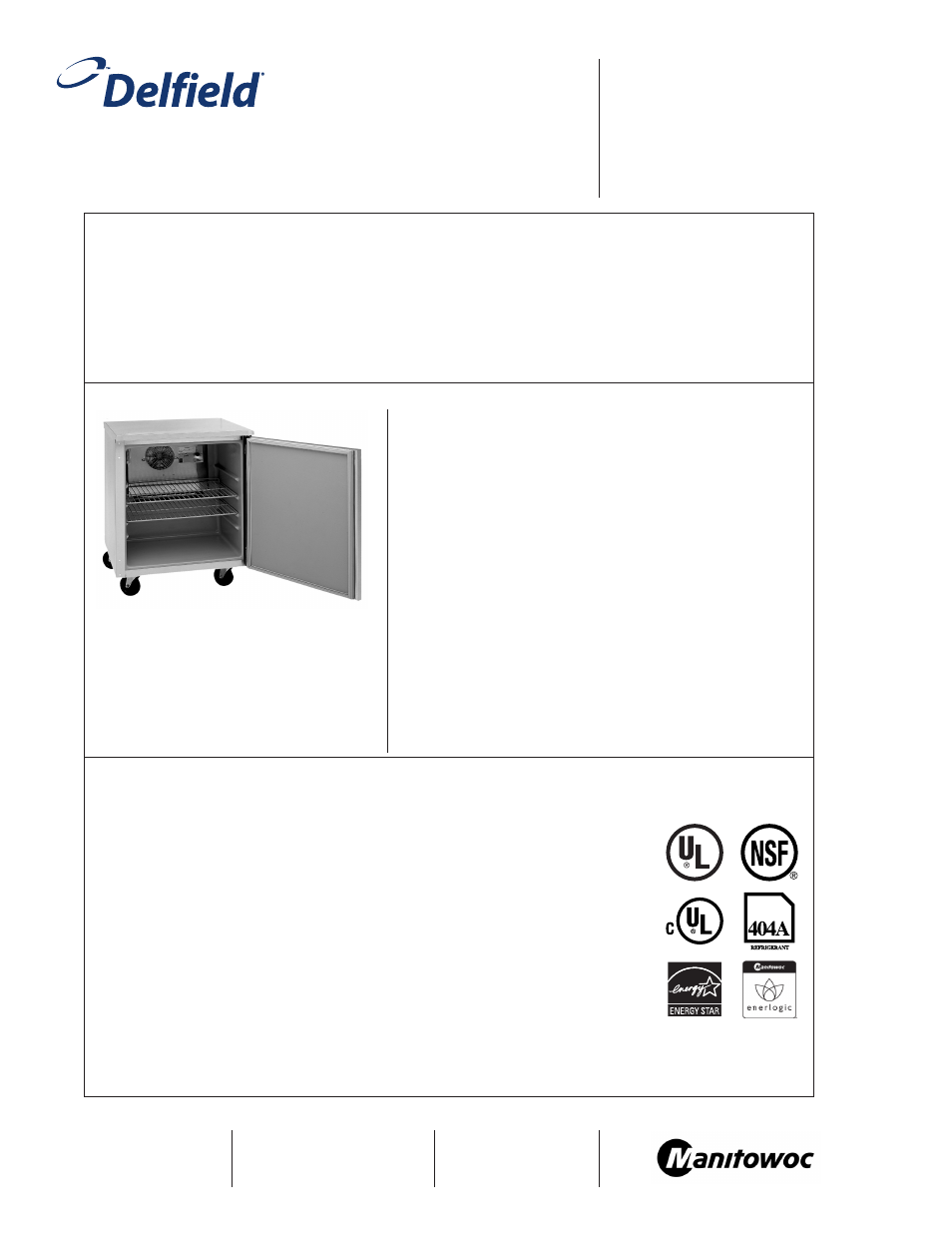

Delfield 407-CA - Manual

Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Specifications
Standard Features Options &
Accessories
• Features Delfield’s exclusive ABS interior. ABS
is extremely durable - it won’t dent, chip or
corrode and is backed by a limited lifetime
warranty
• Stainless steel front and sides
• Two epoxy coated wire shelves
• Environmentally friendly R404A refrigerant
• Foamed in place environmentally friendly,
Kyoto Protocol Compliant, Non ODP (Ozone
Depletion Potential), Non GWP (Global
Warming Potential) polyurethane cuts energy
costs
• Black recessed quick grip handle
• Rugged 6” high heavy duty metal legs (models
406 & 407 only). Units with a “CA” suffix are
standard on 3” diameter (3.75” ride height)
casters
• All units come standard hinged right and may
be changed at the factory at no charge. Indicate
when order is placed
• 6’ cord and plug supplied
• Interior thermometer
• Three year parts and labor warranty and an
additional two year compressor parts warranty
• 406 Undercounter refrigerator single section on legs
• 407 Undercounter freezer single section on legs
• 406-CA Undercounter refrigerator single section on casters
• 407-CA Undercounter freezer single section on casters
Models
406 & 407 Undercounter Series
406 & 407 Under
count
er S
er
ies
• Stainless steel back
• Plastic laminate on front
• Additional shelf
• Stainless steel single-tier overshelf
• 2” diameter (2.5” ride height) casters
• 5” diameter (6” ride height) casters
• Model 409 stacking collar
• Door lock
• 220 volt, 50 Hertz electrical system*
* This option will alter the unit’s electrical
specifications
Model 406-CA
Exterior bottom shall be heavy-gauge galvanized metal. Exterior
ends shall be heavy-gauge stainless steel.
Base interior shall be one-piece thermoformed ABS plastic material,
with integral shelf supports. ABS interior is backed by a limited
lifetime warranty. Base shall be fully insulated with high-density
foamed-in-place environmentally friendly, Kyoto Protocol Compliant,
Non ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Door shall have a heavy-gauge stainless steel exterior, with a
thermoformed ABS plastic interior liner, and shall be fully insulated
with foamed-in-place polyurethane. Door handle shall be black,
recessed ABS. Cabinet shall have (2) adjustable epoxy-coated wire
shelves installed.
MODELS 406/406-CA REFRIGERATORS REFRIGERATION SYSTEM:
Refrigeration system shall use HFC-404A refrigerant. Compressor shall
be 1/5 h.p., with condenser coil and hot gas condensate evaporator
mounted on rear of cabinet. Evaporator coil and temperature control
shall be mounted on the interior rear wall of the cabinet. Refrigerant
flow shall be controlled by a capillary tube. Cabinet shall maintain
36°F to 40°F (2°C to 4°C) interior cabinet temperature.
MODELS 407/407-CA FREEZERS REFRIGERATION SYSTEM: Freezer
system shall use HFC-404A refrigerant. Compressor shall be 1/5 h.p.,
with condenser coil, hot gas condensate evaporator and temperature
control mounted on rear of cabinet. Evaporator coil shall be mounted
on the interior rear wall of the cabinet. Refrigerant flow shall be
controlled by a capillary tube. Cabinet shall maintain -5°F to 0°F (-21°C
to -18°C) interior cabinet temperature.
System is controlled using Delfield’s ACT-Advanced Control
Technology electronic temperature control, which provides improved
pull down times, reduces compressor cycling and longer compressor
life with lower energy consumption.
Electrical connections shall be 115 volt, 60 Hertz, single phase. Unit
shall have a 6’ (1.8m) long electrical cord and NEMA 5-15P plug. Cord
and plug shall be located on rear of cabinet, 16” (40.6cm) above floor,
5” from the left side.
406/407: Equipment is shipped with loose 6” (15.2cm) high metal
legs with black enamel finish unless mounting is specified on original
sales order. Exterior top shall be one-piece, heavy-gauge stainless
steel with front edge turned down to form nosing and rear edge
turned down.
406-CA/407-CA: Equipment is shipped with loose 3” diameter (3.75”
ride height) casters high casters (two locking and two non-locking)
unless mounting is specified on original sales order. Exterior top shall
be one-piece, heavy-gauge aluminum with all edges turned down.
