Project __________________________________

Item ____________________________________

Quantity ________________________________

CSI Section 11400

Approved _______________________________

Date ____________________________________

980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619

www.delfield.com

Delfield

®

Exterior: SS and SA models shall have corrosion resistant stainless

steel exterior cabinet sides, front and shroud. SM models shall have

corrosion resistant aluminum on exterior cabinet sides and will have

stainless front and shroud. All units shall have the upper shroud

hinged with a gas assist stay open feature to provide easy access to

the refrigeration system.
Interior: Cabinet interior shall be corrosion resistant stainless steel

(SS models) or heavy gauge aluminum (SA and SM models). Bottom

and top surfaces shall be die stamped to provide radius corners and

recessed floor. Three wire shelves are provided per section, SA/SS

standard shelves are chrome plated, SM standard shelves are epoxy

coated. Shelves rest on clips which are adjustable on 1” increments

on stainless steel pilasters affixed to the cabinet interior. Pilasters

are removable without tools for cleaning. Mounted to the interior

ceiling, the interior fluorescent light is controlled automatically

through a switch mounted in the hinge assembly to protect against

breakage. Door openings are protected with heavy gauge stainless

steel breaker strips. An air duct shall be mounted to the ceiling

assuring low velocity, even air movement throughout the cabinet

interior.
Doors:
Solid Sliding. Exterior and interior shall be corrosion resistant

stainless steel.

Glass Sliding. Double thermopane glass set in high impact black

plastic frame.
Doors are set in tracks for easy movement. Spring action assures

self closing. Gasket seals both ends of doors. Doors are removable

for cleaning.
Refrigeration system: All components are mounted to the exterior

cabinet ceiling, outside the food zone and are assembled as one

piece and can be removed as one piece. Environmentally friendly

R404A refrigerant is used. System has the capability of maintaining

between 27˚F and 40˚F in heavy use food service operations.

Refrigerant is metered using a highly responsive thermostatic

expansion valve. System is controlled using Delfield’s ACT-Advanced

Control Technology electronic temperature control, which provides

improved pull down times, reducing compressor cycling and longer

compressor life with lower energy consumption.
Control system uses adaptive defrost to assure evaporator coil is free

of ice and operating at optimum efficiency. Evaporator condensate

is eliminated using an energy efficient hot gas system.
Electrical: Standard electrical connections shall be 115V, 60Hz,

single phase. A 10’ cord and plug is supplied attached to a junction

box mounted on the exterior top of the cabinet.

Specifications

Standard Features

Options &
Accessories

Stainless steel interior and exterior (SS)

Stainless steel exterior, aluminum interior (SA)

Aluminum interior and exterior, stainless front (SM)

Pressure relief valve is standard to prevent door

vapor lock

Exterior digital thermometer with high/low

temperature alarm

Easy access “flip up” shroud

Easy to use electronic control

Three wire shelves per section - SA/SS standard

with chrome plated shelves and SM standard with

epoxy coated shelves

10’ attached cord and plug

6” adjustable stainless steel legs

Stainless steel breaker strips

Environmentally friendly 404a refrigerant

High density foamed in place environmentally

friendly, Kyoto Protocol Compliant, Non ODP

(Ozone Depletion Potential), Non GWP (Global

Warming Potential) polyurethane keeps energy

costs low

Energy savings door heater switch

Fluorescent light with on/off switch (glass door

units only)

Two year parts & labor warranty

Five year compressor warranty

Solid door

Glass door

SSR2-SLS

SSR2-SLG

2 section stainless exterior and interior full sliding door

SSR2-SLSH

SSR2-SLGH

2 section stainless exterior and interior half sliding door

SAR2-SLS

SAR2-SLG

2 section stainless exterior and aluminum interior full sliding door

SAR2-SLSH

SAR2-SLGH

2 section stainless exterior and aluminum interior half sliding door

SMR2-SLS

SMR2-SLG

2 section stainless front aluminum exterior and interior full sliding door

SMR2-SLSH

SMR2-SLGH

2 section stainless front aluminum exterior and interior half sliding door

Models

Specification Line®

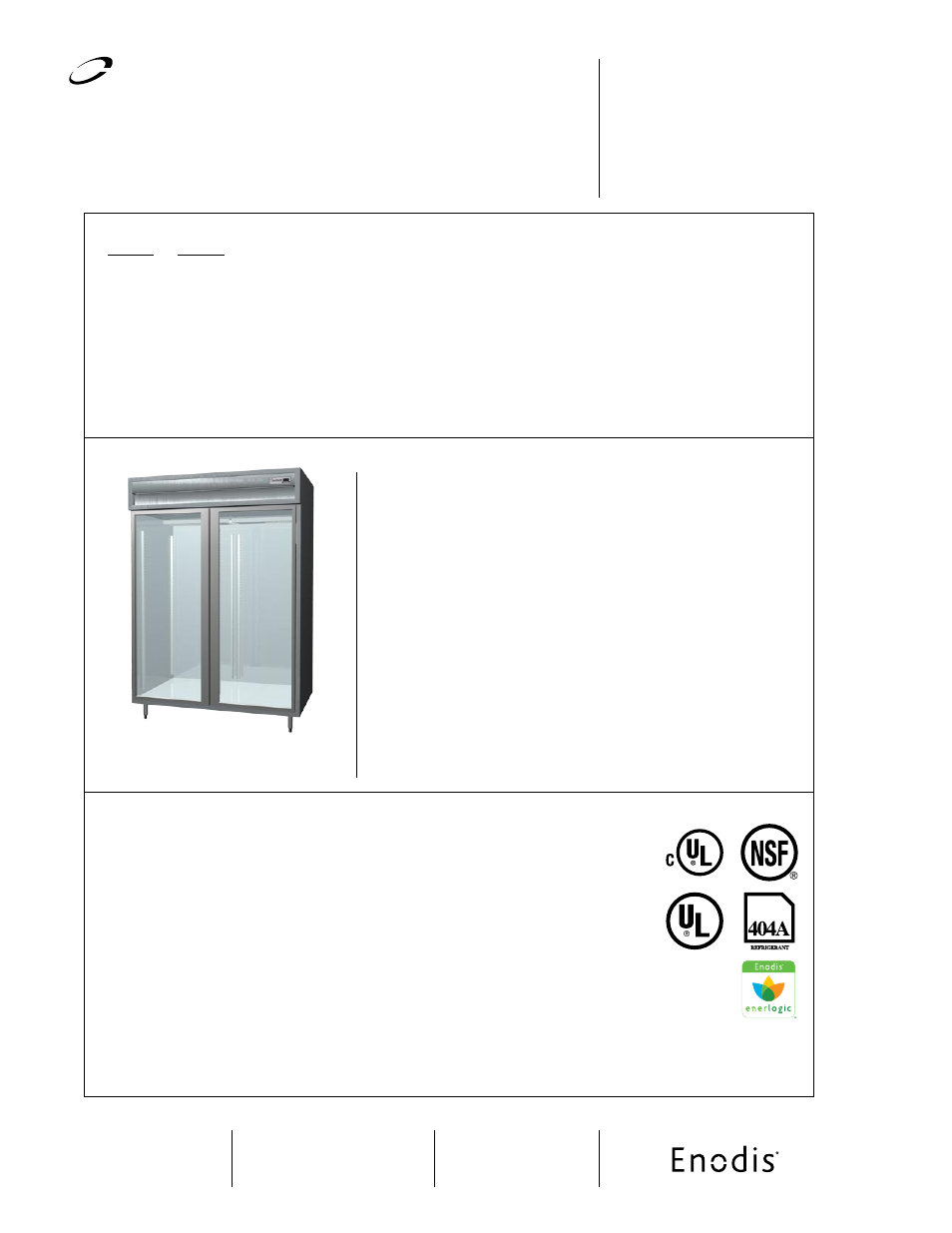

Self-Contained Sliding Door Reach-In Refrigerator

Sp

ec

ifi

ca

tio

n L

in

: S

lid

in

g D

oo

r R

ea

ch

-In

R

efr

ig

era

to

r

Additional shelves

Tray slides

Stainless steel back

Laminate on front, sides and back

Bottom mount electrical

Stainless steel banking strip

Heat shield end

Stainless steel kick plate

Laminate kick plate

4” stainless steel utility base

220-60-1 electrical

230-50-1 electrical

Security package

SSR2-SLG
