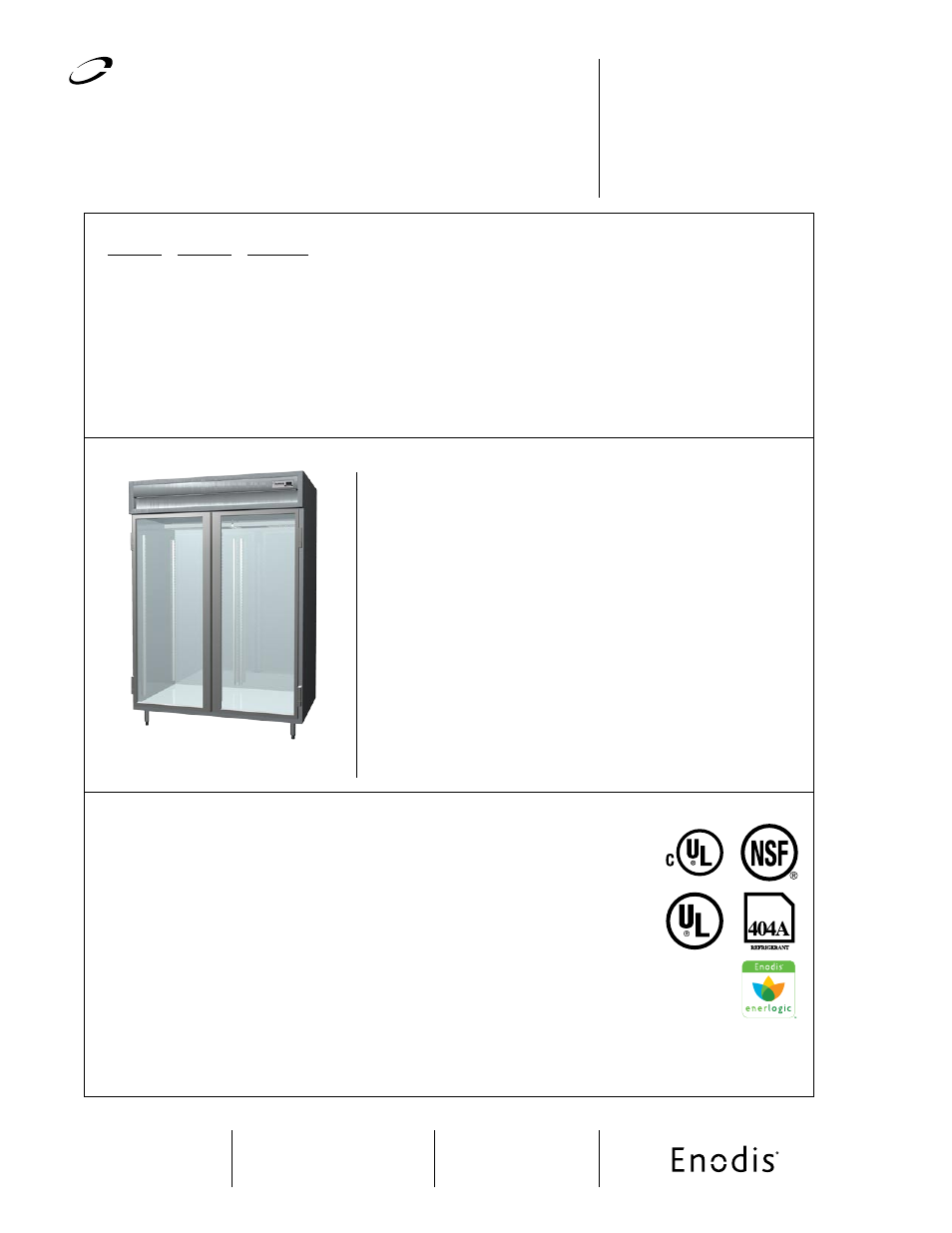

background image

Project __________________________________

Item ____________________________________

Quantity ________________________________

CSI Section 11400

Approved _______________________________

Date ____________________________________

980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619

www.delfield.com

Delfield

®

Exterior: SS and SA models shall have corrosion resistant stainless

steel exterior cabinet sides, front and shroud. SM models shall have

corrosion resistant aluminum on exterior cabinet sides and will have

stainless front and shroud. All units shall have the upper shroud

hinged with a gas assist stay open feature to provide easy access to

the refrigeration system.

Interior: Cabinet interior shall be corrosion resistant stainless steel

(SS models) or heavy gauge aluminum (SA and SM models). Bottom

and top surfaces shall be die stamped to provide radius corners and

recessed floor. Three wire shelves are provided per section, SA/SS

standard shelves are chrome plated, SM standard shelves are epoxy

coated. Shelves rest on clips which are adjustable on 1” increments

on stainless steel pilasters affixed to the cabinet interior. Pilasters are

removable without tools for cleaning. Mounted to the interior ceiling,

the interior fluorescent light is controlled automatically through a

switch mounted in the hinge assembly to protect against breakage.

Door openings are protected with heavy gauge stainless steel

breaker strips. An air duct shall be mounted to the ceiling assuring

low velocity, even air movement throughout the cabinet interior.

Doors: Double paned tempered thermopane glass. Constructed with

a combination of extruded aluminum and PVC. Each door has two

edgemount, self-closing, cam lift style hinges. Doors can be removed

from the cabinet without the use of tools. Door handle is continuous

along vertical dimension of the door. Door gaskets are magnetic and

mount to the door, snapping in place and removable with out tools.

Keyed door lock is mounted to the door. Lock engages into a heavy

duty strike mounted to the cabinet face.

Refrigeration system: All components are mounted to the exterior

of the cabinet ceiling, outside the food zone and are assembled

as one piece and can be removed as one piece. Environmentally

friendly R404A refrigerant is used. The system has the capability

of maintaining between 27ºF and 40ºF in heavy use food service

operations. Refrigerant is metered using a highly responsive

thermostatic expansion valve. System is controlled using Delfield’s

ACT-Advanced Control Technology electronic temperature control,

which provides improved pull down times, reduces compressor

cycling and longer compressor life with lower energy consumption.

Control system uses adaptive defrost to assure evaporator coil is free

of ice and is operating at optimum efficiency. Evaporator condensate

is eliminated using an energy efficient hot gas system.

Electrical: Standard electrical on one and two section units shall

be 115V, 60 Hz single phase. A 10’ cord and plug is supplied and

attached to a junction box mounted on the exterior top of the

cabinet. Three section units shall be 115/208-230 and will require

hardwire connections.

Specifications

Standard Features

Options &
Accessories

Stainless steel interior and exterior (SS)
Stainless steel exterior, aluminum interior (SA)
Aluminum interior and exterior, stainless front (SM)
Built in door locks with heavy duty strikes
Pressure relief valve is standard to prevent door
vapor lock
Exterior digital thermometer with high/low
temperature alarm
Easy to use electronic control
Easy access “flip up” shroud
Three wire shelves per section - SA/SS standard
with chrome plated shelves and SM standard with
epoxy coated shelves
10’ attached cord and plug on 115V units
6” adjustable stainless steel legs
Stainless steel breaker strips
High density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane keeps energy
costs low
Energy savings door heater switch
Two year parts & labor warranty
Five year compressor warranty












One section

Two section

Three section

SSRPT1-G

SSRPT2-G

SSRPT3-G

Stainless exterior and interior glass full door

SSRPT1-GH

SSRPT2-GH

SSRPT3-GH

Stainless exterior and interior glass half door

SARPT1-G

SARPT2-G

SARPT3-G

Stainless exterior and aluminum interior glass full door

SARPT1-GH

SARPT2-GH

SARPT3-GH

Stainless exterior and aluminum interior glass half door

SMRPT1-G

SMRPT2-G

SMRPT3-G

Stainless front aluminum exterior and interior glass full door

SMRPT1-GH

SMRPT2-GH

SMRPT3-GH

Stainless front aluminum exterior and interior glass half door

Models

Specification Line®

Self-Contained Glass Door Pass-Thru Refrigerator

Sp

ec

ifi

ca

tio

n L

in

: G

las

s D

oo

r P

as

s-T

hru

R

efr

ig

era

to

r

Security (prison) package
6” polyurethane casters
Incandescent light
Door field rehingability
Additional shelves
Tray slides
Laminate on front, sides and back
Bottom mount electrical
Stainless steel banking strip
Heat shield end
Stainless steel kick plate
Laminate kick plate
4” stainless steel utility base
230-50-1 electrical
220-60-1 electrical
