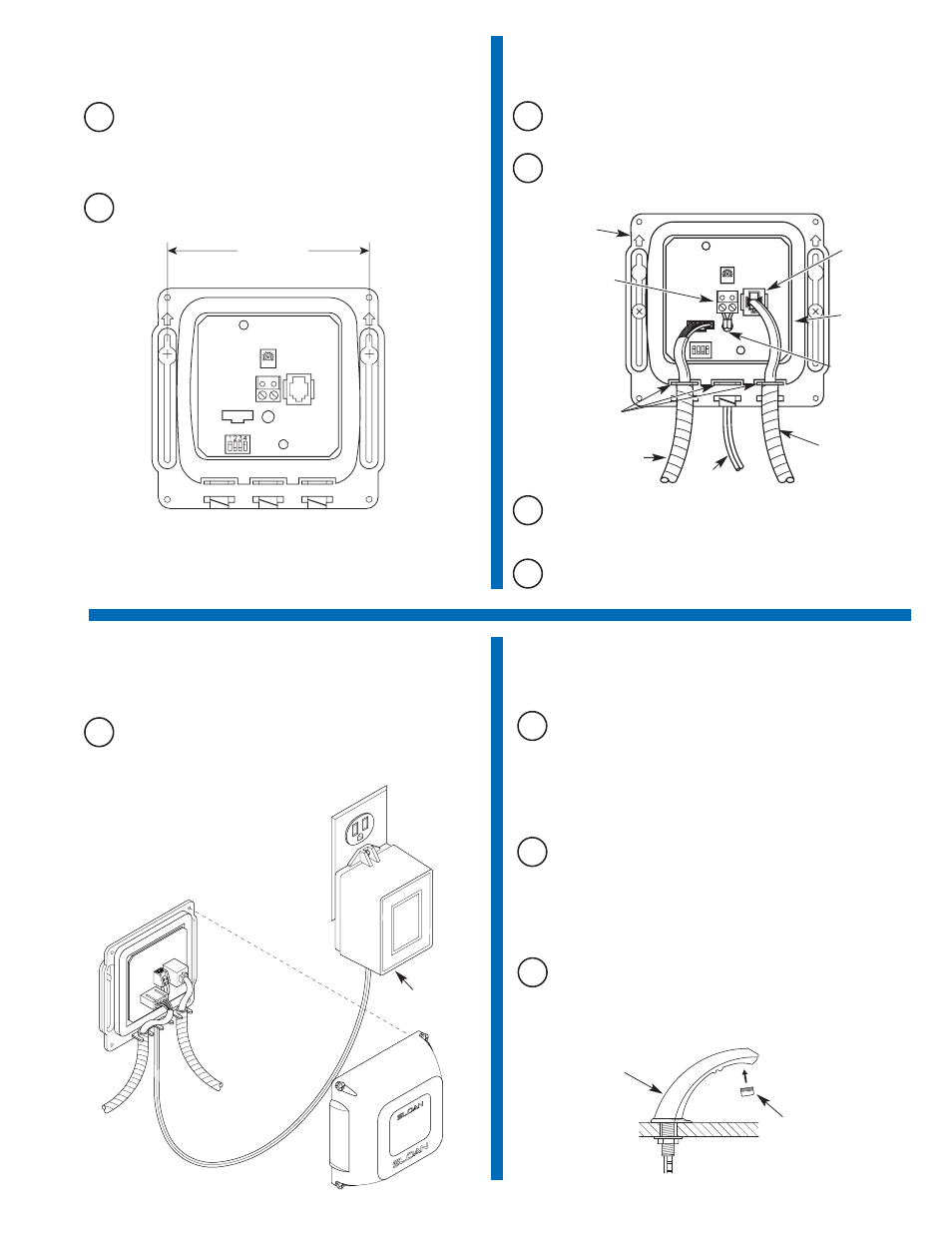

Mount Control Module to Wall

EXTENSION CABLES

Extension Cables are available as an option from Sloan to allow for
installing the Control Module remote from the Faucet Spout and Solenoid
Valve. Refer to the Parts List for available lengths.

B

Mount Control Module to wall using Mounting Screws and Plastic
Anchors.

A

Install the Control Module in an appropriate location as shown in
Rough-in. Control Module must be installed so that all cables
enter from the bottom of the unit. When installed, Cables from the
Spout and Solenoid Valve to the Control Module should have
some slack.

4” (102 mm)

6

Control Module Connections

B

Insert Solenoid Valve Connector into the Modular Receptacle on
Connector Board.

C

Insert Locking Connector from Faucet Spout into mating
Receptacle on Connector Board. Allow 3 to 4 inches (76 to 102
mm) of Cable to extend into the Control Module.

D

Insert each Conduit Cable into a strain relief slot in the Control
Module.

A

Route Cables from Solenoid Valve and Spout to the Control
Module.

CONTROL

MODULE

ENCLOSURE

FROM SOLENOID

VALVE

FROM

TRANSFORMER

STRAIN

RELIEF

SLOTS

FROM FAUCET

SPOUT

TERMINAL BLOCK -

1. REMOVE

TERMINAL BLOCK

2. INSERT POWER

CABLES

3. SECURE WITH

SCREWS

4. REINSTALL

TERMINAL BLOCK

CONNECTOR

BOARD

POWER CABLE

MODULAR

RECEPTACLE

Plug In Transformer

A

Plug Transformer into 120 VAC Receptacle.

7

TRANSFORMER

8

Start-Up

A

Supply power to Transformer.

Note: The Control Module is equipped with two LED lights. When power
is supplied by the Transformer, one LED will illuminate green. When
Sensor is activated, this LED will change to red. A second red LED
illuminates when Solenoid Valve is activated.

B

Open Supply Stop(s). With Aerator removed, activate Faucet for
30 seconds by placing hands in front of Sensor. The Solenoid
Valve should “click” and water should flow from the Spout. If this
does not occur, refer to the Troubleshooting section of this
installation instructions.

C

Close Supply Stop(s) and install Spray Head in Spout using the
Key provided. Reopen Supply Stop(s), activate Faucet and check
for leaks.

THREAD THE SPRAY
HEAD INTO OPENING
OF SPOUT

SPRAY HEAD

SPOUT
