SLOAN VALVE COMPANY • 10500 Seymour Avenue • Franklin Park, IL 60131
Phone: 1-800-982-5839 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
www.sloanvalve.com
Code No. 0816835 – Rev. 1 (05/10) Copyright © 2010 SLOAN VALVE COMPANY
Item Part Description
No. No.
1 ‡ Solenoid Activated Valve Assembly
2 H-730-A 1" (25 mm) Concealed WH Bak-Chek ® Angle Stop RB
H-730-A ¾" (19 mm) Concealed WH Bak-Chek ® Angle Stop RB
3A EL-461 Surface Mounted Sensor and Override Button Assembly
(closet only)
3B EL-497 Surface Mounted Sensor Assembly (urinal only)
4 ETF-492-A Control Module
5A V-500-A 1½" (38 mm) Vacuum Breaker Assembly RB
(Model 150 ES-SM)
5B V-500-A ¾" (19 mm) Vacuum Breaker Assembly RB (Model 194 ES-SM)
5C V-500-A 1½" (38 mm) x 11½" (292 mm) Vacuum Breaker Assembly RB
(Model 152 ES-SM)
5D V-500-AA 1½" (38 mm) x 11½" (292 mm) Vacuum Breaker Assembly RB
(Model 190 ES-SM)
5E V-500-AA ¾" (19 mm) x 10½" (267 mm) Vacuum Breaker Assembly RB
(Model 195 ES-SM)
Item Part Description
No. No.
6 F-21 1½" (38 mm) Double Slip Elbow RB
(Models 152 ES-SM and 190 ES-SM)
7 F-2-AA 1½" (38 mm) Slip Joint Coupling RB (Set of Two)
(Model 152 ES-SM)
8 F-2A 1½" (38 mm) Slip Joint Coupling RB (Model 190 ES-SM)
9 F-2-AW ¾" (19 mm) Slip Joint Coupling RB (Model 195 ES-SM)
10 F-2-A 1½" (38 mm) Coupling with S-21 Gasket
11 F-102 1½" (38 mm) Outlet Tube RB
12 F-110 1¼" (32 mm) O.D. Outlet Tube RB
13 F-2-AU 1¼" (32 mm) Slip Joint Coupling RB
‡ Part number varies with valve model variation; consult factory.
NOTE: The information contained in this document is subject to change without
notice.
Royal and Sloan

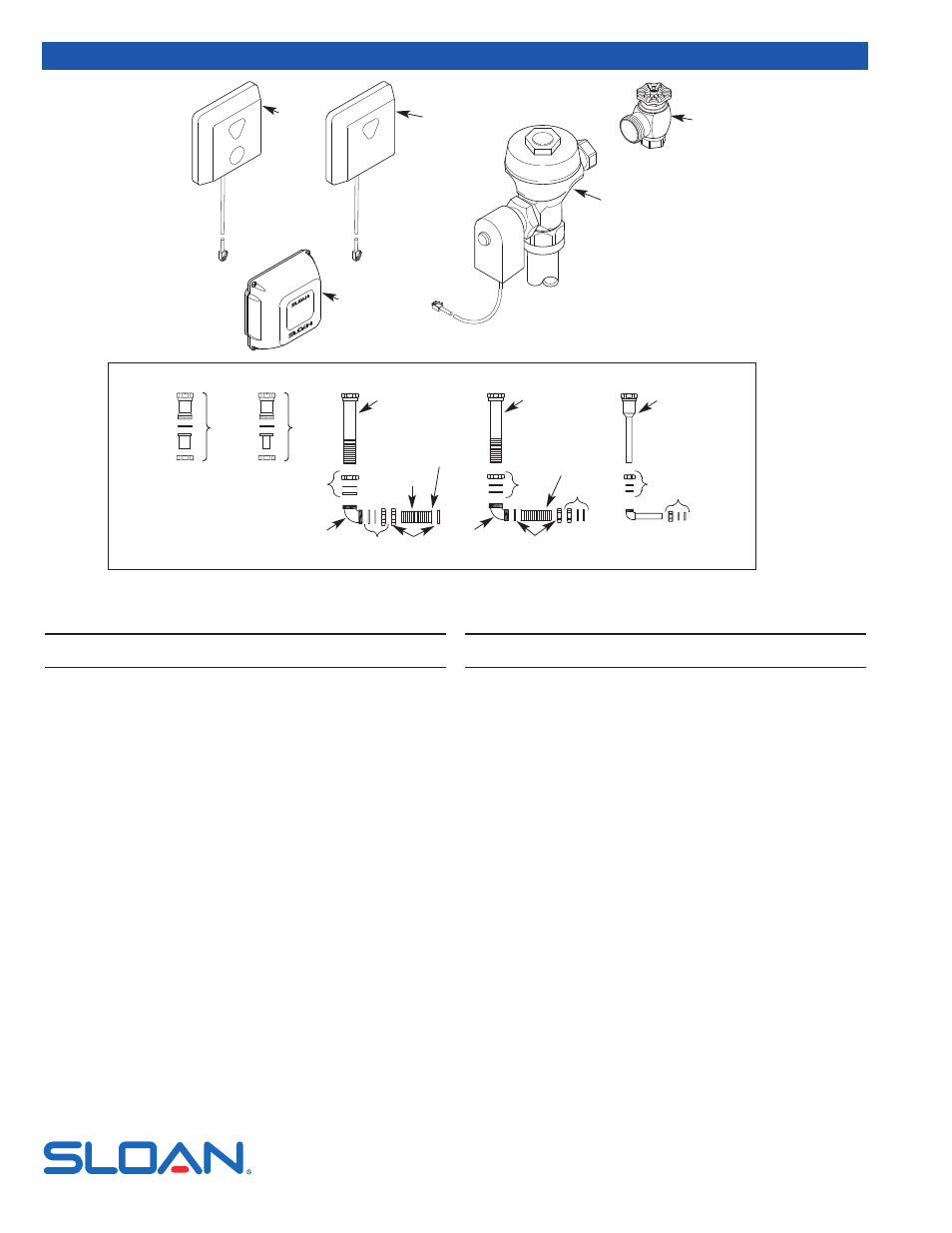

Detailed Parts Breakdown
For a detailed parts breakdown of Royal and Sloan Optima ES-SM
Flushometers, see Repair Parts and Maintenance Guide.
7
7
6
5C
3B 2
1
4
3A
190 ES-SM 195 ES-SM 152 ES-SM
5D 5E
10
11
8 9
9
INSTALL WITH
FLANGE
AGAINST SPUD
10
12
13
150 ES-SM 194 ES-SM
5A 5B
6
ROYAL PARTS LIST
