4
A Slide Threaded Adapter fully onto pipe.
B Sweat solder the Adapter to pipe.
With the exception of Control Stop Inlet, DO NOT use pipe sealant or
plumbing grease on any valve component or coupling!
!!! IMPORTANT !!!
A Install the Sloan Bak-Chek ® Control Stop onto the water supply line
with the outlet positioned as required.
A Assemble Pipe, Elbows, Couplings, Nylon Slip Gasket, Rubber
Gaskets and Flanges as illustrated on parts page.
B Insert Tube into Fixture Spud.
C Hand tighten all Couplings.
C Align Flushometer Body and securely tighten first the Tailpiece
Coupling (
1 ), then the Vacuum Breaker and Pipe Couplings ( 2 ), and
finally the Spud Coupling ( 3 ). Use a wrench to tighten these
couplings in the order shown.
B Align Flushometer directly above the Vacuum Breaker Flush
Connection by sliding the Flushometer Body IN or OUT as needed.
Tighten Vacuum Breaker Coupling by hand.
A Lubricate tailpiece O-ring with water. Insert Adjustable Tailpiece into
Control Stop. Tighten Tailpiece Coupling by hand.
Max. adjustment of Sloan Adjustable Tailpiece is ½" (13 mm) IN or OUT
from the standard 4¾" (121 mm) (c/l of Valve to c/l of Control Stop).
If roughing-in measurement exceeds 5¼” (133 mm), consult factory
for longer tailpiece.
NOTE
C/L FIXTURE C/L SUPPLY
IMPORTANT: WHEN CUTTING
SCORED PIPE TO LENGTH
LEAVE A MINIMUM OF 1-1/4”
(32 mm) OF SCORING TO
ENSURE PROPER
ENGAGEMENT
THREADED ADAPTER
WATER SUPPLY PIPE
IRON PIPE NIPPLE OR
COPPER PIPE WITH
SWEAT SOLDER ADAPTER
BAK-CHEK ®
CONTROL STOP
DO NOT USE PIPE SEALANT ON
SCORED SLIP CONNECTION
1-1/4" (32 mm) MIN.
FLUSHOMETER
BODY
G-44 FRICTION RING
VACUUM BREAKER
COUPLING
2
VACUUM BREAKER
FLUSH CONNECTION
VACUUM
BREAKER
REPAIR KIT
TAILPIECE COUPLING
CONTROL STOP
O-RING
ADJUSTABLE TAILPIECE
1

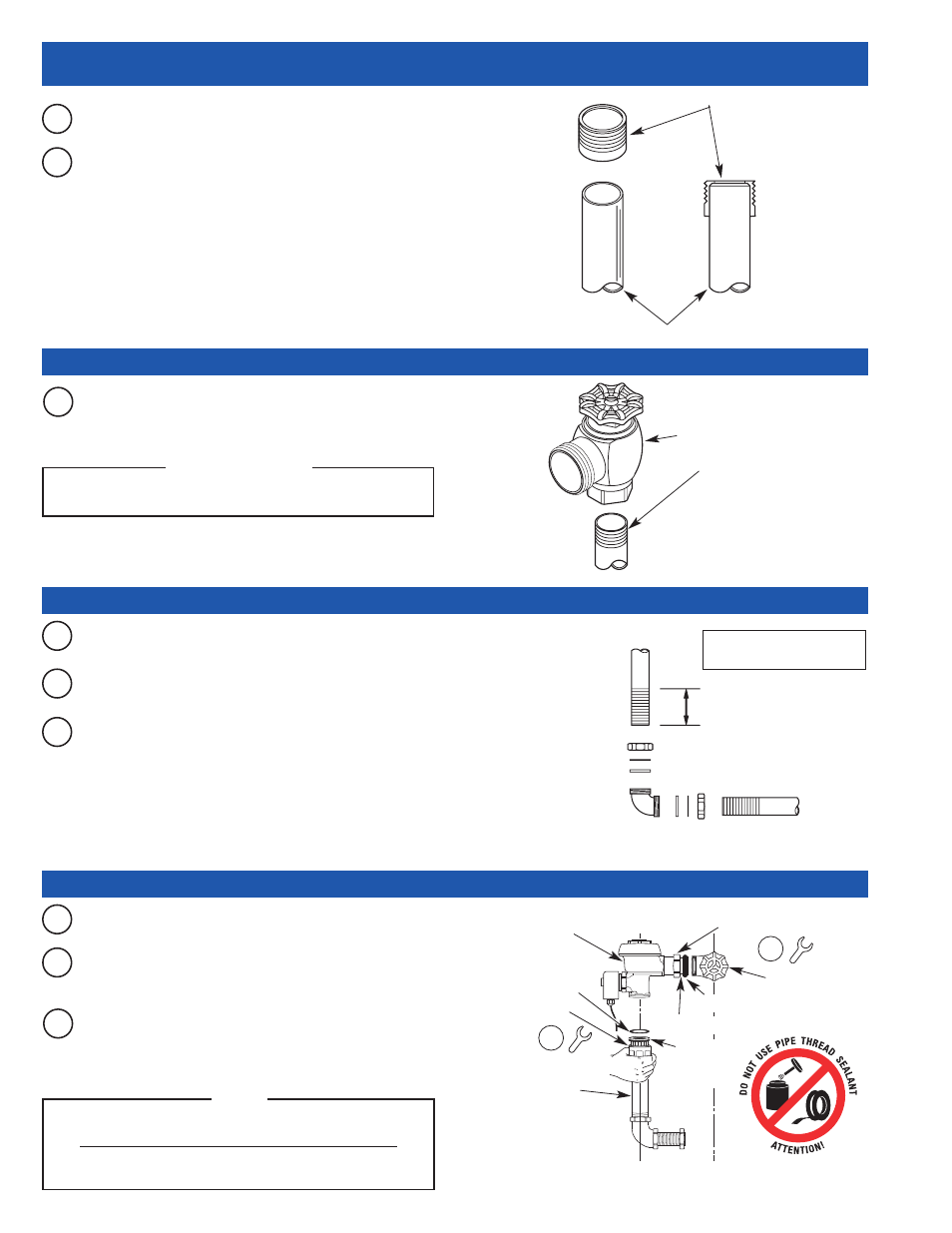

1 - INSTALL OPTIONAL SWEAT SOLDER ADAPTER (ONLY IF YOUR SUPPLY PIPE DOES NOT
HAVE A MALE THREAD)
2 - INSTALL CONTROL STOP ONTO SUPPLY PIPE
3 - INSTALL VACUUM BREAKER FLUSH CONNECTION
4 - INSTALL FLUSHOMETER
