Mitel SX-2000 Lightware
34
Note: Parameters not listed below can be left at their default settings.
•
Select an unused Trunk Service No.
•
Set COS (Class of Service) to the class of service number defined in Step 4 of the SX-2000 Light
Administration.
• Set COR (Class of Restriction) to a valid class of restriction number.
•
Set Absorb to 0 .
•
Press [ESC] then [4] to commit to changes and [ESC] then [1] to confirm the changes.
•

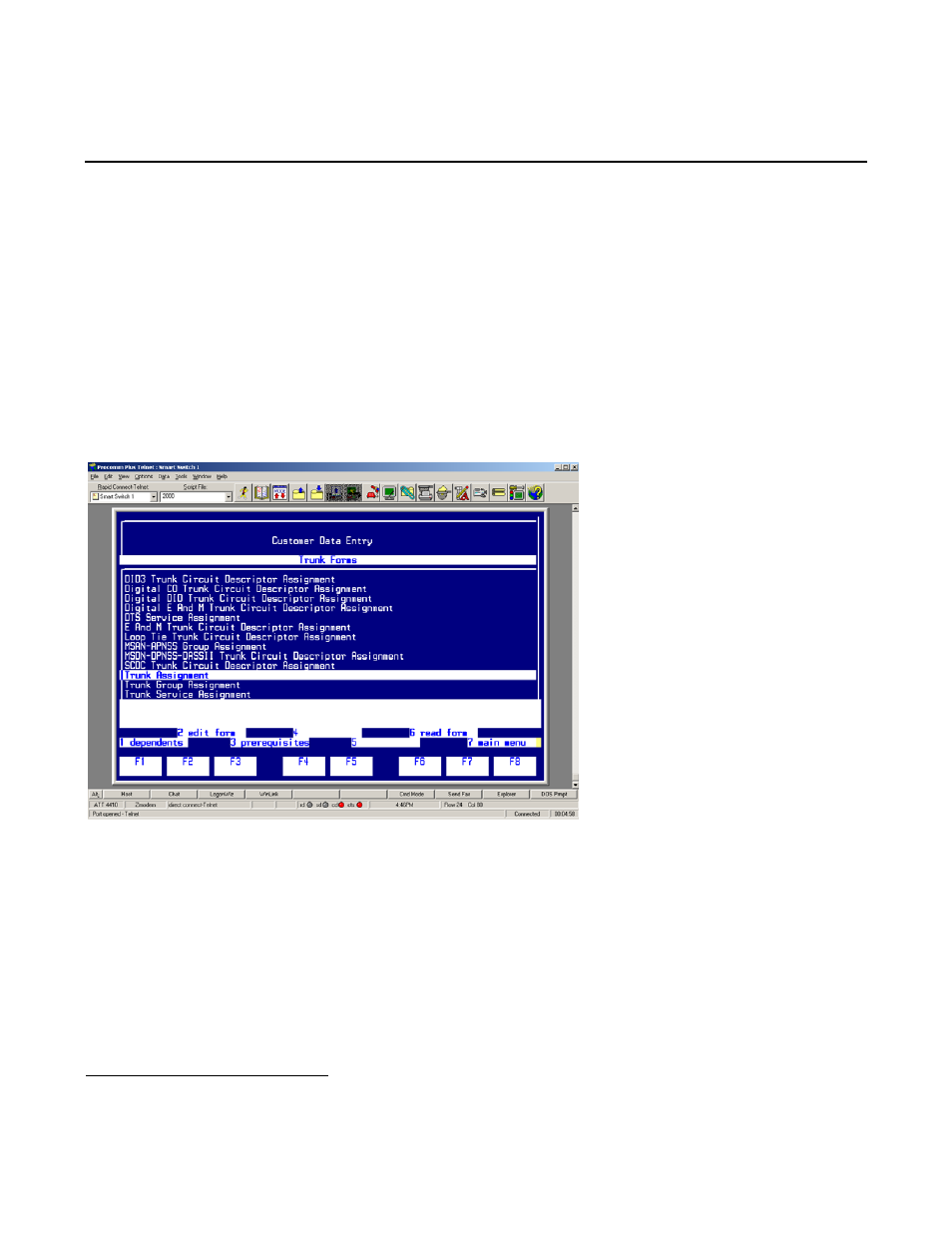

Press [ESC] then [Q] to return to the Trunk Forms menu.
Step 10: In the Trunk Forms menu, select Trunk Assignment and press [ESC] then [2] to edit the Trunk
Assignment form.
