Module wiring & connections, Hp1c module wiring when used with the vcm-x e-bus, Vcm-x component & systems wiring 98 – Orion System VCM-X E-BUS Component User Manual

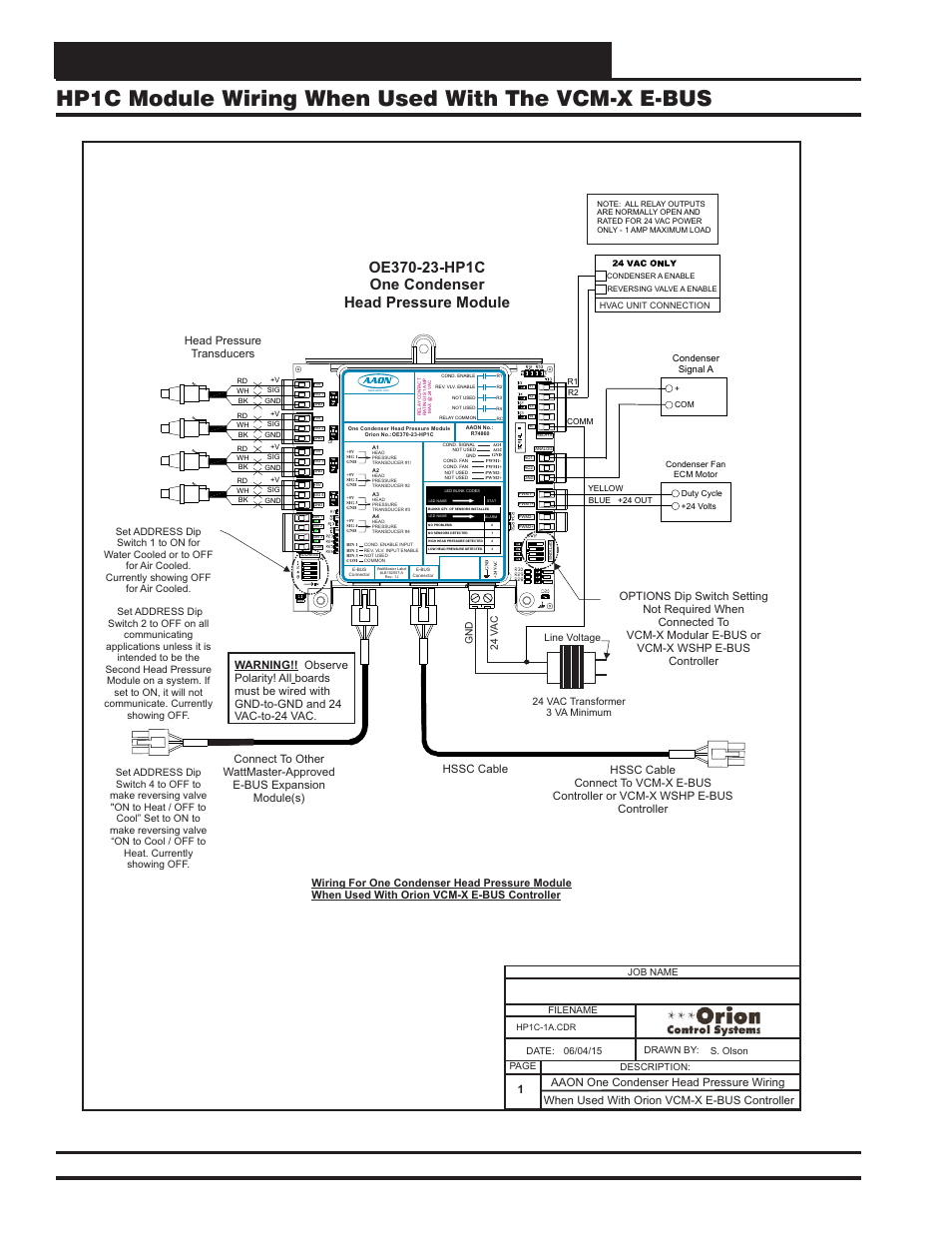

Page 98: When used with orion vcm-x e-bus controller, Aaon one condenser head pressure wiring 1, Head pressure transducers
