Communication devices, Usb-link 2 computer connections & wiring, Vcm-x component & systems wiring 80 – Orion System VCM-X E-BUS Component User Manual

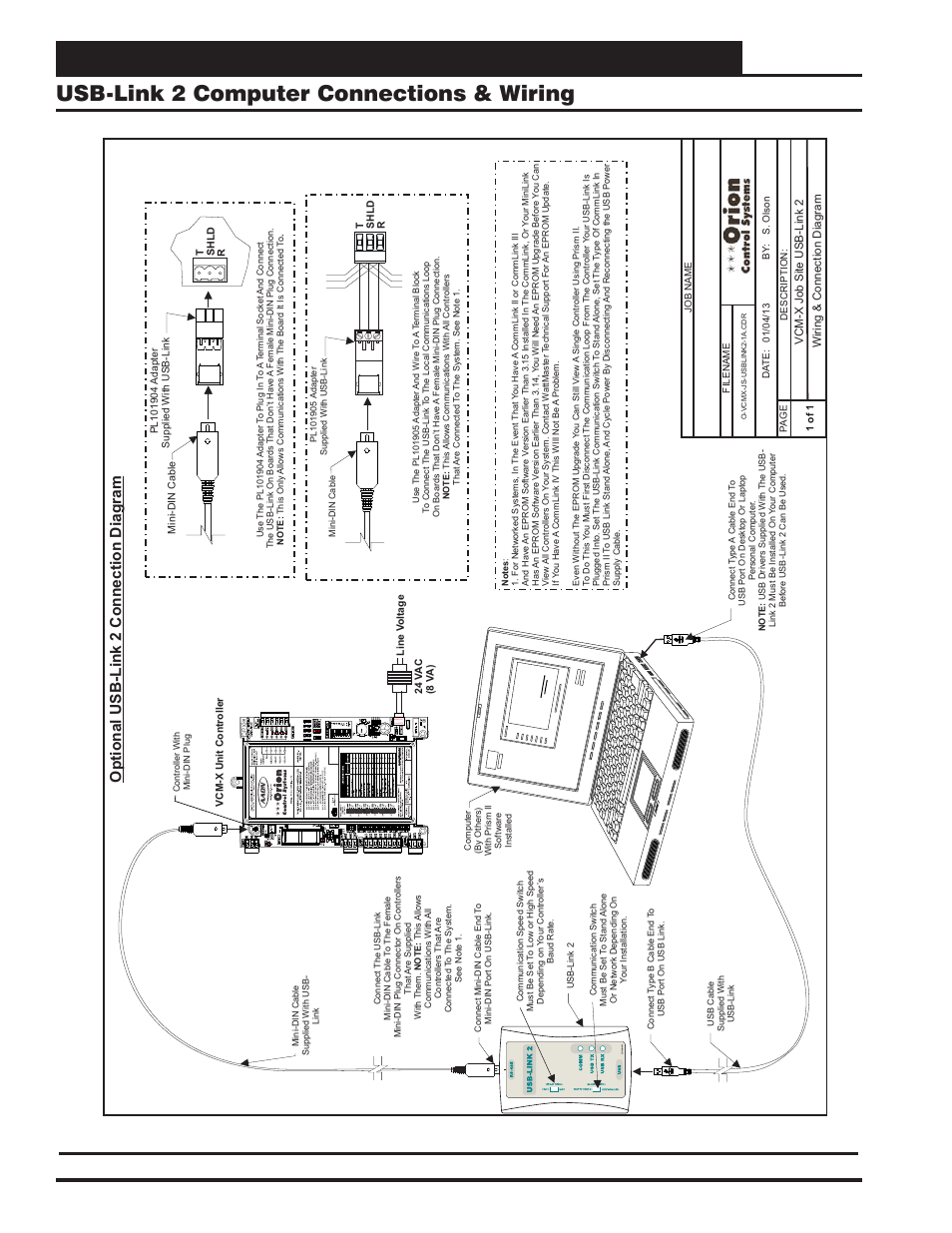

Page 80: Optional usb-link 2 connection diagram, Figure 58: computer connections using usb-link 2, Warning observe polarity
