Communication devices, System manager ts ii to vav/zone controller wiring, Vcm-x component & systems wiring 75 – Orion System VCM-X E-BUS Component User Manual

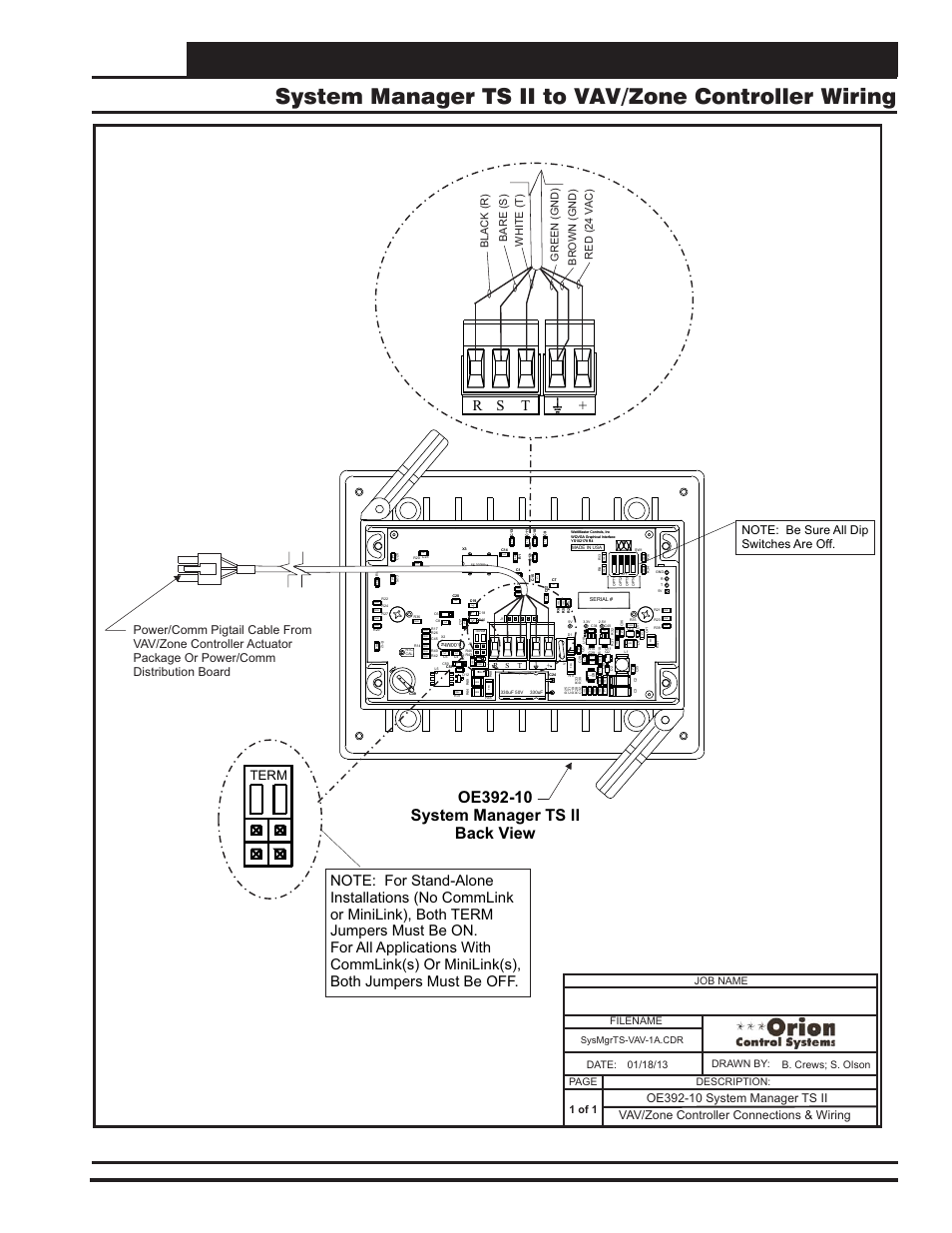

Page 75: Ltc3824, Term, Vav/zone controller connections & wiring, 1 of 1, Sysmgrts-vav-1a.cdr
