Vcm-x expansion module wiring, Return air bypass, Vcm-x component & systems wiring – Orion System VCM-X E-BUS Component User Manual

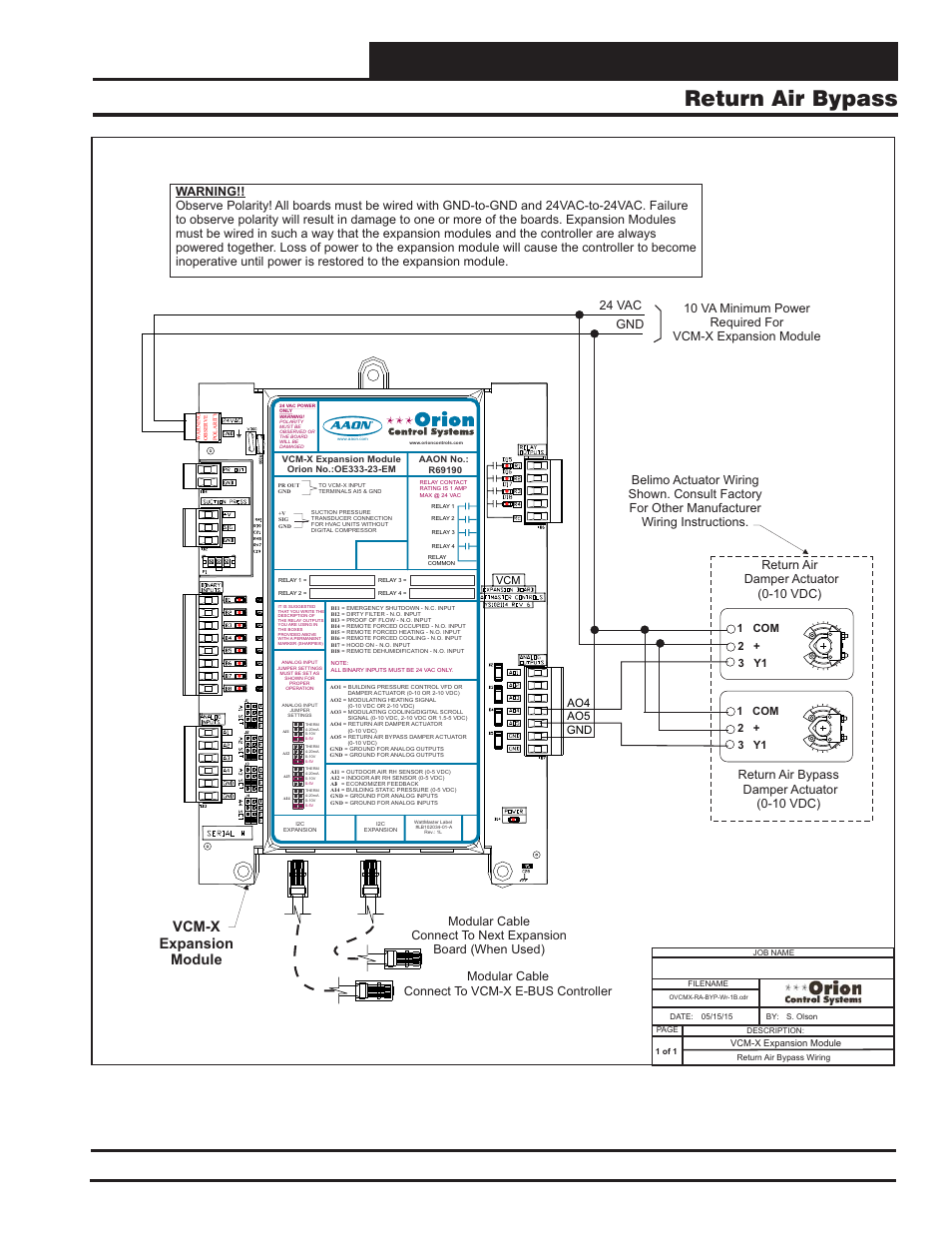

Page 55: Figure 36: return air bypass wiring, Vcm-x expansion module, Ao5 ao4 gnd, 3 y1
