Repair Section
60
10.4 Removal of Electrical Components
WARNING
• Disconnect power prior to servicing the relay board.
• Failure to follow this warning may lead to electrical shock.

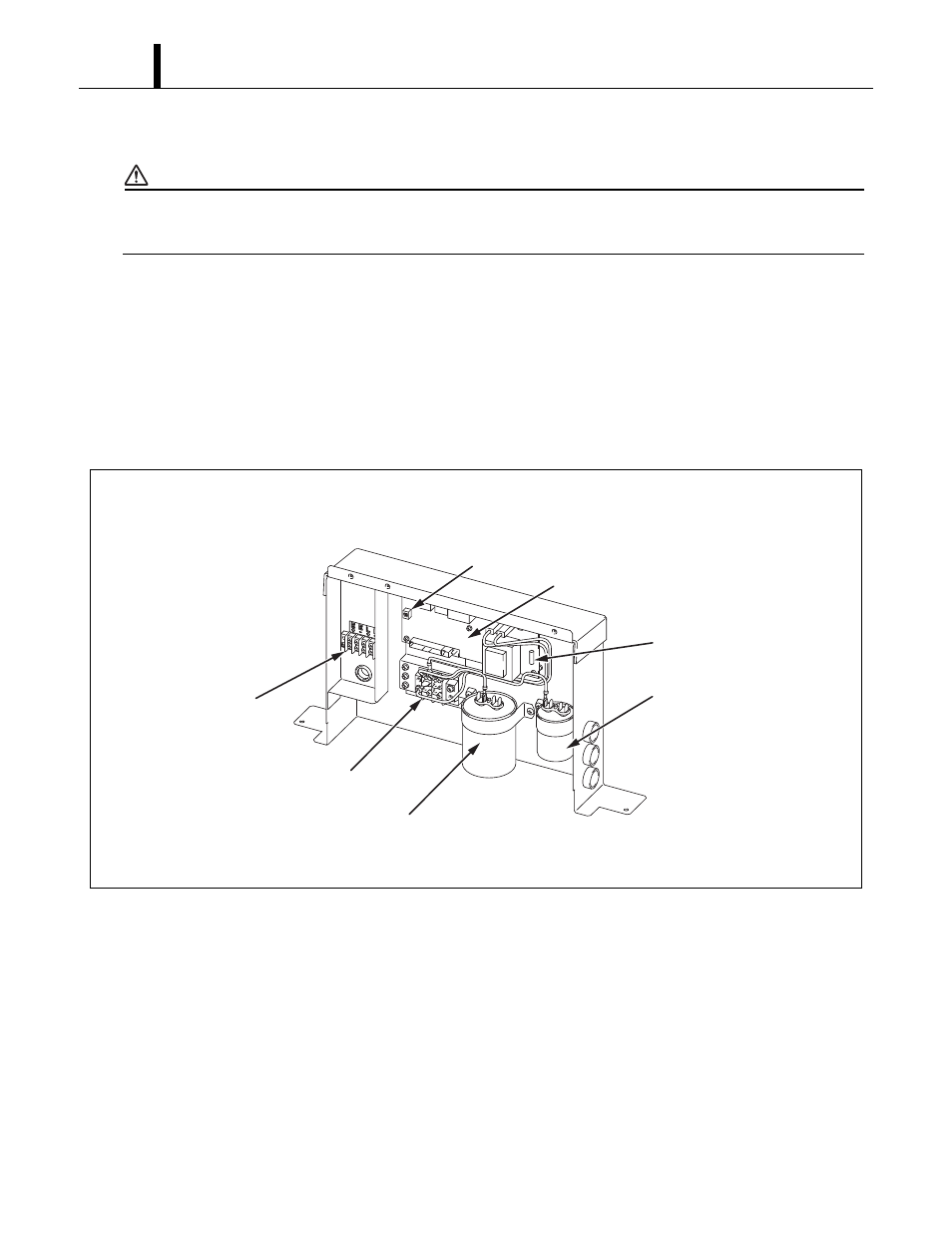

(1) Control box
1) Remove five (5) screws from service panel. (See page 56.)
2) Remove electrical parts.
- Terminal block: Remove two (2) screws from control box.
- Terminal block (signal connection): Remove two (2) screws from control box.
- Capacitor: Remove two (2) screws from control box.
ILL00138-00
Relay Board Fuse
Relay Board
Fan Motor Capacitor
Compressor Capacitor
Terminal Block
Dip Switch
Terminal Block
(Signal Connections)
