Operation Section
29
6.3 Control Box
(1) Capacitors
• The capacitors are used to temporarily boost the power output available to the fan motor and
the compressor at start-up.
• The specifications of each capacitor are listed below:
Capacitor Application Voltage Rating Capacitance
Fan Motor 370 VAC 7.5 µF
Compressor 370 VAC 60 µF

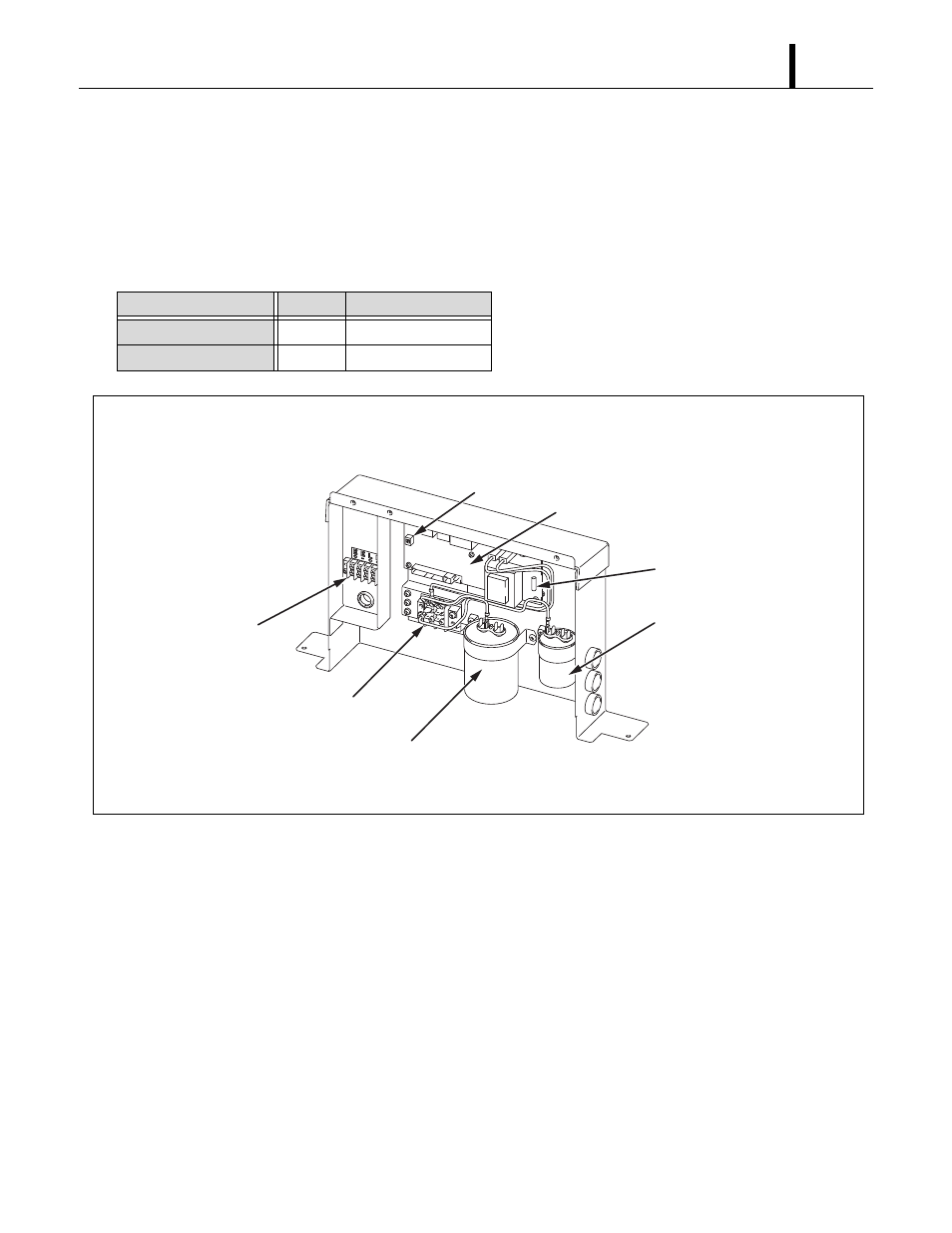

ILL00138-00
Relay Board Fuse
Relay Board
Fan Motor Capacitor
Compressor Capacitor
Terminal Block
Dip Switch
Terminal Block
(Signal Connections)
