Operation Section
10
2.3 Characteristics
• All characteristic values are within ± 10 % tolerance.
• EWT shown in the graphs is an abbreviation of “Entering Water Temperature”.

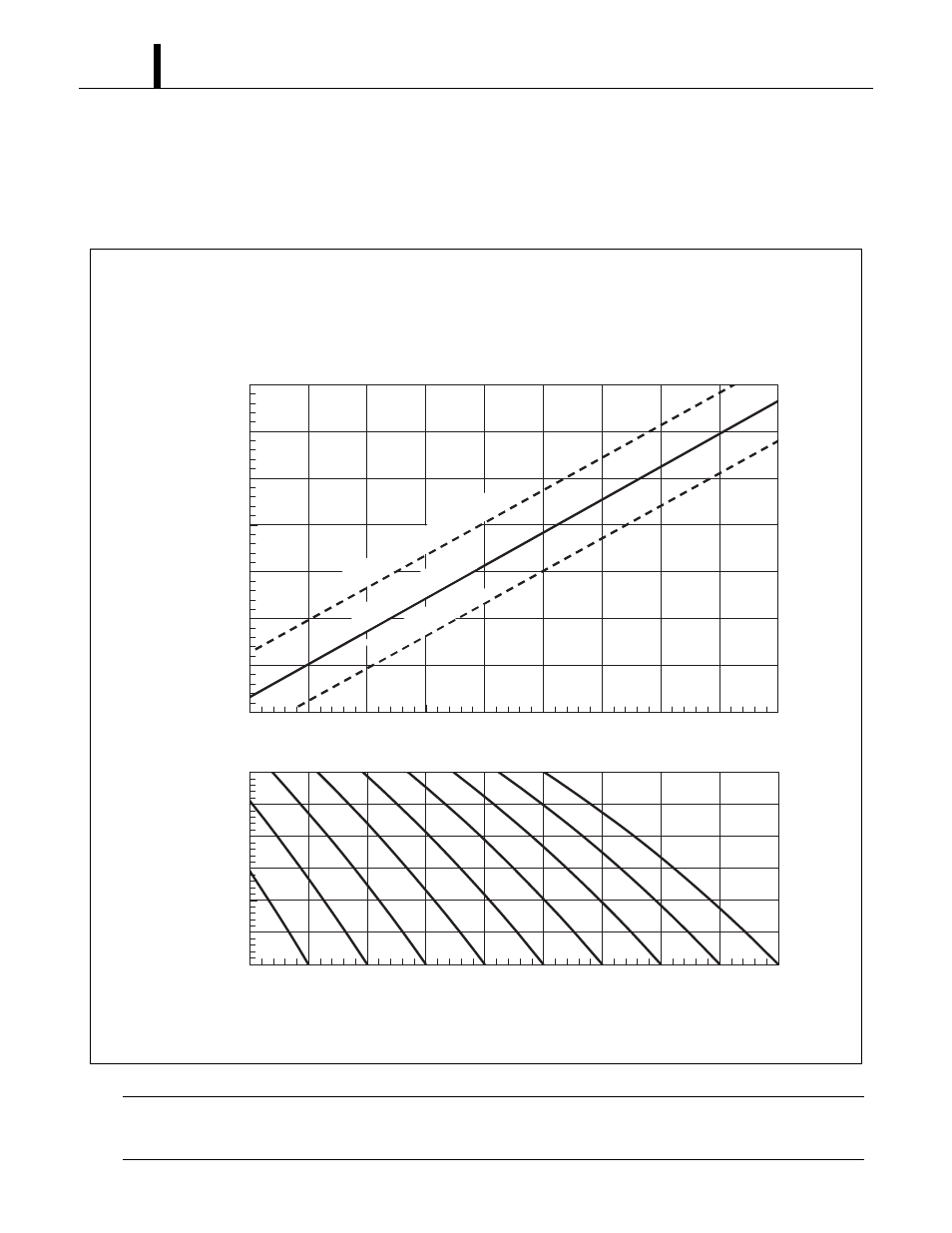

(1) Cooling capacity curve
< NOTE >
Cooling capacity listed at water flow rate of 4.8 GPM. Water Flow rate has small effect on cooling
capacity. (Approx. 1 % effect at the range from 2.4 to 7.2 GPM.)
ILL00222-00
10
24
50
(10)
55
(13)
60
(16)
65
(18)
70
(21)
75
(24)
80
(27)
85
(29)
90
(32)
12
14
16
18
20
22
Wet Bulb Temp. °F (°C)
Cooling Capacity at 4.8 GPM (kBtu/h)
40
50
60
70
80
90
100
Relative Humidity (%)
95
(35)
EWT
: 85 °F (29 °C)
EWT
: 58 °F (14 °C) or lower
EWT
: 90 °F (32 °C)
Dry Bulb Temp. °F (°C)
