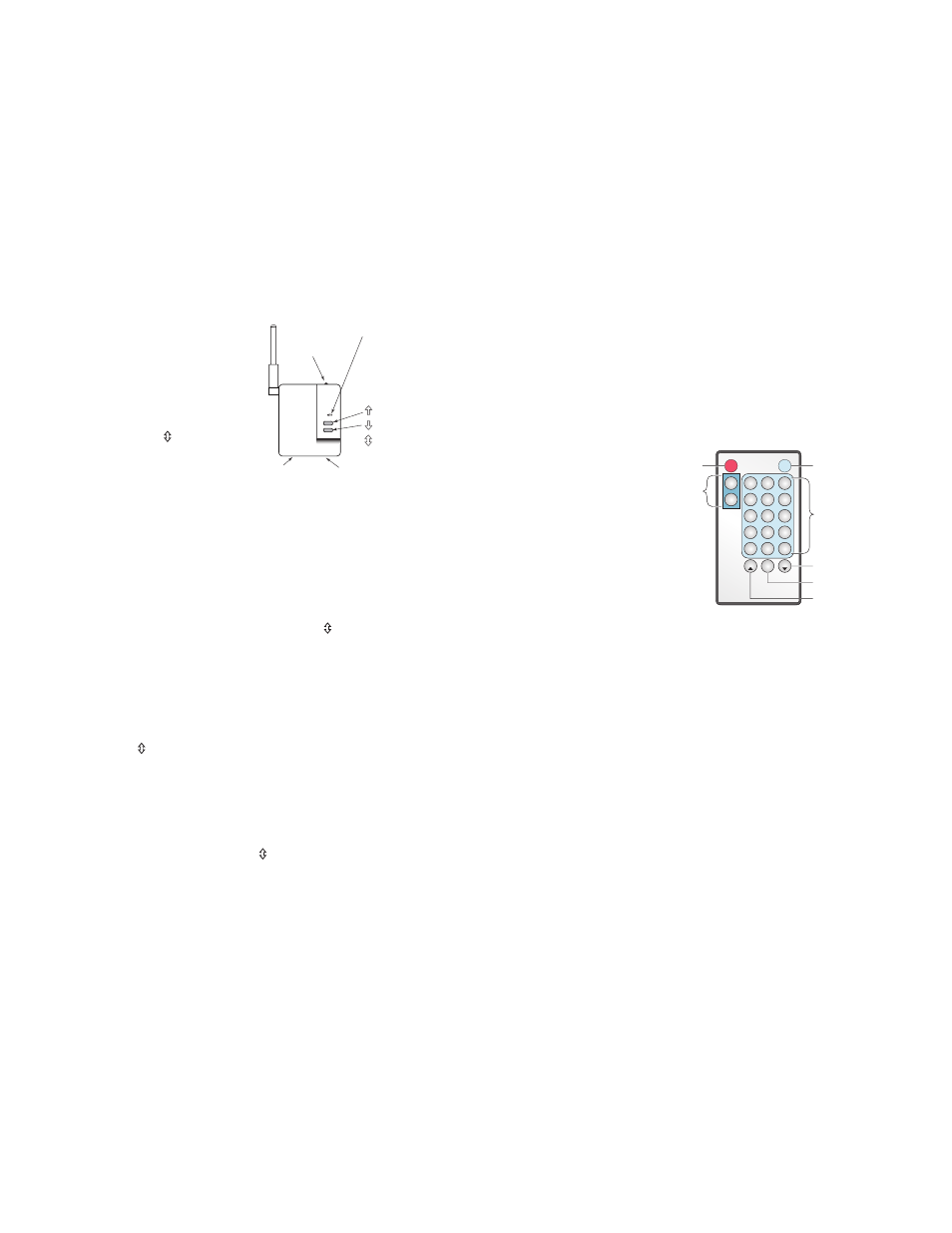

BINDING THE MRIR1 INTERFACE

Set House ID and Room Binding

1. Go to a previously configured Room Scene Controller

in the room where the MRIR1 is to operate. Start a

Room Binding by pressing the UP/DN buttons on the

controller. If the MRIR1 doesn’t need to be bound to

a room (it will only be used to execute house scenes)

you can start the binding from any device in the

house, confirm that the house binding is successful,

then skip to step 3.

The MRIR1 house binding is successful when it’s

LED starts blinking green.

2. To include the

MRIR1 in the room

where the binding

was initiated, go

to the MRIR1 and

simultaneously

press and

hold it’s

buttons while the

house binding is

still active (LEDs

on all devices in

the house are blinking).

The MRIR1 room binding is successful and it is

included in the room when it’s LED starts blinking

yellow (amber).

3. When binding is complete, terminate the

binding from the device that started the binding

(simultaneously hold and hold the buttons until

the unit stops blinking).

Setup of the MRIR1 is complete.

Changing House/Room ID

To change the House ID, reset the MRIR1 to its factory

default state (“0” for House and Room ID). Press and

hold the buttons for 10 seconds, until the LED turns

solid yellow (amber). When the unit returns to defaults, it

can accept a new House ID.
To change the Room ID (when the House ID is correct),

initiate a Room Binding from a device with the

desired Room ID. Include the MRIR1 into the Room by

simultaneously pressing it’s buttons to include or

exclude it. When the MRIR1 is included it’s LED blinks

yellow (amber). When excluding the MRIR1 from a room

the Room ID is cleared leaving the device with no Room

ID.
When a House ID has been assigned but the Room ID is

at the factory default of “0” then in the normal operating

mode the MRIR1 will show a Red LED error condition

indicating that the unit is not yet bound to a specific

room.

THE IR PROGRAMMING REMOTE

The Programming Remote supplied with the MRIR1 uses

the Legrand CAD IR data protocol. This protocol is built

into the MRIR1 interface, which translates the codes

from the IR remote to Top Dog commands for wireless

transmission to the Miro network.
You can use the Programming Remote to directly

control the MRIR1, or you can use the Programming

Remote to teach a “learning remote” the codes. Refer

to the instructions supplied with the learning remote

for programming and protocol information. For more

information about remotes, go to www.RemoteCentral.

com.

Teaching Mode Procedures

To teach a learning remote using the Programming

Remote you must set the Programming Remote to the

desired Mode. This toggles the IR codes sent by the

buttons between Room and House scenes.
1. Press and release

the desired Mode

button to send

Miro Room or

House On/Off or

scene commands.

Depending on the

Mode selected

some of the

buttons in the

scene area may

become inactive,

for example there

are only 10 House

scenes. Therefore,

in House mode

scene buttons 11-15 are inactive.

2. Place the learning remote and the Programming

Remote about 6 to 12 inches apart, with the IR

transmit/receive lenses aimed at each other.

3. Put the learning remote in Learn mode (according to

the instructions provided with the remote).

4. Press a button on the learning remote that you want

to teach a function or scene then press the button on

the Programming Remote that invokes the desired

function or scene. Repeat as necessary until the

remote is fully programmed.

5. Terminate the Learn mode on the learning remote

then test operation of the system using the learning

remote.

Status LED
Green
Yellow (amber)
Red

Pushbuttons
Top
Bottom
Press both
simultaneously

Internal
IR Receiver

Jack for
External IR Receiver

Power Supply Jack
