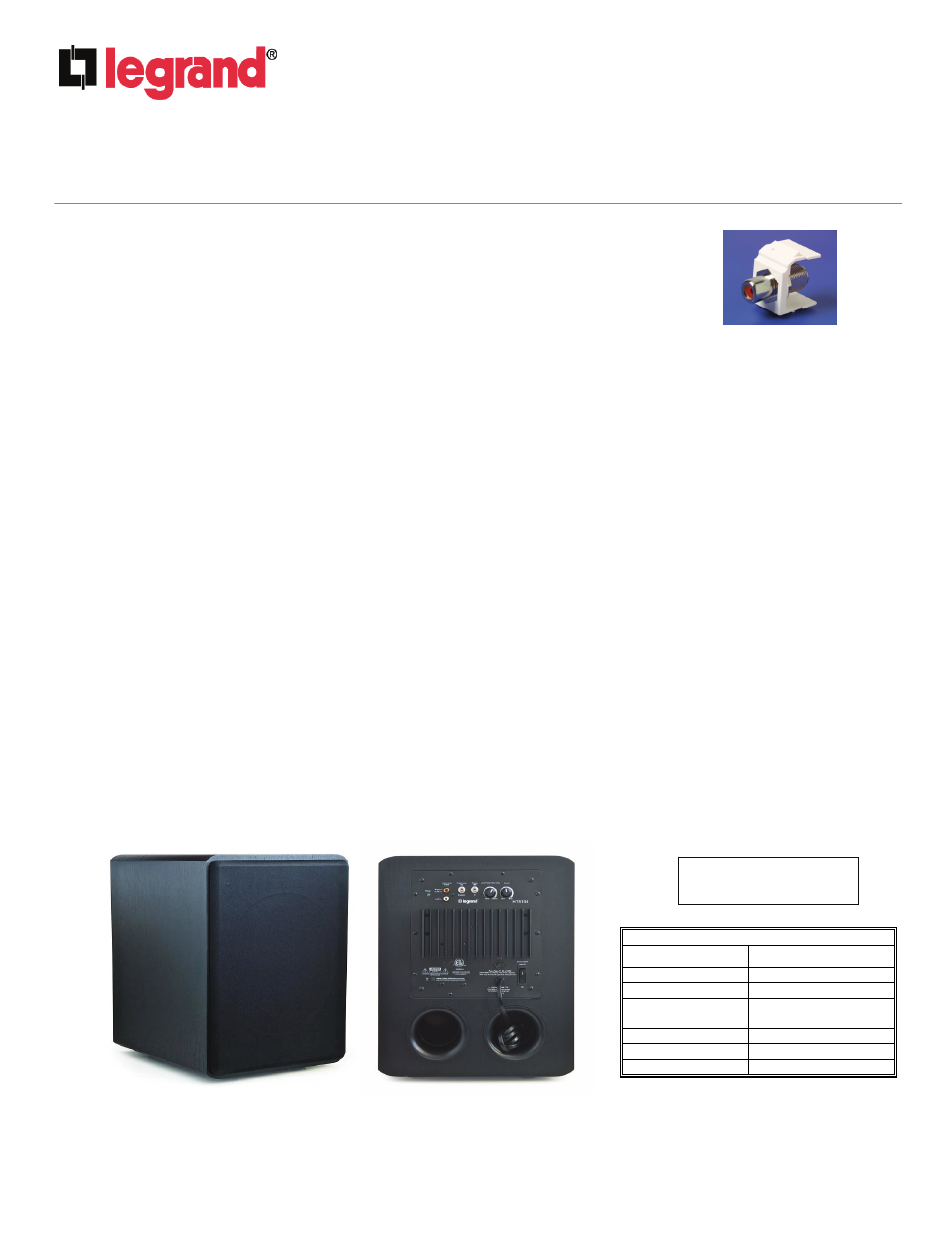

INSTRUCTION / INSTALLATION SHEET
evōQ™ 5000 Home Theater 10” 150W
Sub-Woofer
IS-0260 Rev. E
301Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2010 by Legrand All Rights Reserved. Page 2 of 2
B. “Trim-out” steps:
1. Terminate both ends of the RG6QS coax cables with
appropriate ‘F” connectors and use RCA to ‘F’ connector
inserts, (see Figure 3).
NOTE: The HT5104 includes a L.F.E. (Low Frequency Effect) input – “Right In” RCA Line Level
input. For receivers with an L.F.E. output, both left and right audio signals will be carried on the
L.F.E. output to the sub-woofer (no connection to the “Left In” RCA connector is needed. In this
case, the “Crossover” switch can be set to the “Bypass” position, as the receiver with L.F.E.
output will control the frequency output to the sub-woofer. If the receiver does not have an L.F.E.
output (or you are unsure if it does), set the “Crossover” switch to the “On” position, and use the
“Low Pass Filter Hz” knob to adjust the frequencies reproduced by the sub-woofer (the 12 o’clock
position is recommended as a starting point). If the receiver has only one sub-woofer output, a Y-
cable (available separately) can be used to connect both “Right and Left In” Line Level RCA Input
connections on the rear of the sub-woofer.
NOTE: The crossover adjustment on the evōQ™ 5000 10” 150W Sub-Woofer is used to determine
the frequency point (cutoff point of the low pass filter) at which source input goes to the sub-
woofer (adjustable from 50-200HZ). This adjustment is dependent on the quality of the source
equipment and quality of the rest of the speaker system. Try a variety of source material to insure
the adjustment is appropriate.
NOTE: Some amplifiers reverse the phase of sub-woofer outputs in respect to the phase of the
rest of the speaker outputs. The evōQ™ 5000 10” 150W Sub-Woofer has a “Phase” reversal switch
on the back that allows for proper phasing regardless of amplifier output. Try both positions of
the switch with bass rich content to determine which position sounds best for a particular
installation.
TIP: To determine the best location for a sub-woofer, place the sub-woofer in the location that
you normally listen to music and walk around the outside of the room until you find a spot that
seems to have the most pronounced bass output. That is the location where the sub-woofer
should be placed.
EVŌQ™ 5000 10” 150W SUB-WOOFER
Size/Type 10" Floor Mount
Efficiency Powered
Power (RMS/Peak) 150W RMS
Frequency
Response
50-200K
Woofer Type Poly Cone
Tweeter Type N/A
Drywall Hole Size N/A
Speaker
Specifications
Figure 4
Figure 3
