INSTRUCTION/INSTALLATION SHEET
lyriQ™ High Performance Keypad
Volume Control Power Distribution
Module

IS-0370 REV. O

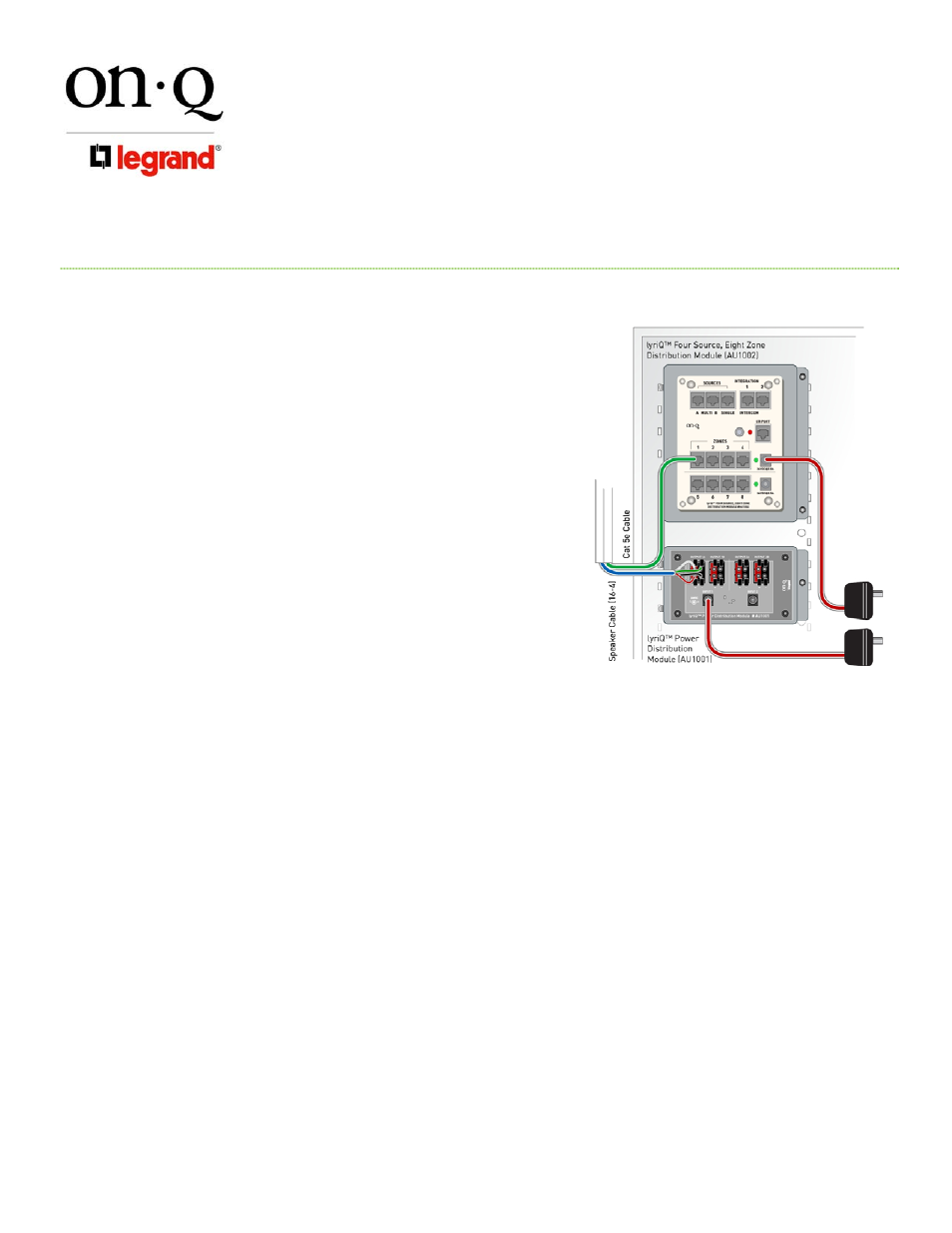

A. “Trim-out” steps: Connections in the enclosure (see Figure 3):

1) The Category 5 cable that was run to each volume control

location should be terminated with an RJ45 plug according
to the T568A wiring standard and inserted into one of the
zone output jacks of the associated lyriQ™ audio distribution
module.

2) For the 16/4 speaker wire power cable that was run to each

volume control location, strip 3/8” of insulation from each of
the four conductors and insert the red and white wires into
the red (plus) portion of TB1. Insert the stripped black and
green wires into the black (minus) portion of TB1.

NOTE: The two red connections are tied together, as are the
two black connections. They are provided in pairs to
provide flexibility of wiring.

NOTE: Electricians may prefer to think of the black and red
wires as plus and the green and white wires as minus. That
wiring will also work, as long as it is also followed at each
end of the cable.

3) After all Cat 5e and 16/4 cabling is connected, connect the one or two 24VDC power supplies to the

Power Distribution Module, and any associated power supplies to the lyriQ™ Audio Distribution Module
and plug those power supplies into an AC outlet.

NOTE: Each power supply is capable of powering up to two volume controls.

4. Important Safety Precautions:

READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE lyriQ™ AUDIO SYSTEM.

• Do not attempt to service, move or change any component of this system unless you are qualified to do so.

• This system should be installed by a qualified installer and must conform to all local building and electrical codes.

• Do not apply power to the lyriQ™ Audio System until all components have been installed and all wiring has been properly

terminated.

• Do not attempt to terminate, change or un-install any wiring without first turning off power at the lyriQ™ Audio System which

is located in the enclosure. Unplug the power transformer/s that is/are powering the lyriQ™ Audio System from the power
outlet before proceeding with wiring terminations or changes.

• Install each component of this system away from heat sources such as HVAC ducts/registers, stoves or any other heat

source.

• Do not expose any component that was designed for indoor use to moisture. Doing so can create electrical hazards or

render the component unusable. Exposure to moisture will also void the warranty on the system.

• Only use a damp cloth to clean the cover plates of the system components. Do not use vacuum cleaners, liquid or aerosol

cleaners.

Figure 3
