Specifications
Frequency Response (20Hz - 20kHz) ±0.25dB @ 300 ft. CAT5
THD .015% 20Hz - 20kHz
Signal to Noise >87dB @ 300 ft. CAT5
Power Supply 12V/5W DC 100-240VAC
iPod Dock Dimensions 3 1/4” W x 2 1/2” D x 2 1/4”H
81.3mm x 63.5mm x 57.2mm
iPod Dock Weight .4 lbs (.18 kg)
NV-RIPR-DC Dimensions 1 13/16” W x 1 3/8” D x 4 5/8” H
45.7mm x 33.02mm x 118.11mm
NV-RIPR-DC Weight .15 lbs (.068 kg)
NV-RJ45P-DC Dimensions 1 13/16” W x 1 3/8” D x 4 5/8” H
45.7mm x 33.mm x 118.1mm
NV-RJ45P-DC Weight .15 lbs (.068 kg)
Shipping Dimensions 8” W x 5 3/8” D x 8 5/8”
205mm x 135mm x 220mm
Shipping Weight 2.0 lbs (.90 kg)
Decora® is a registered trademark of the Leviton Corporation.
iPod® and iTunes® are a registered trademark of Apple Inc., registered in the U.S. and other countries.
“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been
certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

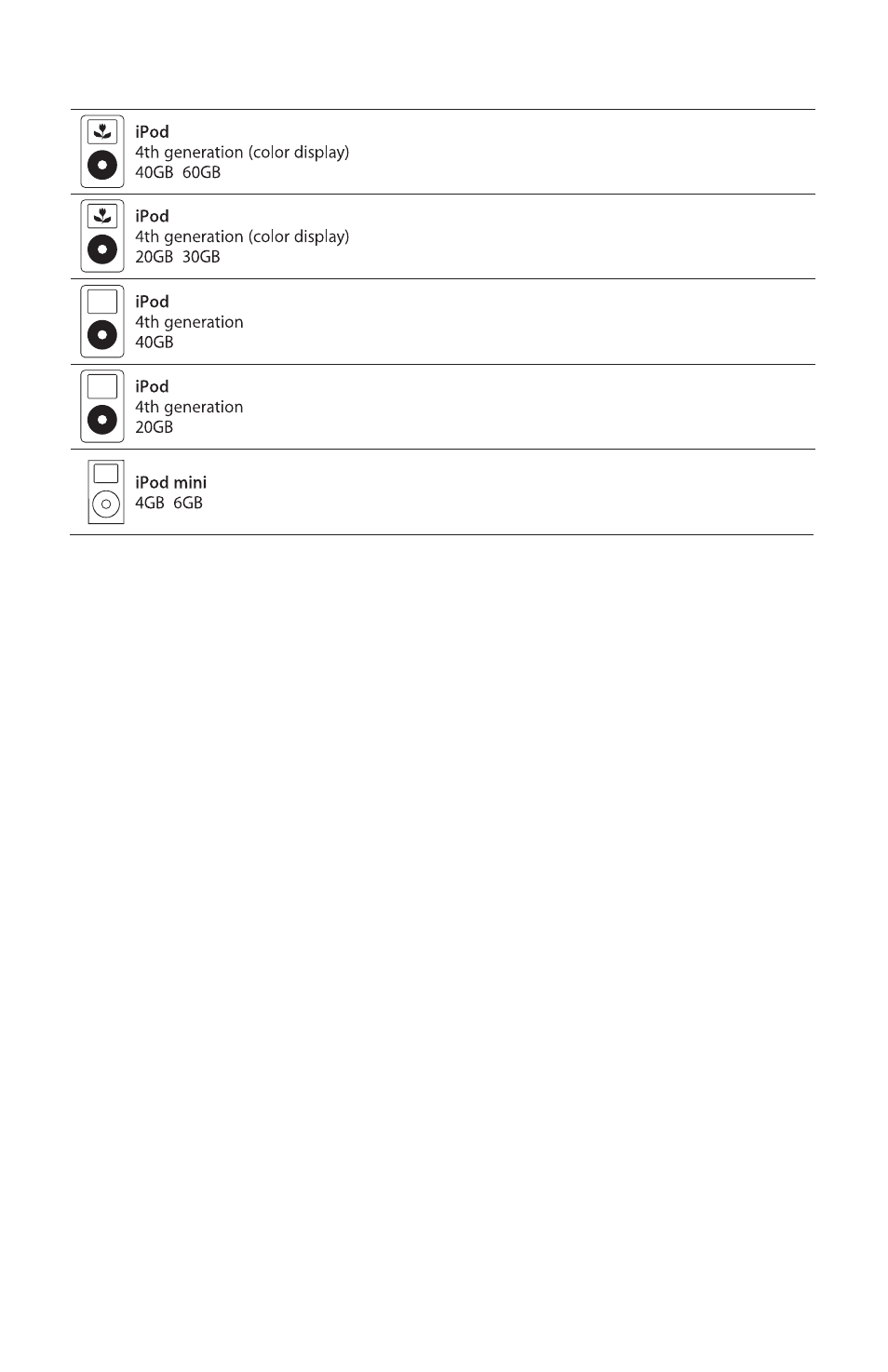

MA121G/A 1.4.1
MA119G/A 3.1.1
MA120G/A 3.1.1
MA123G/B 1.2.1
Model
Universal Dock
Adaptor
(Apple Part #) Min. iPod
Firmware
Version
MA122G/B 1.2.1
