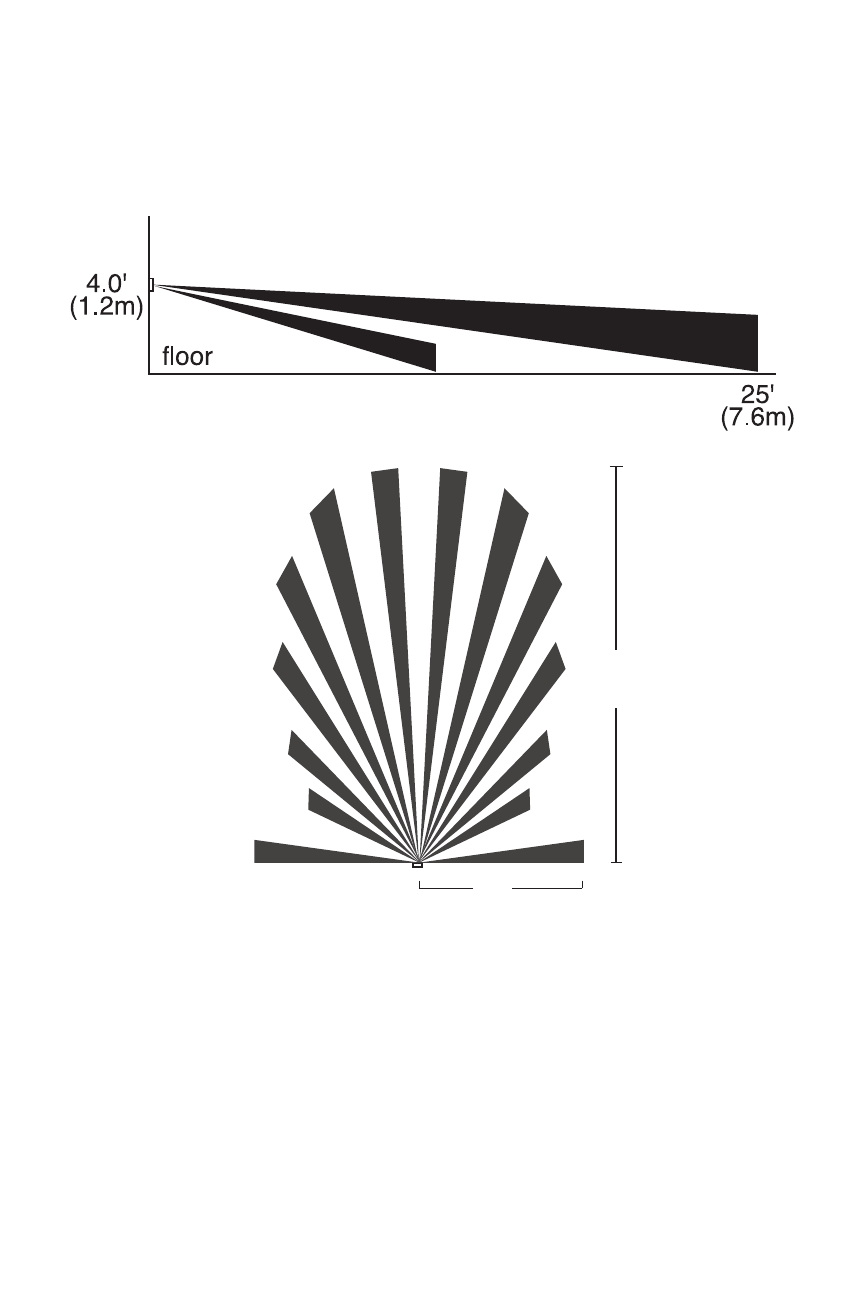

COVERAGE PATTERNS
The OSR300S will cover up to 300 sq. ft. (28m
2
). The typical recommended
coverage for desktop activity is 150 sq. ft. (14m
2
). The sensor has a two-tiered,
multi-cell viewing Fresnel lens with 180 degree field of view.
Masking the lens
Opaque adhesive tape is supplied so that sections of the sensor’s view can
be masked. This allows you to eliminate coverage in unwanted areas. Since
masking removes bands of coverage, remember to take this into account when
troubleshooting coverage problems.
25'
(7.6m)
10'
(3.0m)
Call 800.223.4185 for Technical Support
