LIMITED ONE YEAR WARRANTY
Pass & Seymour will remedy any defect in workmanship or material in Pass & Seymour products which may develop under proper and nor-
mal use within one year from date of purchase by a consumer:
(1) by repair or replacement, or, at Pass & Seymour’s option, (2) by return of an amount equal to consumer’s purchase price. Such remedy
is IN LIEU OF ANY AND ALL EXPRESSED OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE. Such remedy by Pass & Seymour does not include or cover cost of labor for removal or reinstallation of the product. ALL OTHER
FURTHER ELEMENTS OF DAMAGE (INCIDENTAL OR CONSEQUENTIAL DAMAGES) FOR BREACH OF ANY AND ALL EXPRESSED
OR IMPLIED WARRANTIES INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE
EXCLUDED HEREBY. (Some states do not allow disclaimers or exclusion or limitation of incidental or consequential damages, so the above
disclaimer and limitation or exclusion may not apply to you.) ANY IMPLIED WARRANTIES INCLUDING WHERE REQUIRED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED TO THE ONE YEAR PERIOD SET FORTH
ABOVE. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)
To insure safety, all repairs to Pass & Seymour products must be made by Pass & Seymour, or under its specific direction. Procedure to obtain
performance of any warranty obligation is as follows: (1) Contact Pass & Seymour, Syracuse, New York 13221, for instructions concerning
return or repair; (2) return the product to Pass & Seymour, postage paid, with your name and address and a written description of the instal-
lation or use of the Pass & Seymour product, and the observed defects or failure to operate, or other claimed basis for dissatisfaction.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
LINE
LOAD
W
HI
TE
HO
T
W
HI
TE
HO
T
About wire connections:
Connect the LINE cable wires to the LINE terminals:
• The white wire connects to the White terminal (Silver)
• The black wire connects to the Hot terminal (Brass)
Connect the ground wire (only if there is a ground wire):
• For a box with no ground terminal (diagram not shown): Connect the LINE
cable’s bare copper (or green) wire directly to the ground terminal on the GFCI
receptacle.
• For a box with a ground terminal (diagram shown above): Connect a 6-inch bare
copper (or green) 12 or 14 AWG wire to the ground terminal on the GFCI. Also
connect a similar wire to the ground terminal on the box. Connect the ends of
these wires to the LINE cable’s bare copper (or green) wire using a wire
connector. If these wires are already in place, check the connections.
Complete the installation:
• Fold the wires into the box, keeping the ground wire away from the White and
Hot terminals. Screw the receptacle to the box and attach the wall plate.
• Go to step 8.
About wire connections:
Connect the LINE cable wires to the LINE terminals:
• The white wire connects to the White terminal (Silver)
• The black wire connects to the Hot terminal (Brass)
Connect the LOAD cable wires to the LOAD terminals:
• Remove the yellow sticker to reveal the LOAD terminals
• The white wire connects to the White terminal (Silver)
• The back wire connects to the Hot terminal (Brass)
Connect the ground wires as shown above (only if there is a ground wire):
• Connect a 6-inch bare copper (or green) 12 or 14 AWG wire to the ground
terminal on the GFCI. If the box has a ground terminal, also connect a similar
wire to the ground terminal on the box. Connect the ends of these wires to the
LINE and LOAD cable’s bare copper (or green) wire using a wire connector. If
these wires are already in place, check the connections.
Complete the installation:
• Fold the wires into the box, keeping the ground wire away from the White and
Hot terminals. Screw the receptacle to the box and attach the wall plate.
• Go to step 8.
8. Test your work
Why perform this test?
• If you miswired the GFCI, it may not prevent personal injury or death due to a
ground fault (electrical shock).
• If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will
still operate like an ordinary receptacle, but it will not interrupt a ground fault.
Procedure:
(a) Turn the power ON at the service panel. Press the RESET but-
ton fully. The RESET button should stay in. If the RESET button
does not stay in, go to Troubleshooting. If the RESET button
stays in, plug a lamp or radio into the GFCI (and leave it
plugged in) to verify that the power is ON. If there is no power,
go to Troubleshooting.
(b) Press the TEST button in order to trip the device. This should
stop the flow of electricity, making the radio or lamp shut OFF
and the GFCI’s red Trip Indicator Light (if present) come on.
Note that the RESET button will pop-out. If the power stays ON,
go to Troubleshooting. If the power goes OFF, you have installed
the GFCI receptacle correctly. To restore power, press the
RESET button.
(c) If you installed your GFCI using step 7B, plug a lamp or radio into
surrounding receptacles to see which one(s), in addition to the
GFCI, lost power when you pressed the TEST button. Do not plug
life saving devices into any receptacles that lost power. Place a
“GFCI Protected” sticker on every receptacle that lost power.
(d) Press the TEST button (then RESET button) every month to
assure proper operation.

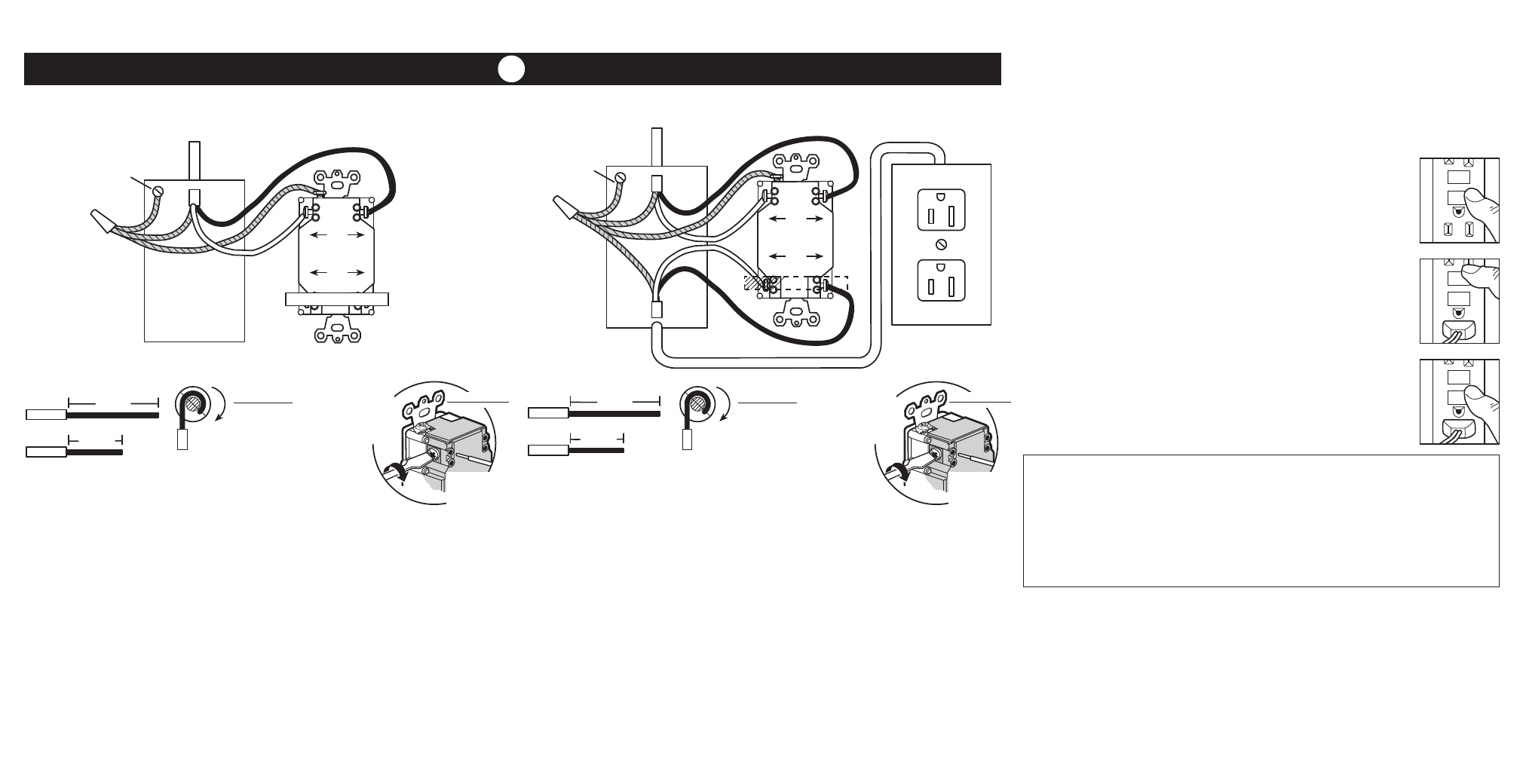

7. Connect the wires (choose A or B)…only after reading other side completely
B: Two cables (4 or 6 wires) entering the box
LINE
LOAD
W
HI
TE
HO
T
W
HI
TE
HO
T
Screw Terminal
Wire 1 inch
Side Wire
Clockwise, 2/3
of the way
around screw
LINE
W
H
IT
E
H
O
T
Back Wire
LINE cable brings
power to the GFCI
Ground connection
to box (if box has a
ground terminal)
Wire
connector
Electrical
box
Yellow sticker
remains in place
to cover the
LOAD terminals
LINE cable brings
power to the GFCI
Ground connection
to box (if box has a
ground terminal)
Wire
connector
Electrical
box
LOAD cable feeds power to
other receptacles/outlets
Screw Terminal
Wire 1 inch
Back Wire Holes
Wire .6 inch
Back Wire Holes
Wire .6 inch
A: One cable (2 or 3 wires) entering the box
OR
TROUBLESHOOTING
Turn the power OFF and check the wire connections against the appropriate
wiring diagram in step 7A or 7B. Make sure that there are no loose wires or
loose connections. Also, it is possible that you reversed the LINE and LOAD
connections. LINE/LOAD reversal will be indicated by power remaining ON at
the GFCI and by the RESET button not staying in when pressed. Reverse the
LINE and LOAD connections if necessary. Start the test from the beginning of
step 8 if you rewired any connections to the GFCI.
TESTTEST
RESETRESET
TESTTEST
RESETR ESET
TESTTEST
RESETRESET
1. Insert wire
to bottom
of hole.
2. Securely
tighten screw
beneath wire
hole to retain
inserted wire.
Side Wire
Clockwise, 2/3
of the way
around screw
LINE
W
H
IT
E
H
O
T
Back Wire
1. Insert wire
to bottom
of hole.
2. Securely
tighten screw
beneath wire
hole to retain
inserted wire.
