Products Covered: AL3000, AL3300
AL3000/AL3300
Mounting Straps & Cover Kit
I N S T A L L A T I O N I N S T R U C T I O N S
Installation Instruction No.: 1 007 588 – February 2008
IMPORTANT: Please read all instructions
before beginning.

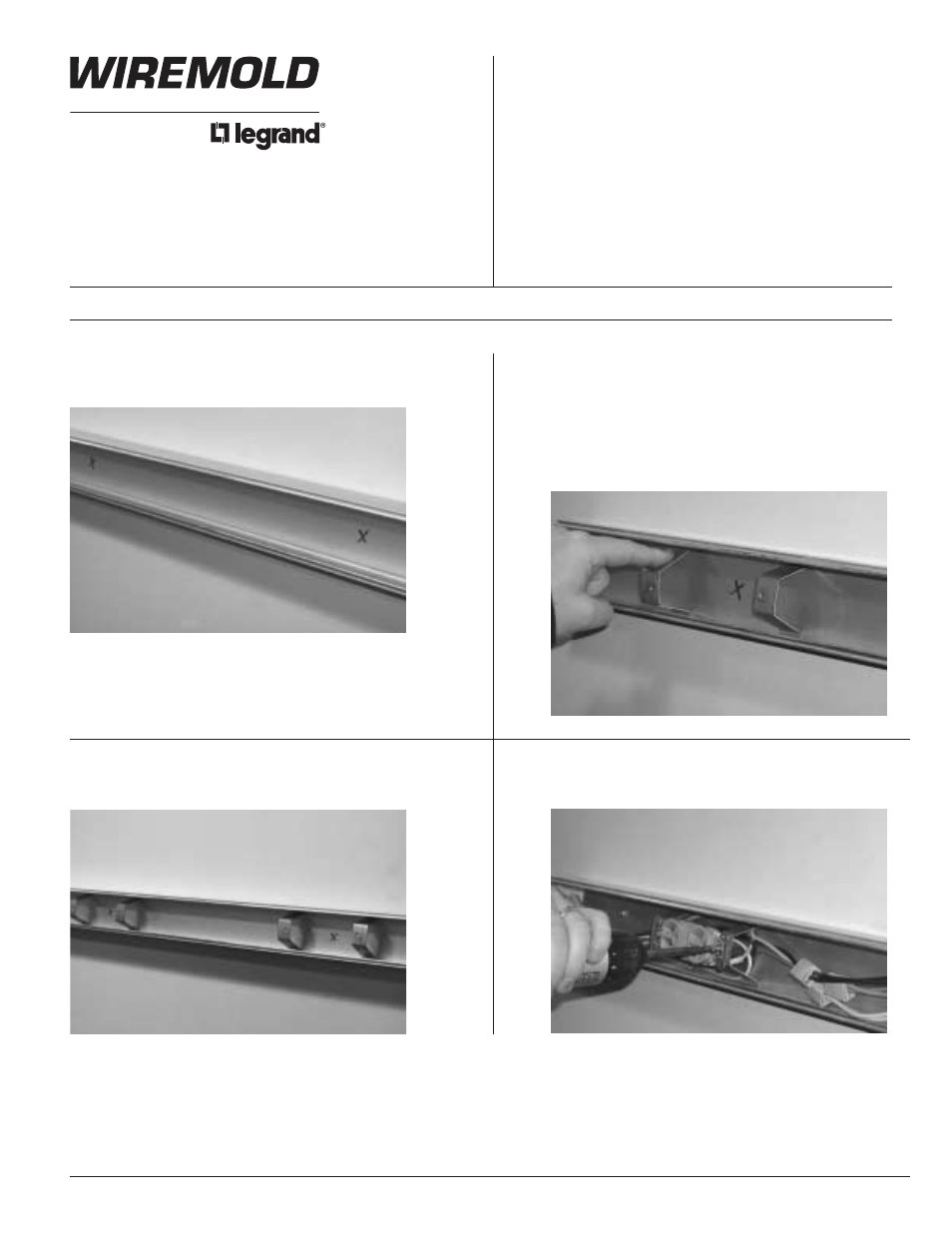

Step 3 Install device mounting straps (2 for each
device) at those locations.
a. Engage device straps to side walls of race-
way base.
b. Tuck flanges of strap underneath the lower
ridge of the raceway base one leg at a time.
Step 1 Install raceway base.
Step 2 Mark locations for devices.
NEW INSTALLATION
Step 5 Wire all devices and mount to straps. Step 4 Position straps at appropriate mounting
distances for the device.
