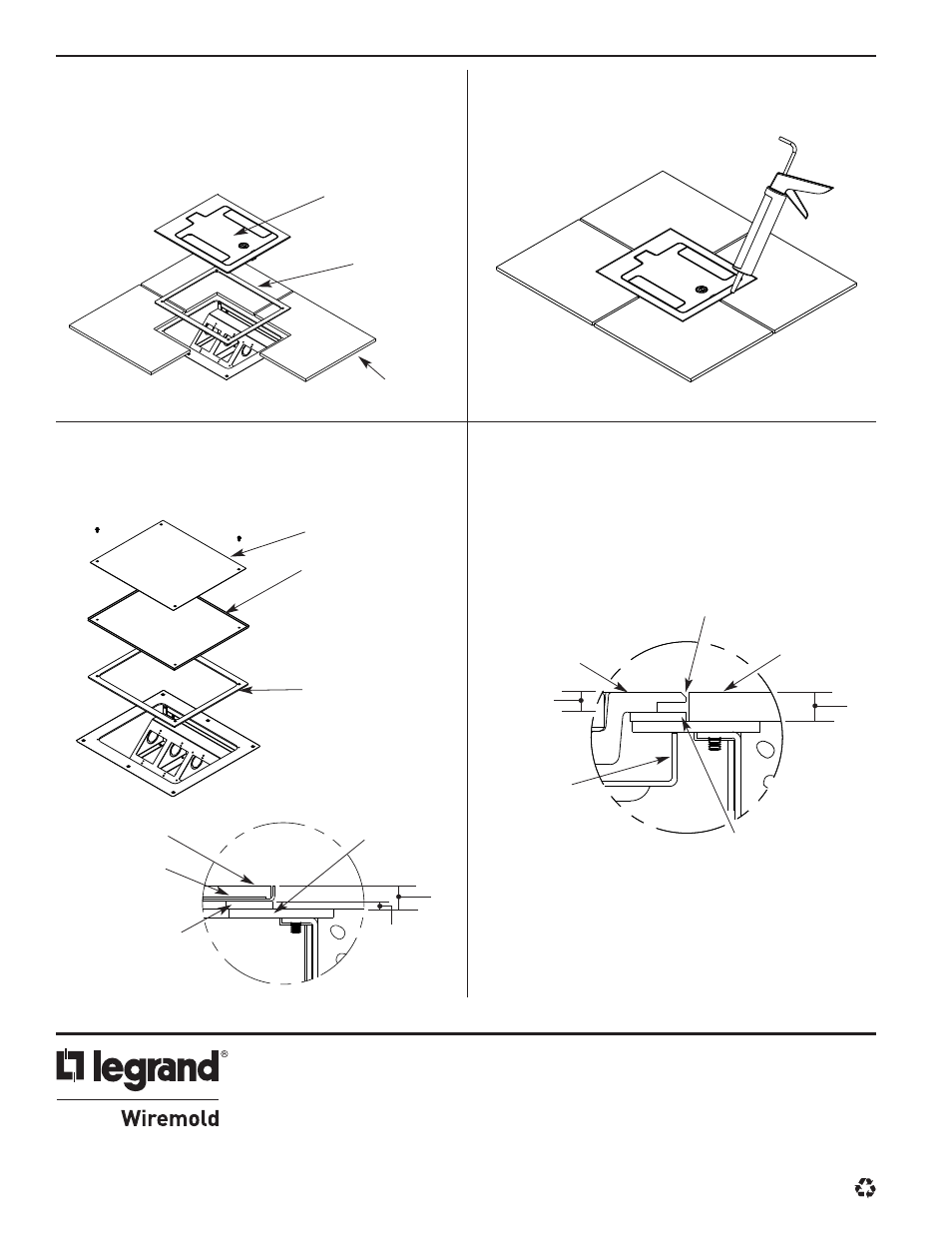

TILE INSTALLATIONS
Step 17 Cover flange is 1/4" thick. Use 1/8" spacer, Cat.
No. RFB119-TS, for 3/8" tile installations. Use two
spacers for 1/2" tile installations. Mount cover to
box as shown in Steps 14 and 15. See illustration
in Step 20 Step 18 Use grout and/or silicone caulk between edges
of flange and tile.
BARE CONCRETE & TERRAZZO INSTALLATIONS
Step 19 Install pan prior to pouring floor. Pan is 1/4" tall.
Use in conjunction with spacers to obtain 3/8"
and 1/2" heights.
Step 20 After concrete or terrazzo has cured, mount cover
to box as shown in Steps 14 and 15. Apply
sealing compound around perimeter of cover, as
shown in Step 18.
Cat. No.
RFB119-BTC
Cover
Cat. No.
RFB119-PAN
1/4" tall
Cat. No.
RFB119-TS
1/8" thick
Original mudcap
placed inside
terrazzo pan
Top of box
(flush with
concrete)
3/8"
1/8"
3/8" Tile
Cat. No.
RFB119-TS
(1/8" Thick)
Sold Separately.
Not required for
1/4" tile.
Original mudcap and
(2) mounting screws
Cat. No. RFB119-PAN
(sold Separately) 1/4"
tall. Used to dam
opening for installation
of cover during terrazzo
pour. Use RFB119-TS
spacers for floors
greater than 1/4" thick
Cat. No. RFB119-TS
(sold Separately) 1/8"
thick. Not required for
1/4" terrazzo. Use (1)
for 3/8" and (2) for 1/2"
thick floors.
NOTE: Remains in place during
cover installation
Seal edge of
cover with
silicone or caulk
Cover
Mounting
Bracket
Cover Flange
Terrazzo/Tile
1/8" Spacer
1/4"
3/8"
DETAIL VIEW OF FINISHED INSTALLATION
