R
125 EUGENE O'NEILL DRIVE
NEW LONDON, CT 06320
TEL: 860-445-3800
FAX: 860-405-2990
WWW.ORTRONICS.COM

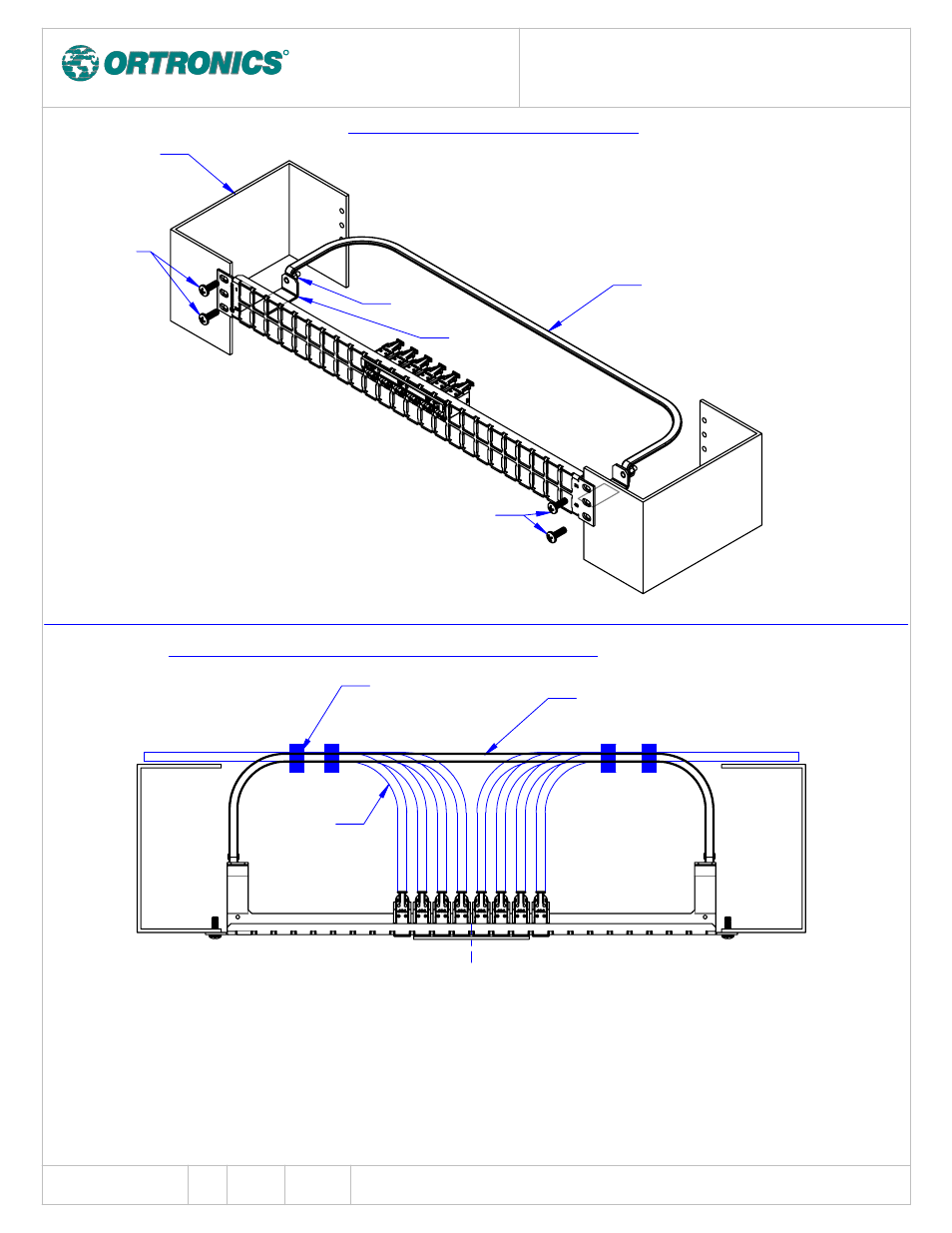

SIMULATED RACK
SECTION
WITH NUTS PROVIDED ATTACH WIRE
MANAGEMENT BAR TO PANEL BRACKETS.
TIGHTEN NUTS.
NUT
PANEL
BRACKET
WIRE
MANAGEMENT BAR
PANEL
SCREWS
PANEL
SCREWS
WIRE
MANAGEMENT BAR
PANEL MOUNTING INSTALLATION
CABLE MANAGEMENT INSTRUCTIONS (TOP VIEW)
BEND
RADIUS*
* THE MINIMUM CABLE BEND RADIUS IS 4 TIMES THE OUTSIDE CABLE DIAMETER.
HOOK LOOP TIE WRAPS SHOULD BE USED TO ATTACH THE CABLES TO THE WIRE
MANAGEMENT BAR. THE CABLE AT THE EDGE OF THE PATCH PANEL SHOULD BE
ATTACHED TO THE CABLE WHICH HAS ALREADY BEEN TIE WRAPPED TO THE WIRE
MANAGEMENT BAR.
HOOK LOOP TIES
ATTACH PANEL TO RACK WITH
SUPPLIED SCREWS.
TITLE:
INSTRUCTION SHEET #:
REV:
ECN #:
SHEET:
HDJ PANEL INSTALLATION INSTRUCTIONS
71601790
01 04319
PG 2 OF 2
