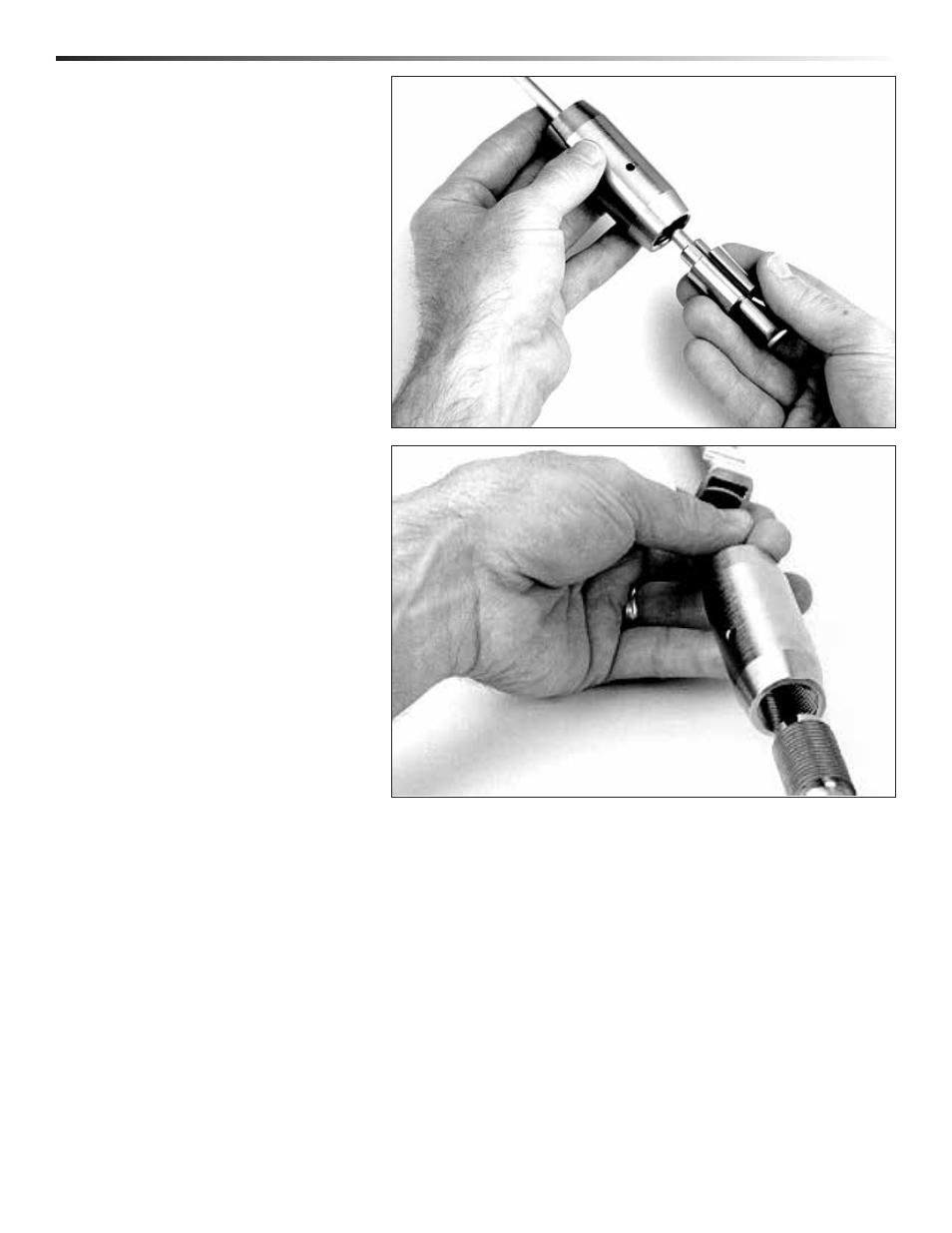

Make sure halyard swivel and drum assem-
bly have been slipped on the foils.
Slip the rod adapter sleeve onto the rod.
Sandwich the nosepiece over the rod and
insert into the main body, narrow end first.
Jiggle the sleeve or use a small screwdriver
to push the nosepiece completely into
sleeve.
TIP: Sight through the pin hole to find the
optimum thread engagement. Make sure
the stud is threaded far enough so the
pin is securely seated in the slot, yet
not threaded too far to block the pin.
Put several drops of the blue Loctite ® on
the large threads of the stud. Thread the
stud into the main body until the slot aligns
neatly with the hole in the main body.
Assembly Toggle/Terminal
