Optional accessory wiring schematics, Day timer, Remote panel – Greenheck ERCH (476054) User Manual

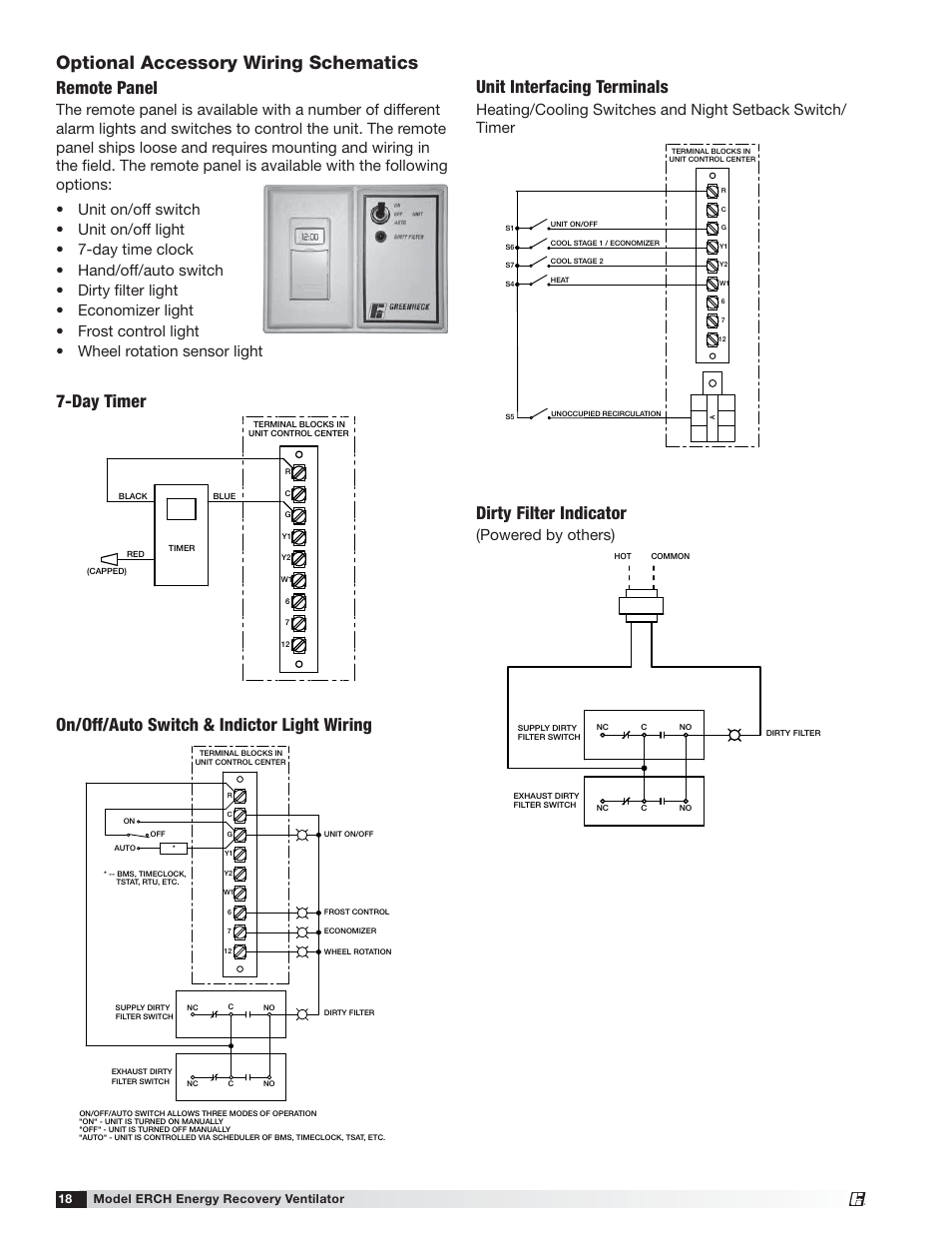

Page 18: Dirty filter indicator, Unit interfacing terminals, On/off/auto switch & indictor light wiring, Powered by others)
