Retro-fit Models
The appropriate RED ALERT ® retrofit models can be installed in Code Blue, Ramtel, or Talk-A-Phone
enclosures utilizing a six-hole mounting pattern.
1. Remove the back box from the front cover.
2. Feed the telephone line through either of the cable entry holes on the back box.
3. Re-install the back box.
4. The telephone line is equipped with a USOC RJ11C-type modular connector. (An inline coupler is
provided for use, if necessary.) Plug the connector into the mating connector inside the enclosure.
5. Allow the telephone a minimum of 35 seconds to initialize.
6. Using the “Setup” section of this manual,
 Configure the hardware as required. Refer to the “Hardware Configuration” section on page 21
for details.
 Adjust the audio levels if necessary. Refer to Figure 23 for “Speaker Volume” and “Microphone
Sensitivity” potentiometer locations.
 Perform the initial programming. Refer to the “Standard Mode Programming” section on page
30.
7. Verify operation by calling to and from another phone.
8. Complete the installation by attaching the front panel assembly to the rear enclosure using the
security screws, 10–12 in-lbs. of torque recommended.

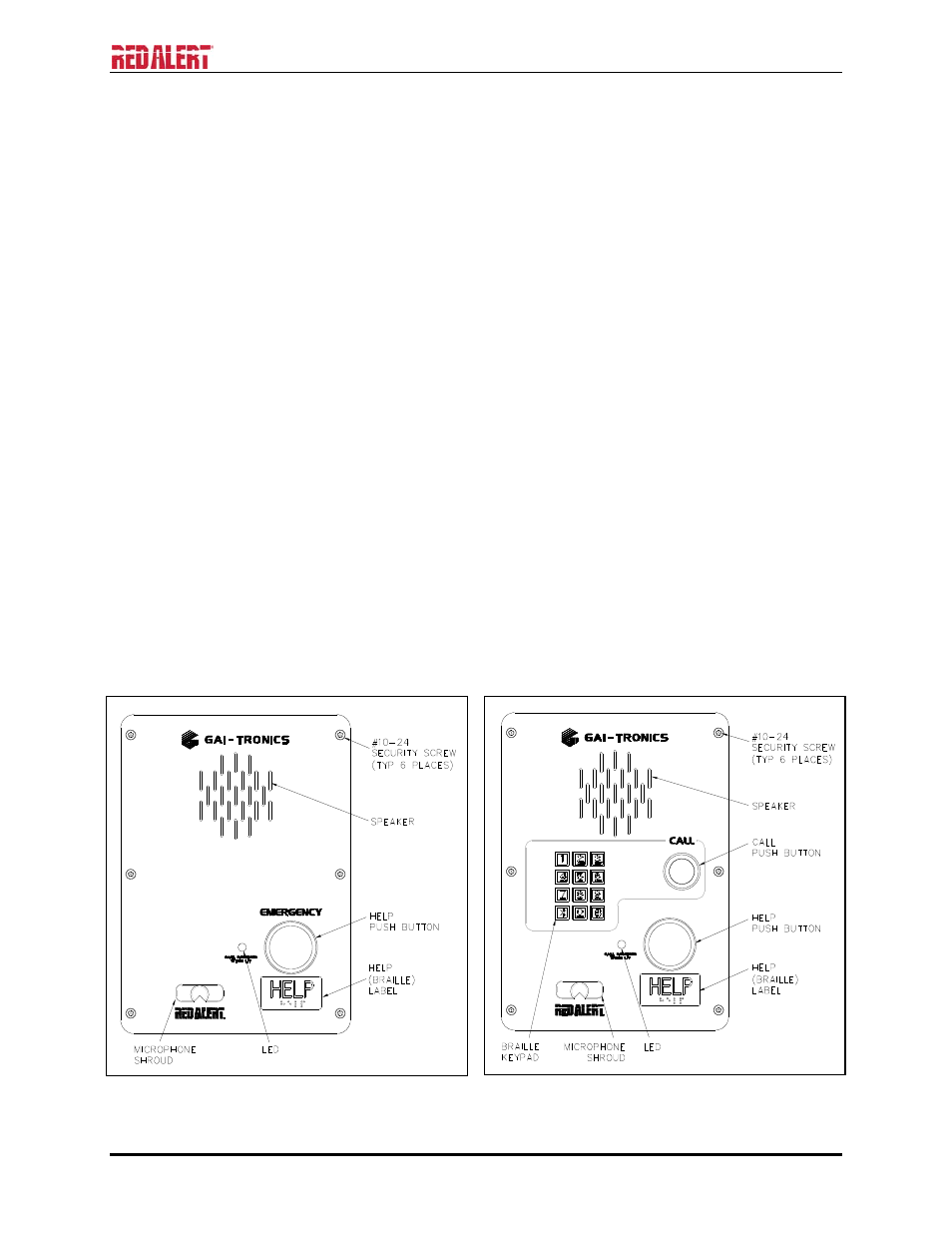

Figure 14. Model 397-00xCB Figure 15. Model 398-00xCB
