Flex Control Network ® , DC20 / DC21 User Manual Page 13
6. SERIAL CHANNEL SETUP
Serial Channel Setup is required after initial installation. This step may be
performed at any other time, as required.
Serial Channel Setup is performed using a computer running an off-the-shelf
web browser such as “Microsoft Internet Explorer” or “Netscape”. Connect
the CAT5 cable from the computer to the same Ethernet hub that the DC20
Device Controller is connected to.
a. After launching the web browser, enter the IP address of the DC20 to be
setup. The DC20 Home Page will be displayed.

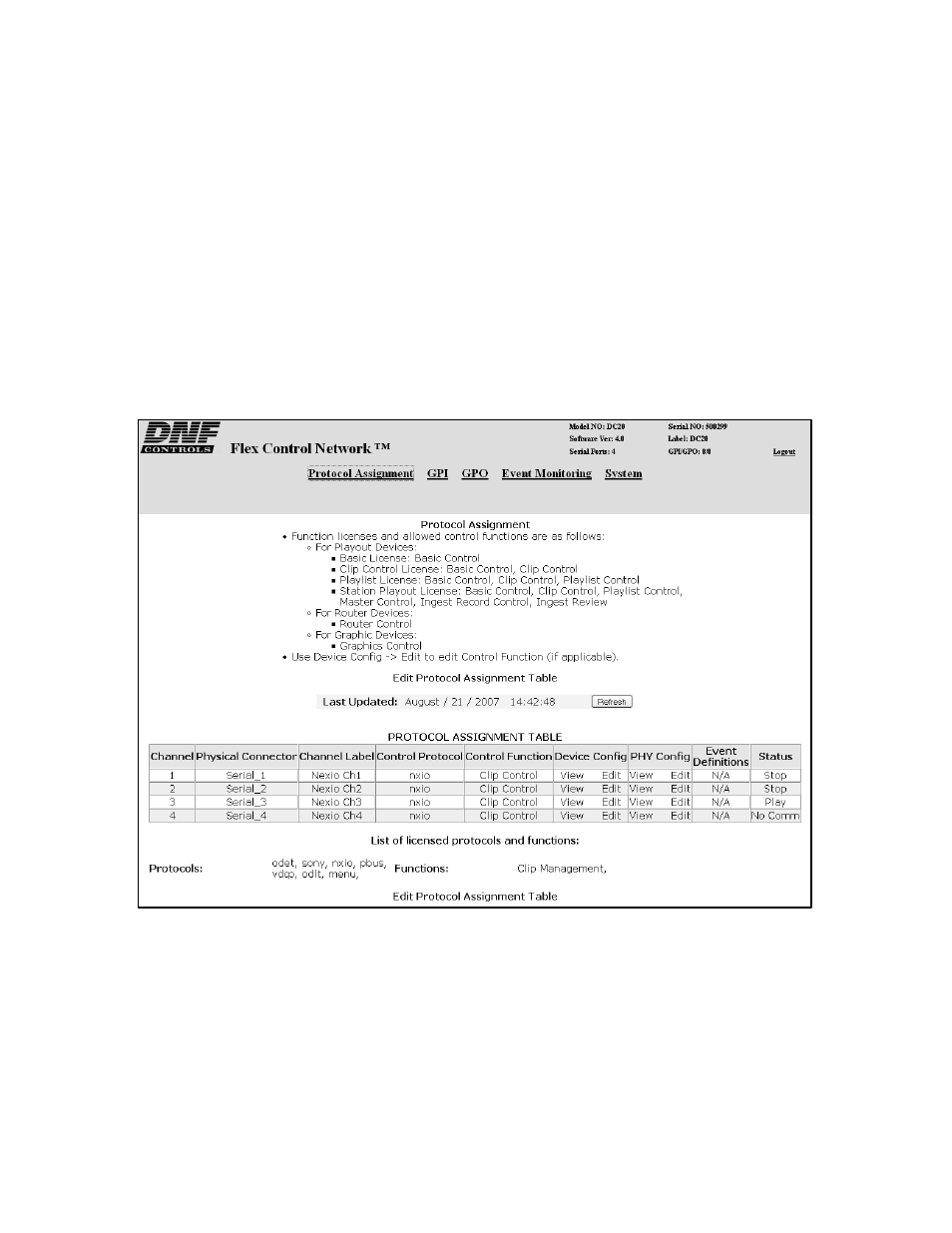

b. Click on the “Protocol Assignment” link at the top of the page. The
Protocol Assignment Table will be displayed.
A. Serial Protocol Assignment
1) Click on “Edit Protocol Assignment Table”. An editable version
of the table will be displayed.
