Hardware Installation

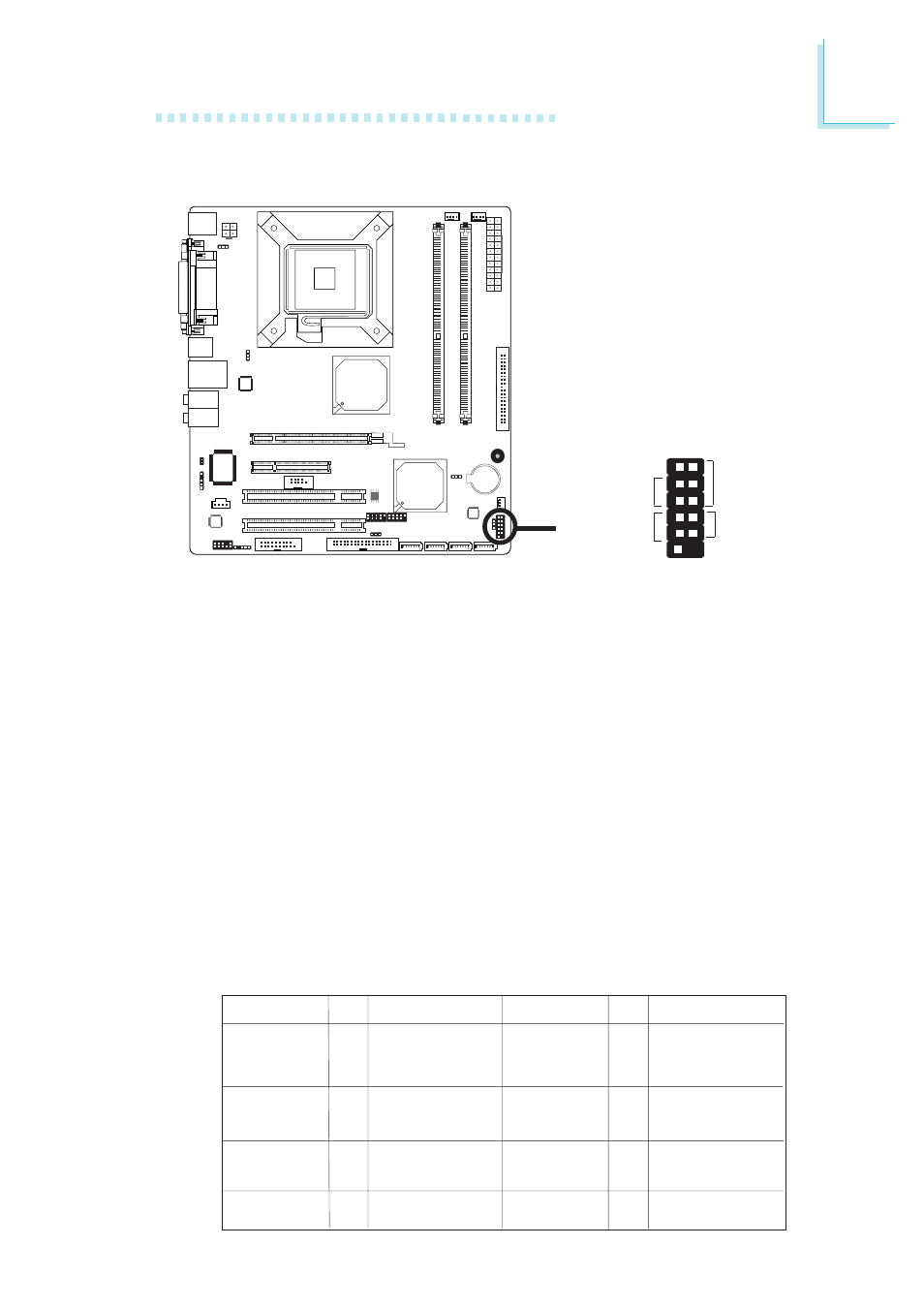

Front Panel Connectors
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the
system.
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system
is in the S1 (POS - Power On Suspend) state, it will blink every
second. When the system is in the S3 (STR - Suspend To RAM)
state, it will blink every 4 seconds.
Pin
1
3
5
7
9
1 1
N. C.
HDD-LED
RESET SW
N. C.
Pin Assignment
N. C.
HDD Power
Signal
Ground
RST Signal
N. C.
Pin
2
4
6
8
1 0
1 2
PWR-LED
PWR-BTN
Key
Pin Assignment
LED Power
LED Power
Signal
3V_DUAL
Signal
Key
X
J14
1 2
1 11 2
HDD-LED
RESET SW
PWR-LED
PWR-BTN
