Hardware Installation

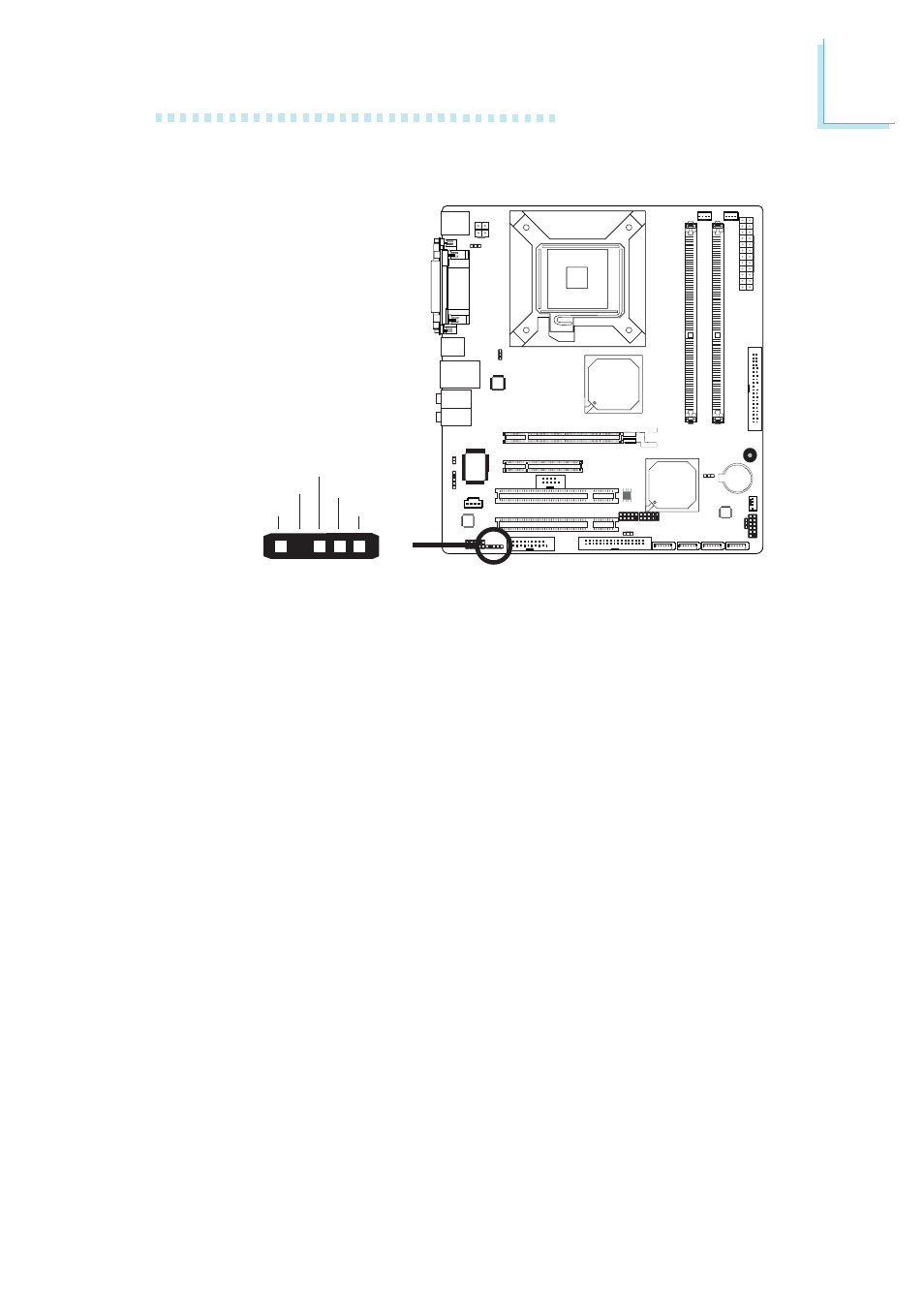

S/PDIF-in/out Connector
The S/PDIF-in/out connector (J5) is used to connect an external
S/PDIF port. Your S/PDIF port may be mounted on a card-edge
bracket. Install the card-edge bracket to an available slot at the rear
of the system chassis then connect the audio cable connector to J5.
Make sure pin 1 of the audio cable connector is aligned with pin 1
of J5.
W
1 5
+5V
Key
SPDIF out
GND
SPDIF in
