Hardware Installation

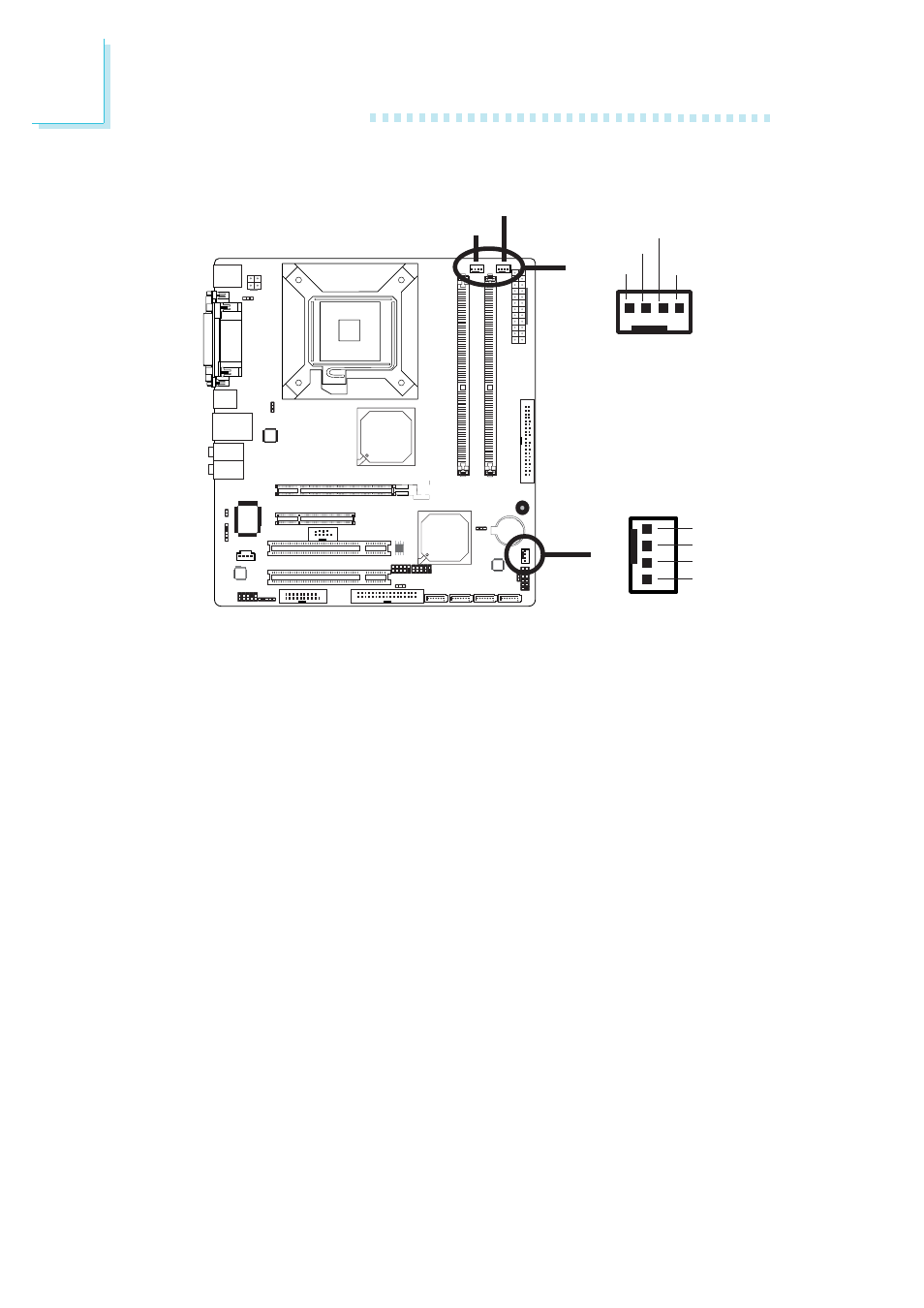

Cooling Fan Connectors
Connect the CPU fan’s cable connector to the CPU fan connector
(J11) on the system board. The system fan connector (J16) and 2nd
fan connector (J12) are used to connect additional cooling fans. The
cooling fans will provide adequate airflow throughout the chassis to
prevent overheating the CPU and system board components.
BIOS Setting
The “PC Health Status” submenu of the BIOS will display the current
speed of the cooling fans. Refer to chapter 3 for more information.
X
X
CPU fan
2nd fan
System fan
4 1
Sense
Power
Ground
Speed
Control
4
1
Sense
Power
Ground
Speed
Control
