38
2
Hardware Installation

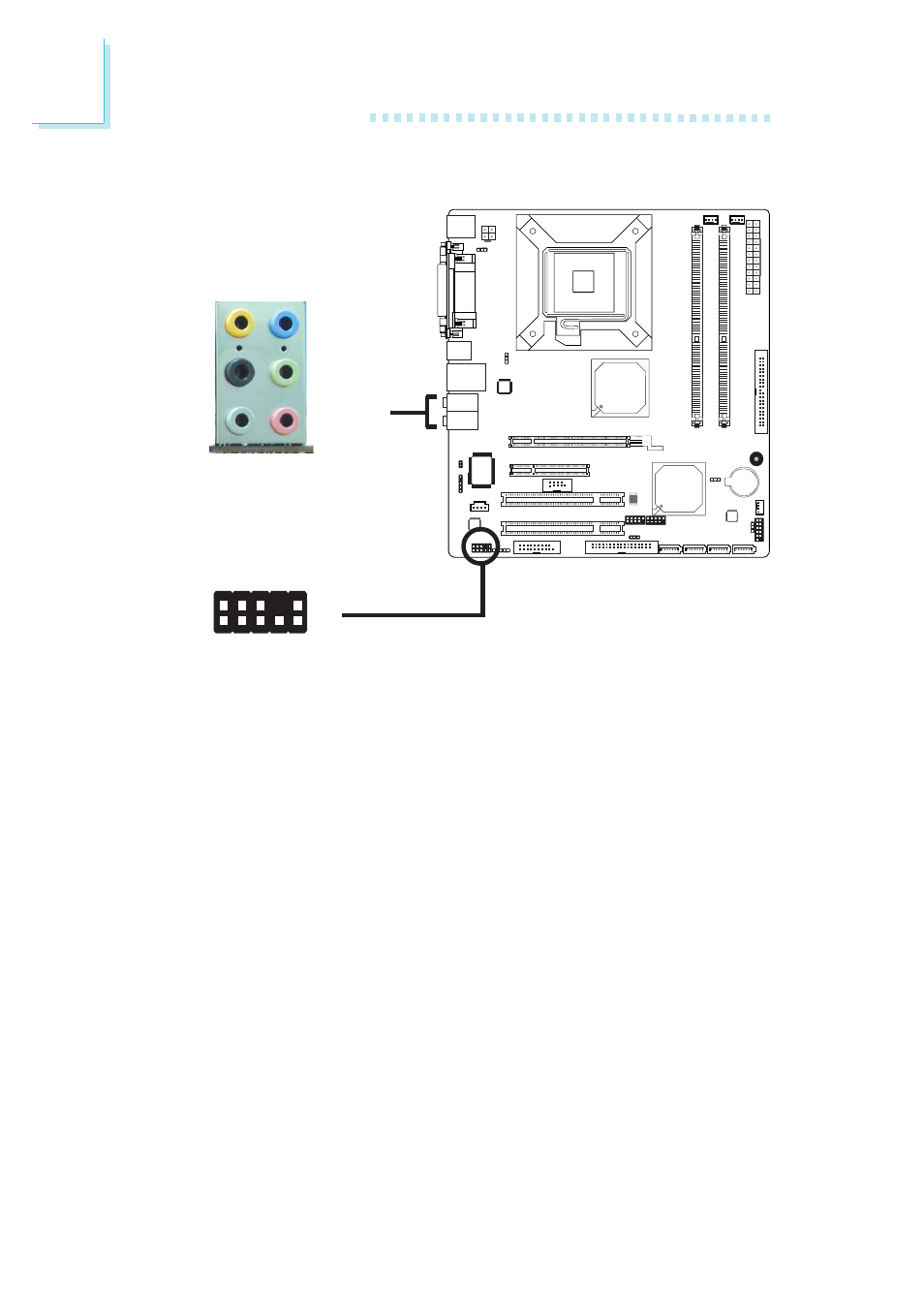

Rear Panel Audio
Center/Subwoofer Jack (Orange)
This jack is used to connect to the center and subwoofer speak-
ers of the audio system.
Rear Right/Left Jack (Black)
This jack is used to connect to the rear right and rear left speak-
ers of the audio system.
Side Right/Left Jack (Gray)
This jack is used to connect to the side left and side right speak-
ers of the audio system.
Line-in (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set,
CD player, tape player, AM/FM radio tuner, synthesizer, etc.
Audio
W
W
Rear audio
Front audio
Front R/L
Line-in
Mic-in
Rear R/L
Center/
Subwoofer
Side R/L
1 0
AuD Jack Detect
1
Mic_L
Mic_R
AuD_R_Out
Front IO Sense
AuD_L_Out
GND FP_HDA Detect Key Mic Jack Detect
9
