Nordic Zone Salad Bar Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
8
Nordic Zone Salad Bar Service and Installation Manual
9
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
LEFT and/or RIGHT HAND of 207” (each side)
Remote
PART NUMBER DESCRIPTION
323457 Control knob ring guard
2194620 Fan safety switch
RTP00013 34” Fluorescent bulb
RTP00034 UCM-8 Fluorescent bulb
RTP00012 2-Bulb fluorescent bulb
3516222 Solenoid valve
5090025 Temperature control
6230110 Plastic insert
RTP00040 Alum hinge
3234645 6” leg
RTP00024 Limitron bussman fuse
RTP00022 Transformer
2190154 Rocker switch (lights, night power)
3234242 Plastic drain
2194345 Timer
3516151 Expansion valve
RTP00009 Evaporator coil
RTP00044 Mirror heater pad
3516172 Fan blade
3516173 Fan guard
2162691 Fan motor
ONE SIDE OF THE 123”
Remote
PART NUMBER DESCRIPTION
323457 Control knob ring guard
2194620 Fan safety switch
RTP00013 34” Fluorescent bulb
RTP00034 UCM-8 Fluorescent bulb
RTP00012 2-Bulb fluorescent bulb
3516222 Solenoid valve
5090025 Temperature control
6230110 Plastic insert
RTP00040 Alum hinge
3234645 6” leg
RTP00024 Limitron bussman fuse
RTP00022 Transformer
2190154 Rocker switch (lights, night power)
3234242 Plastic drain
2194345 Timer
3516151 Expansion valve
RTP00010 Evaporator coil
RTP00044 Mirror heater pad
3516172 Fan blade
3516173 Fan guard
2162691 Fan motor
REPLACEMENT PARTS
AIRTECH FOAM INSULATION
SILICONE ALL
EDGES AFTER
ASSEMBLY
REMOVE BACKING
AND STICK TO
MIRROR BACK - 77
RTP00044
EDGE BAND SIDE
OF MIRRORS ONLY
76 - 3234037
INSTALL .75” ABS STRIP
HANGER IS HOLLOW
74 - RT00034
ASSEMBLE ONTO BACKER
75 - RTP00017
78 - RT000324

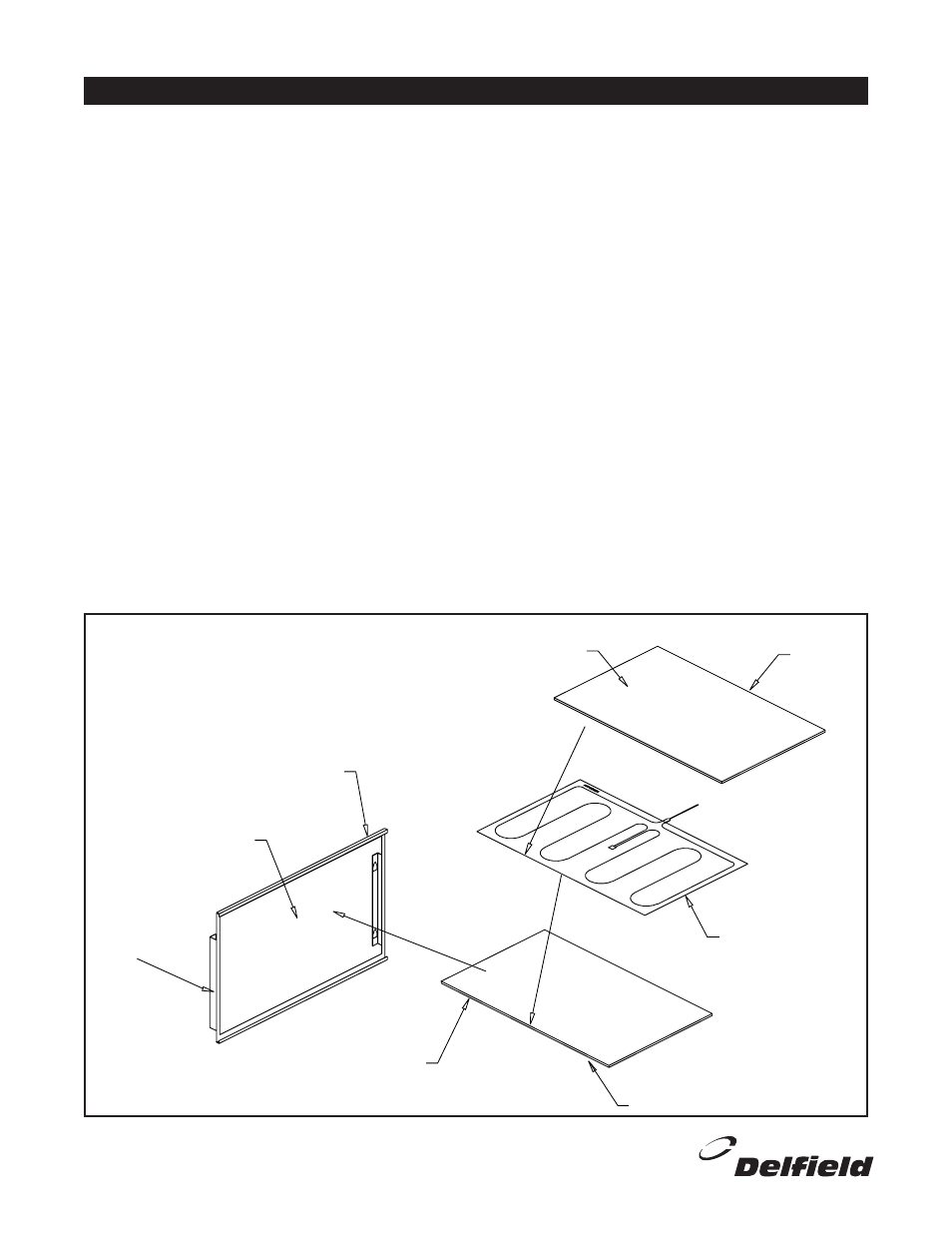

HEATED MIRROR ASSEMBLY
