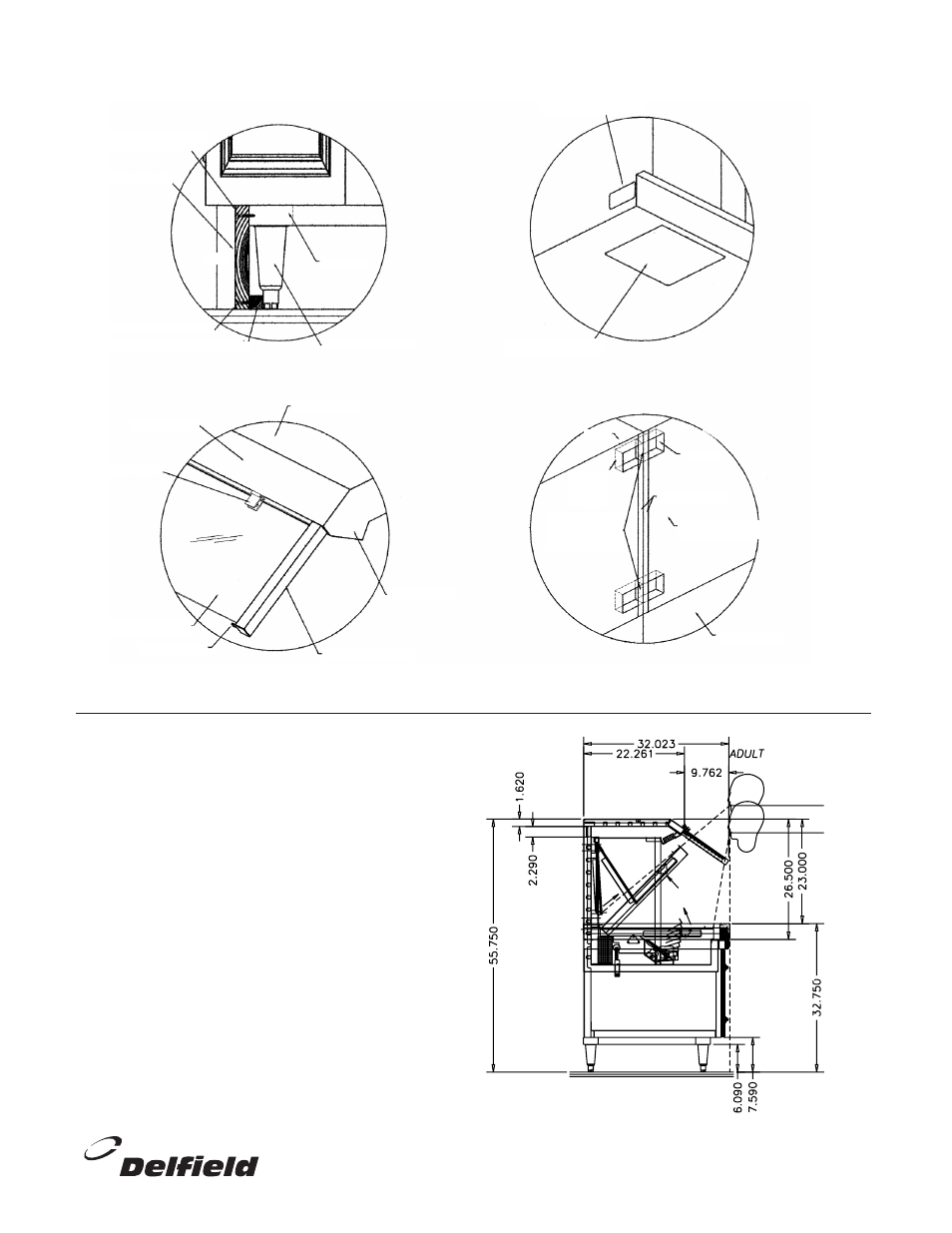

TOE PLATE INSTALLATION DETAIL
LEG SCREW TOE PLATE TO UNIT
LEG RAIL
TOE PLATE BY OTHERS
SCREW TO CLEAT IF USED
OPTIONAL 1” CLEAT FOR STRENGTH TOE PLATE BY OTHERS
LEG RAIL
6.12”
GLASS SNEEZE GUARD DETAIL
LAMINATE FRONT
CLEAR TEMPERED GLASS
SNEEZE GUARD
LAMINATE TOP
1” CHROME HINGE
1/2” GLASS STOP
POWDER COATED ARM
LAMINATE END
REAR SPLINE DETAIL
18 SPLINE
TOP
LAMINATE
FRONT
1” S/S SEAMS
REAR OF UPPER
STRUCTURE
BASE
BOLT SPLINERS
TOGETHER PRIOR TO
PUSHING AGAINST
WALL
ACCESS HOLE DETAIL
HOLE IN SIDE FOR SHARED
REFRIGERATION
HOLE IN SHELF FOR
DRAIN/REF’G
SECTION VIEW
Sneeze shields to be “flip up” style and will be positioned to
meet NSF requirements (1/4” tempered glass)
NOTE: All return air chambers to be constructed of cleanable
approved materials.
