Page 55
Digicast Media Router Serial IP (SIP): CMR-5910 (MG-SIP) & CMR-5920 (MR-SIP)
Revision A
Device Management via User Interfaces - CMR-5920 (MR-SIP)
MN/MDRTRIPDC.IOM
5.2.7 Statistics

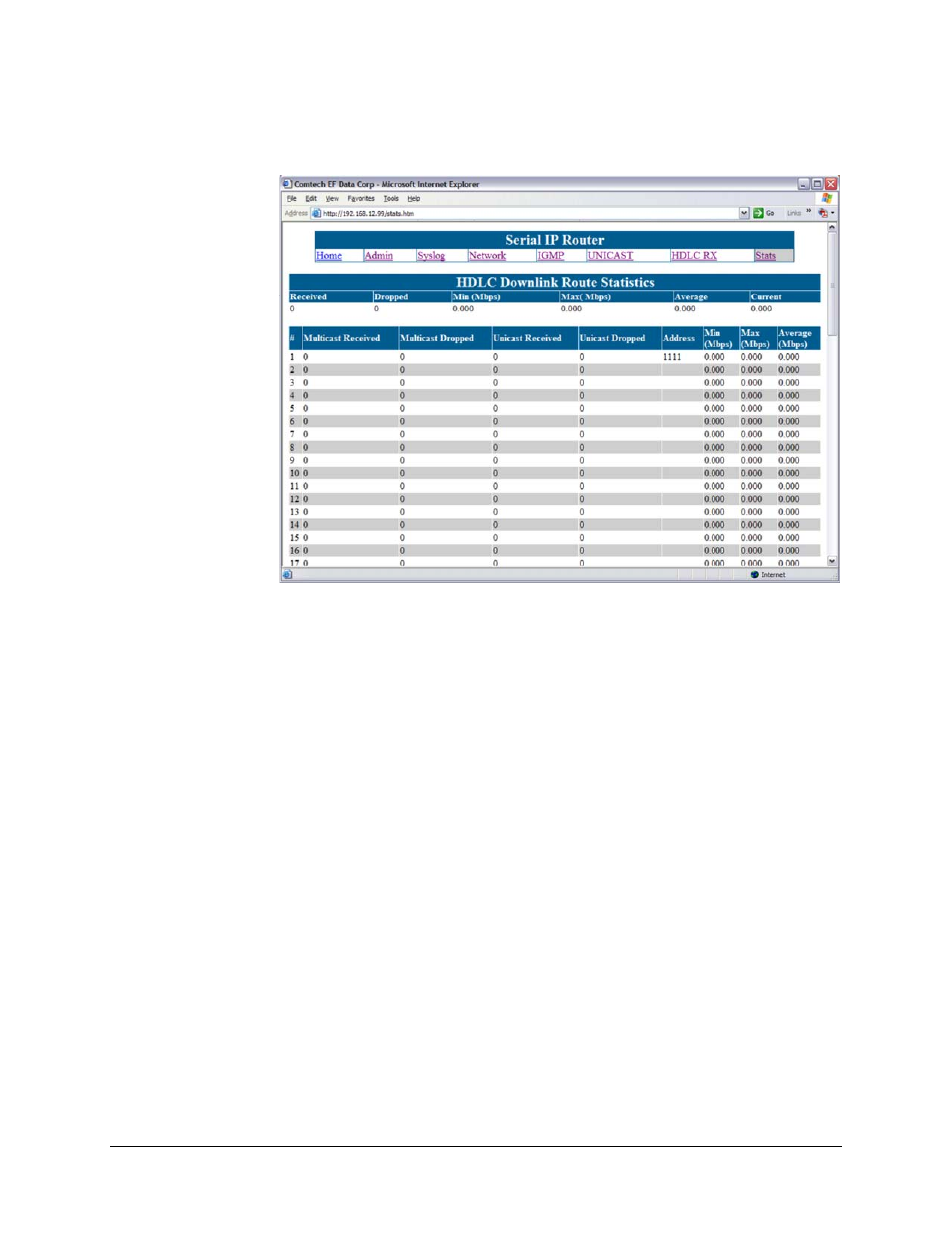

Figure 5-9. HDLC Downlink Route Statistics page
The HDLC Downlink Route Statistics page displays the statistics for all configured
routes. Pressing
Page Up
and
Down
on the keyboard allows the user to scroll up or down
through the configured routes on the MR-SIP.
Multicast / Unicast Received
The number of IP packets received on this route since the statistics were last
cleared.
Multicast / Unicast Dropped
The number of IP packets dropped on this route since the statistics were last
cleared.
Address
The address assigned to the associated route.
Min (Mbps)
The minimum bandwidth received on this route since the statistics were last
cleared.
Max (Mbps)
The maximum bandwidth received on this route since the statistics were last
cleared.
Average (Mbps)
The average bandwidth received on this route.
5-9
