Device Management via User Interfaces - CMR-5910 (MG-SIP) MN/MDRTRIPDC.IOM
4.2.5 (HDLC TX) Route Configuration

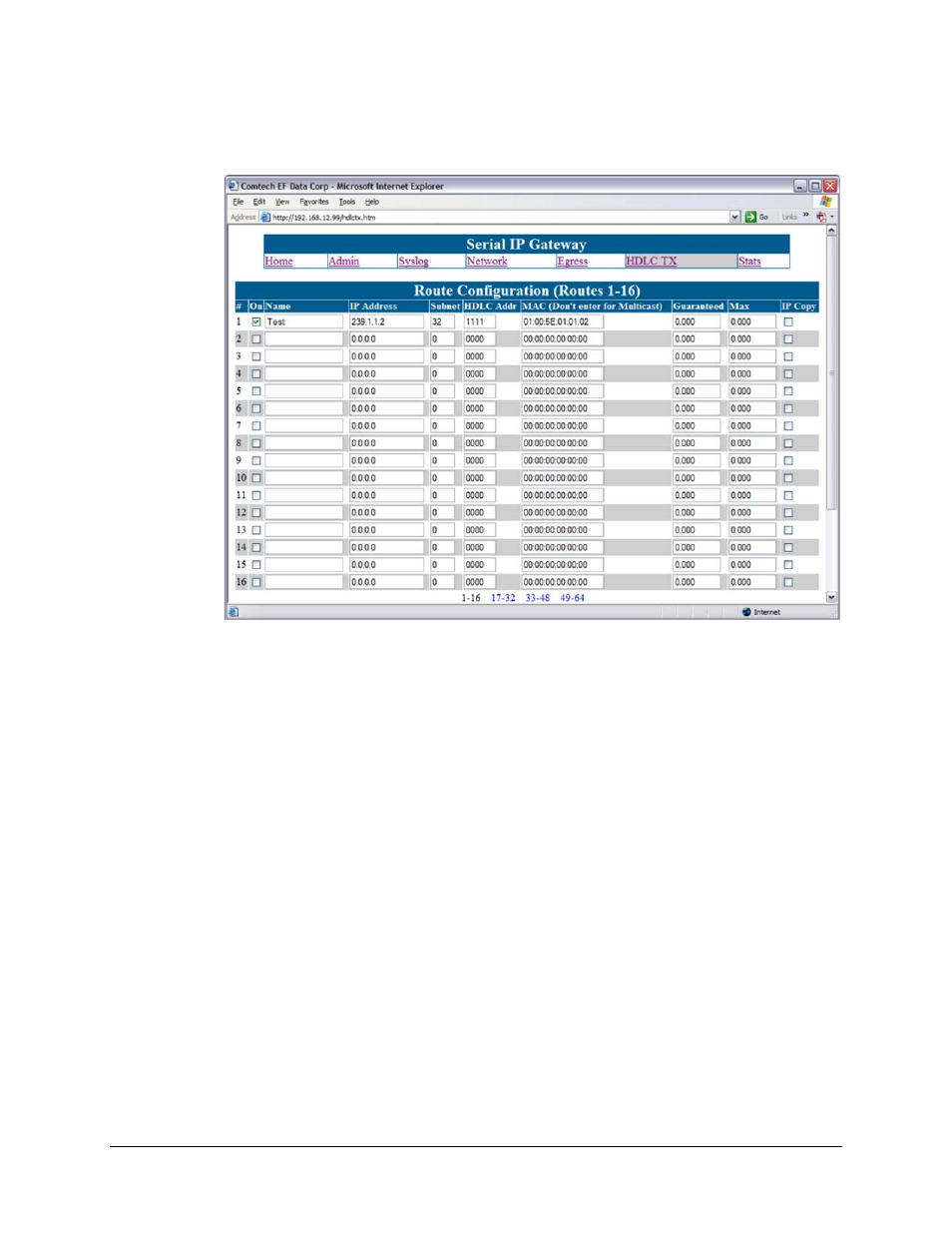

Figure 4-7. (HDLC TX) Route Configuration page
The Route Configuration page supports up to 64 Multicast or Unicast routes.
Page Up
and Page Down allow the user to scroll up or down through the configured routes on the
MG-SIP. Once a route has been added or edited, the Submit button must be pressed to
make the change permanent. An advanced link is present on the page to allow the QoS
parameters to be set.
The MG-SIP has the following configurable parameters:
On
The route is enabled when checked.
Name
The name assigned to a given route.
IP Address
The IP Address assigned to a given route. Note a unicast route will fall within the
range 0.0.0.0 to 223.255.255.255 (excluding broadcast or reserved IP addresses),
and a multicast route will fall within the range of 224.0.0.0 to 239.255.255.255.
Subnet Mask (SM)
The Subnet Mask, or SM, defines the range of IP addresses that will be supported
by a particular route. It is represented by a 32-bit string of 1’s (representing the
network and subnet network ID) followed by 0’s (representing the host ID). This
